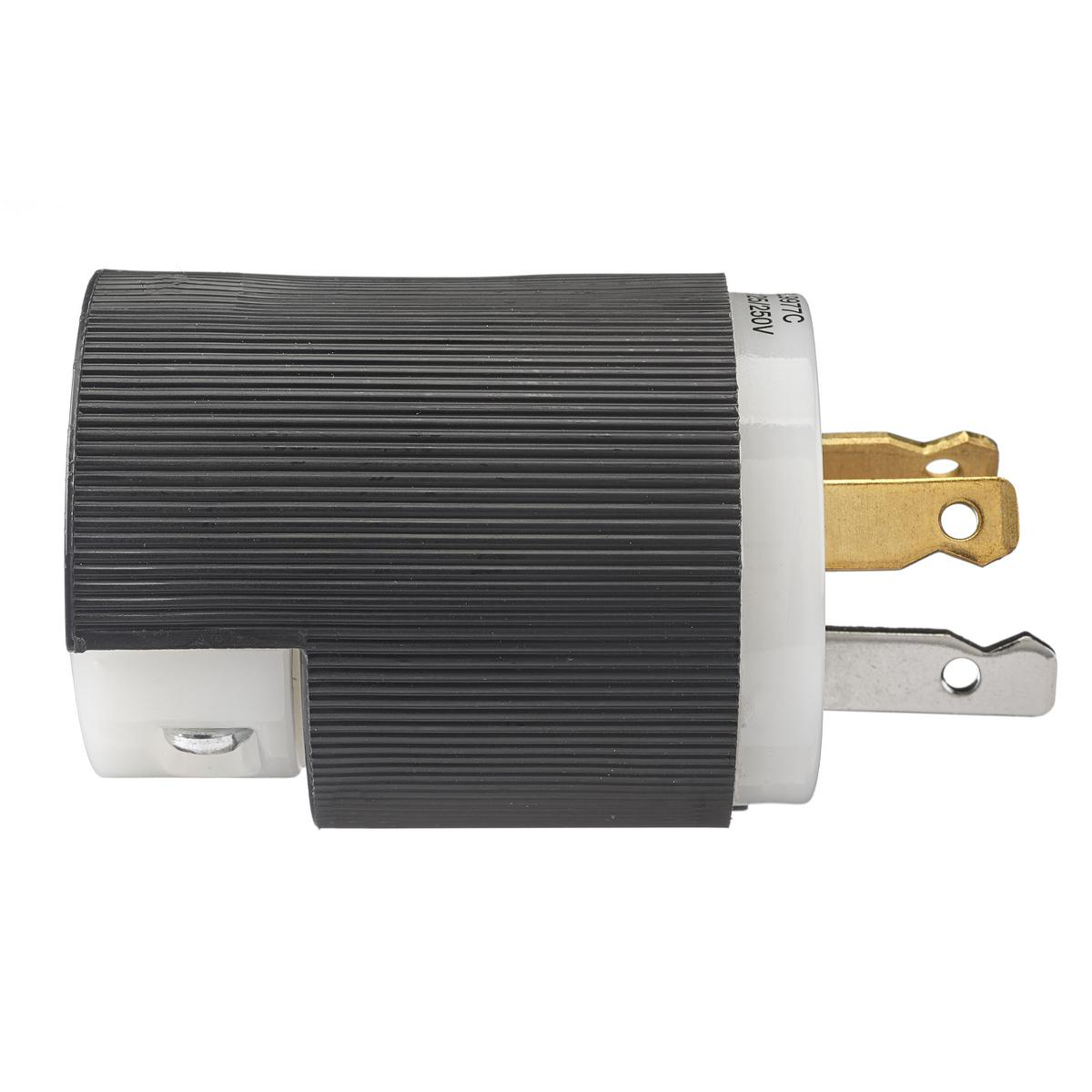

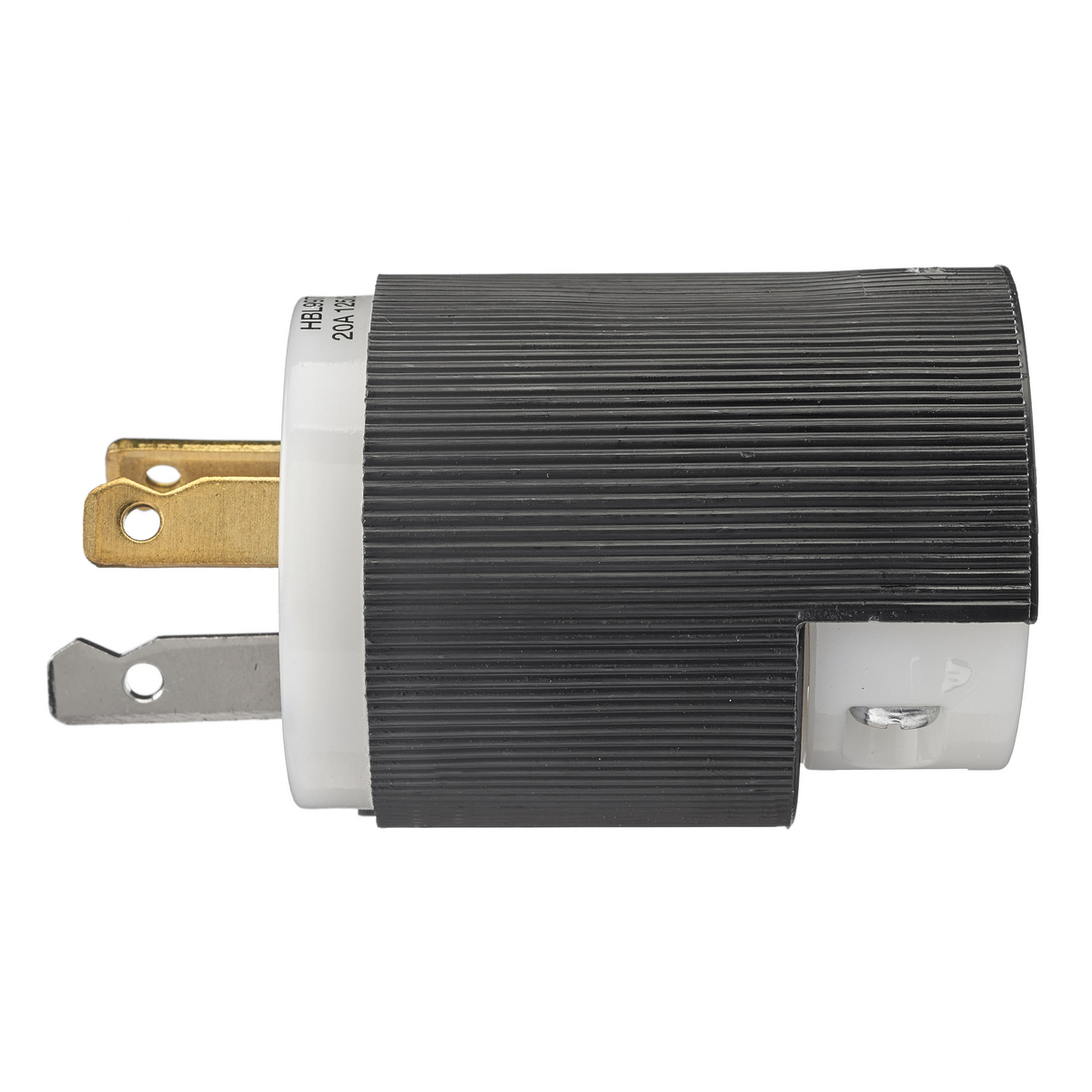

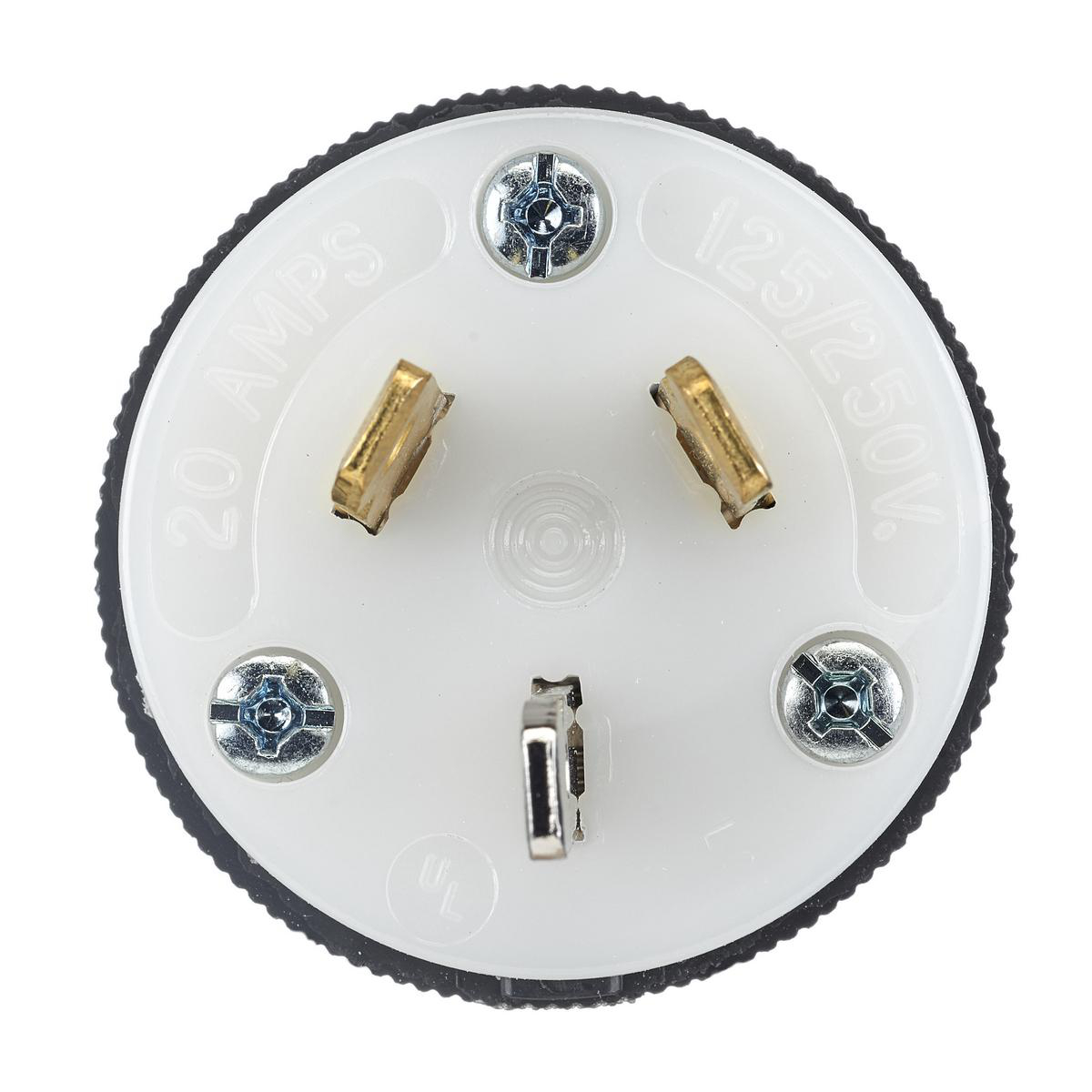

Product image for PLUG, 20A 125/250V, 10-20P, SB
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

PLUG, 20A 125/250V, 10-20P, SB

Manufacturer: Bryant Wiring Device | Catalog # 9151N | Electrozad South Part # 416226
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non-Grounding, 20A 125/250V, 10-20P, White, Single Pack

Technical Information

Amperage
20 A
Applications
Heavy Duty
Cord Type
All Portable
Current
20 A
Material
Composite
NEMA
10-20P
Number of Phases
1
Number of Poles
3,3
Number of Wires
3,3
Size
Standard Sized
Style
Heavy Duty
TC Connection
Screw Terminals
Type
Standard
Voltage
250 V
Wattage
5000 W
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Bryant

General Product Info

12-Digit UPC
781786631403
Color
Black,White
GTIN
00781786631403
Product Series
Industrial
Product UPC
78178663140
Weight
0.25 lb

Dimensions

Height
2.418 in
Length
2.50 in
Width
1.31 in

Certifications & Compliance

Country of Origin
Puerto Rico
Overview
  • 20A 125/250V
  • Straight
  • Industrial/Commercial Grade
  • Heavy Duty
  • 3-Pole 3-Wire Non-Grounding
