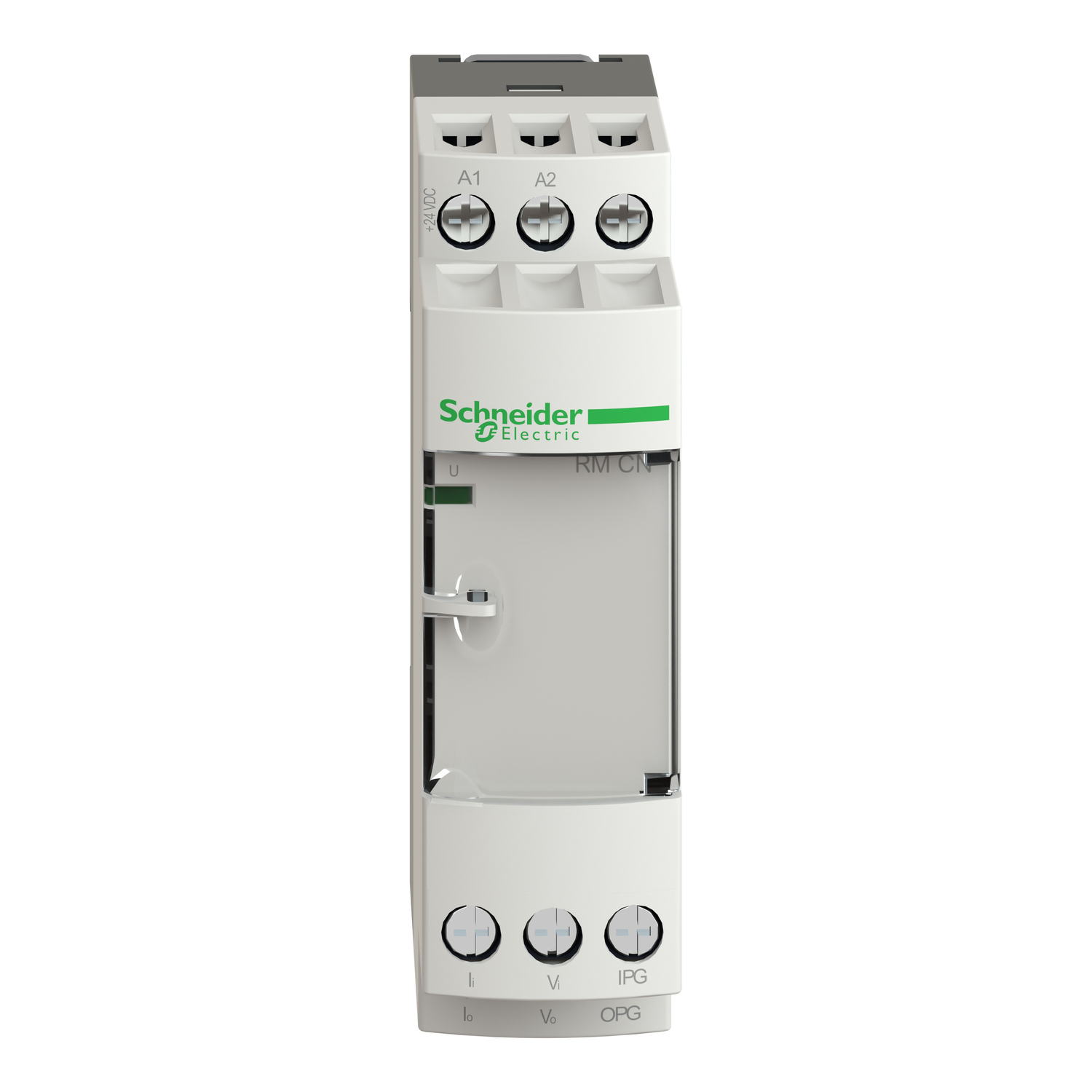

ISOLATED ANALOG CONVERTER, HARMONY ANALOG, 0...10V OR 4...20MA TO 0...10V OR 4...20MA

Manufacturer: Schneider | Square D | Catalog # RMCN22BD | Electrozad South Part # 415649
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This voltage/current converter is part of the range of Harmony Analog interfaces. This cost effective converter converts a 0 to 10 V signal to a 4 to 20mA signal or vice versa. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Current
40 mA
Enclosure
IP50
Net Weight
0.12 kg
Operating Temperature
0-50 degrees C Mounting Side By Side || 0-60 degrees C 2 Cm Spacing
Output
-15...0 V NO INPUT OR INPUT WIRE BROKEN,4-30 MA NO INPUT OR INPUT WIRE BROKEN,CURRENT 4...20 MA <= 500 OHM BY CABLING-VOLTAGE 0...10 V >= 100 KOHM BY CABLING
Power Supply
24 V DC
Standard
IEC 60584-1,IEC 60947-1
Storage Temperature
-40-85 degrees C
Temperature Rating
32 to 140 F
Type
Voltage/current converter

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZELIO

General Product Info

12-Digit UPC
389110108906
GTIN
03389110108903
Weight
0.12 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,GL,UL
Country of Origin
USA
