YSR6CFX10CLTCKITC

Manufacturer: Burndy | Catalog # YSR6CFX10CLTCKITC | Electrozad South Part # 414638
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual Technical Drawing

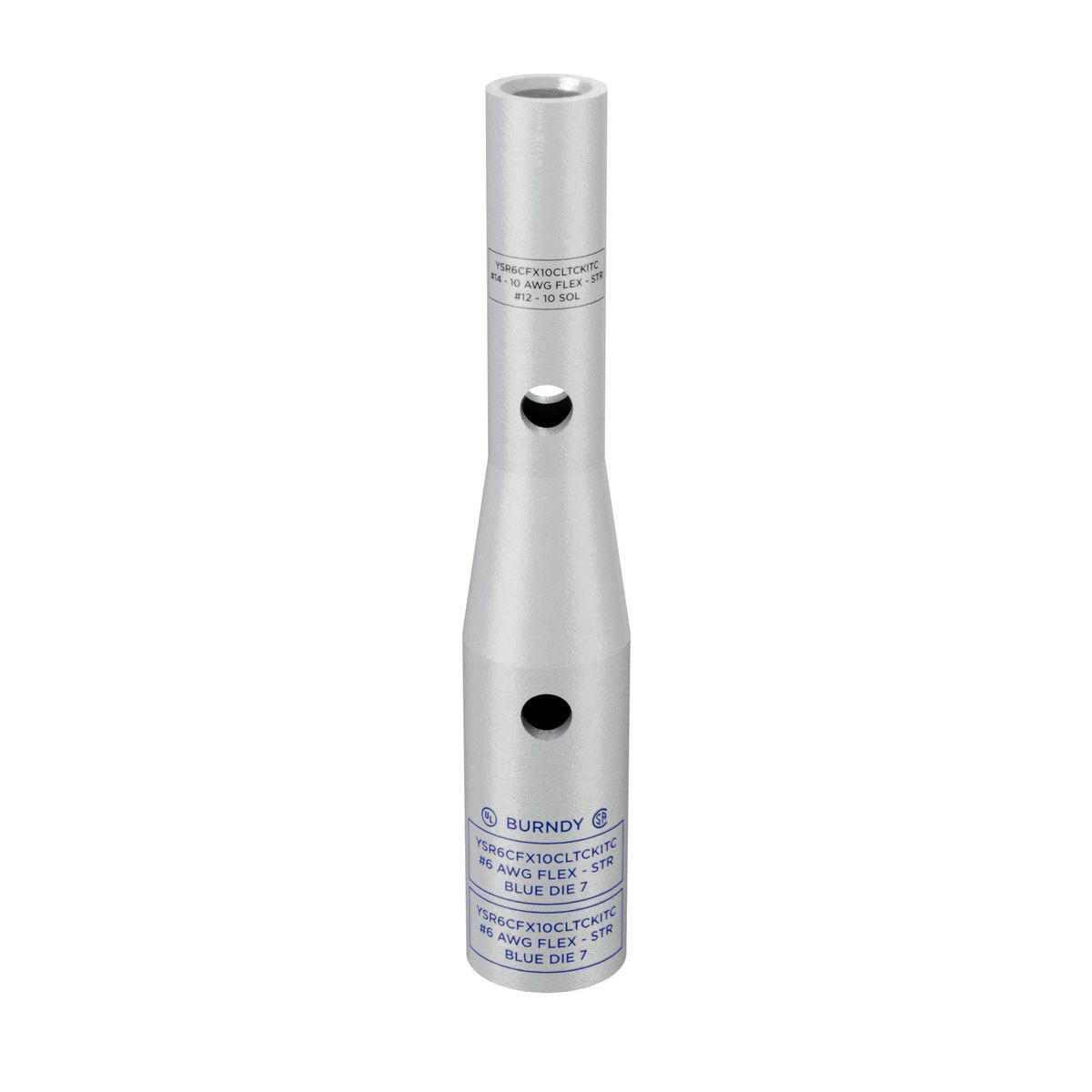

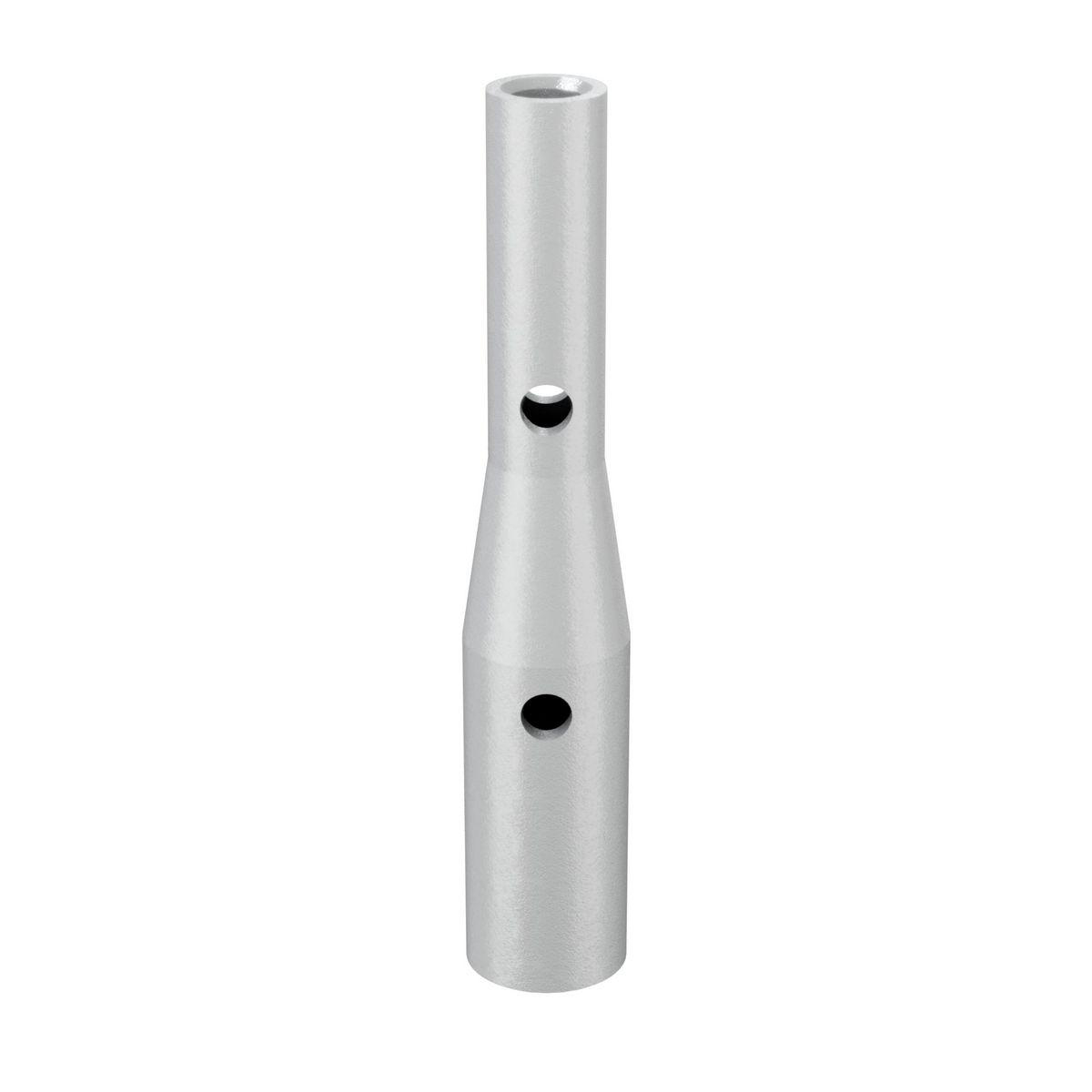

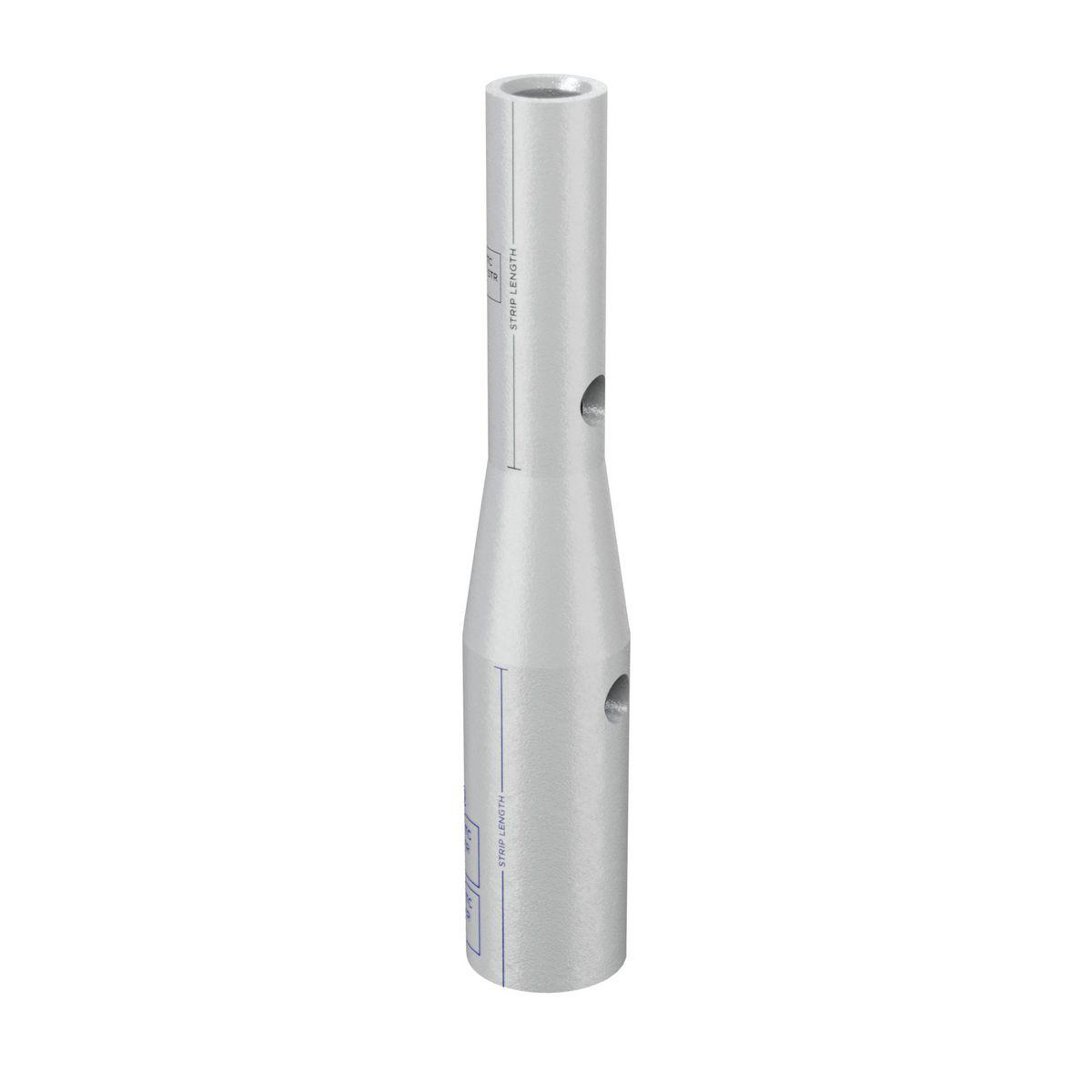

Compression CU Reducer/Splice kit, W/InspWindow, Barrel A: #6 AWG (Flex-Str) Barrel B: #10 AWG (Str), Standard Barrel, Electro-Tin Plated

Technical Information

Color Coding
Blue
Connection Type
Reducer;Splice
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Burndy

General Product Info

12-Digit UPC
781810473962
Finish
Tin-Plated,Tin-Plated
GTIN
00781810473962

Dimensions

Height
0.21 in
Length
1.53 in
Overall Length
1.53 in
Width
0.31 in

Certifications & Compliance

Country of Origin
USA
CSA
No
Overview
  • Connectors clearly marked with color coding
  • Barrel is designed with a taper to accommodate a main run wire that is reduced to a smaller tap wire
  • Each splice kit includes one YSR-TC compression in-line splice reducer connector and heat shrink
  • Designed configurations allow for copper code-to-code wire connections, copper code-to-flex wire connections, and copper flex-to-flex wire connections
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
