NM SLOPED DISC, 60A UNFUSED, 4X, HBLAC1

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS60AC | Electrozad South Part # 413647
$994.27 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual Technical Drawing Manufacturer Warranty

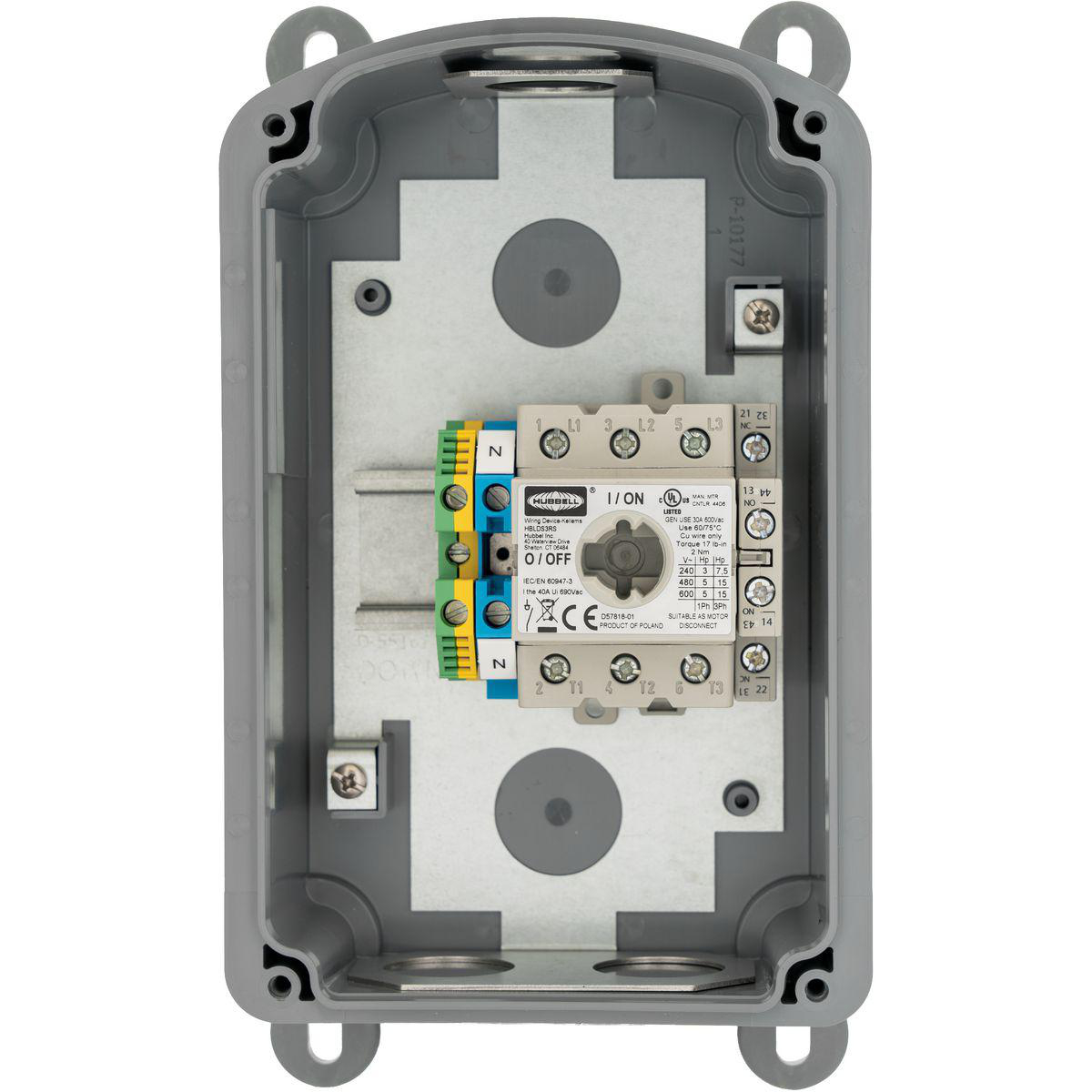

Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
60 A
Horsepower
50 hp
Hub Size
1/4 in
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763231
Color
Gray
GTIN
00783585763231
Product UPC
78358576323
Shape
Rounded Top
Weight
3.363 lb

Dimensions

Height
5.94 in
Width
8.750 in

Certifications & Compliance

Country of Origin
Poland
Overview
  • Product rating are permanently laser-marked and will not wash off
  • Factory installed HBLAC1 auxiliary contact is \"Break After Main Break\", 1 set of N/O contacts, 1 set of N/C contacts
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
