NM TF SLOPED DISC,UN-F,30A, 4X, LED, JOG

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS30TPJ | Electrozad South Part # 413629
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual Manufacturer Warranty

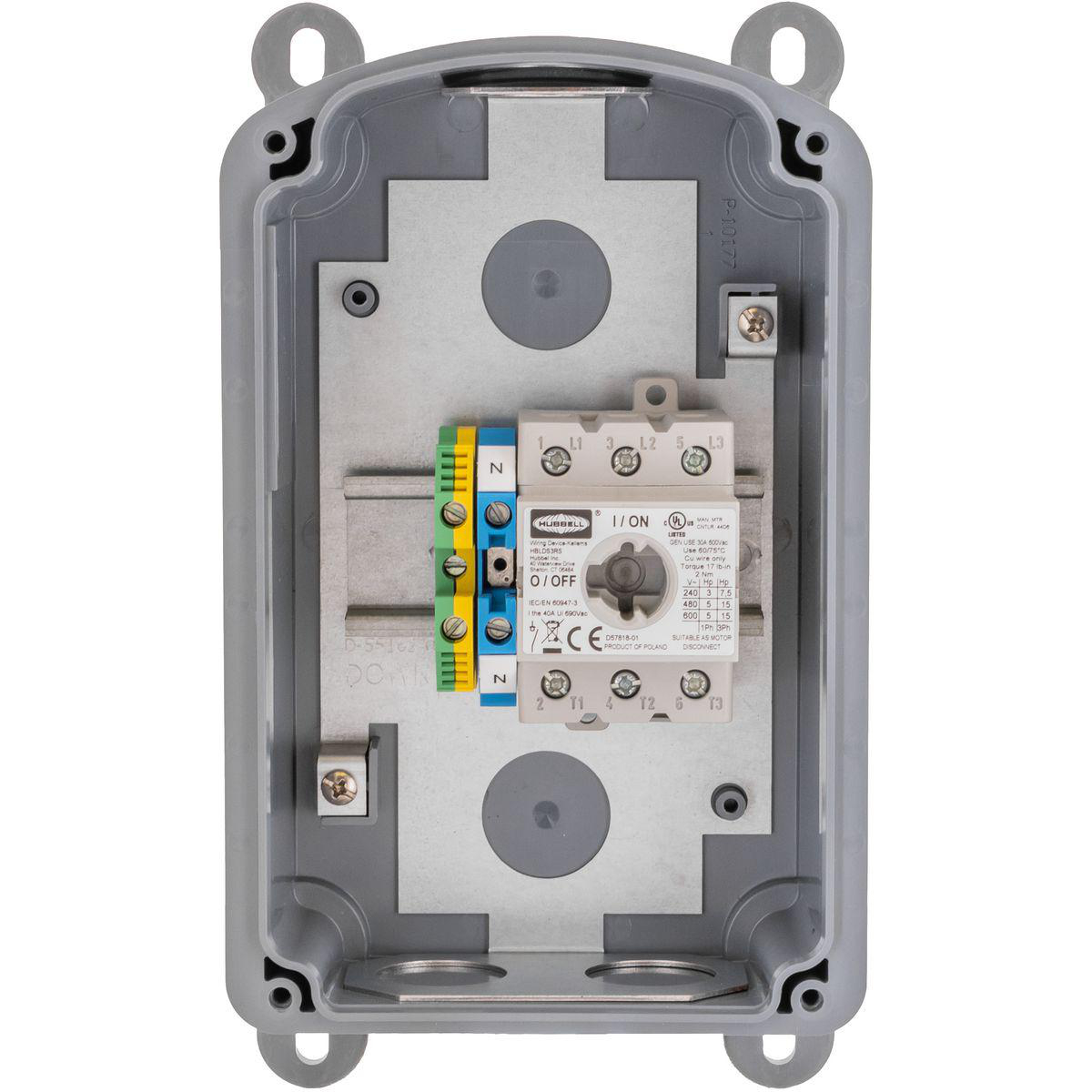

Industrial Grade, Motor Disconnect,Unfused,3 Pole, 30A 600V AC,Screw Terminals, IP69k,NEMA Type 4X,12 Non-Metallic Sloped Top Enclosure for Top Feed Applications, inTOUCH Installation Free LED Phase Indication,Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 A
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763552
Color
Gray
GTIN
00783585763552
Product UPC
78358576355
Shape
Rounded Top
Weight
2.9 lb

Dimensions

Height
4.12 in
Width
5.5 in

Certifications & Compliance

Country of Origin
Poland
Overview
  • Product rating are permanently laser-marked and will not wash off
  • Six highly visible integral phase identification LEDs for use on 3 Phase Y or Delta systems provide secondary means of visual confirmation of make/break on all phases
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure has a single flat for top feed applications and supports best practices in hygienic design by shedding dirt and debris
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
