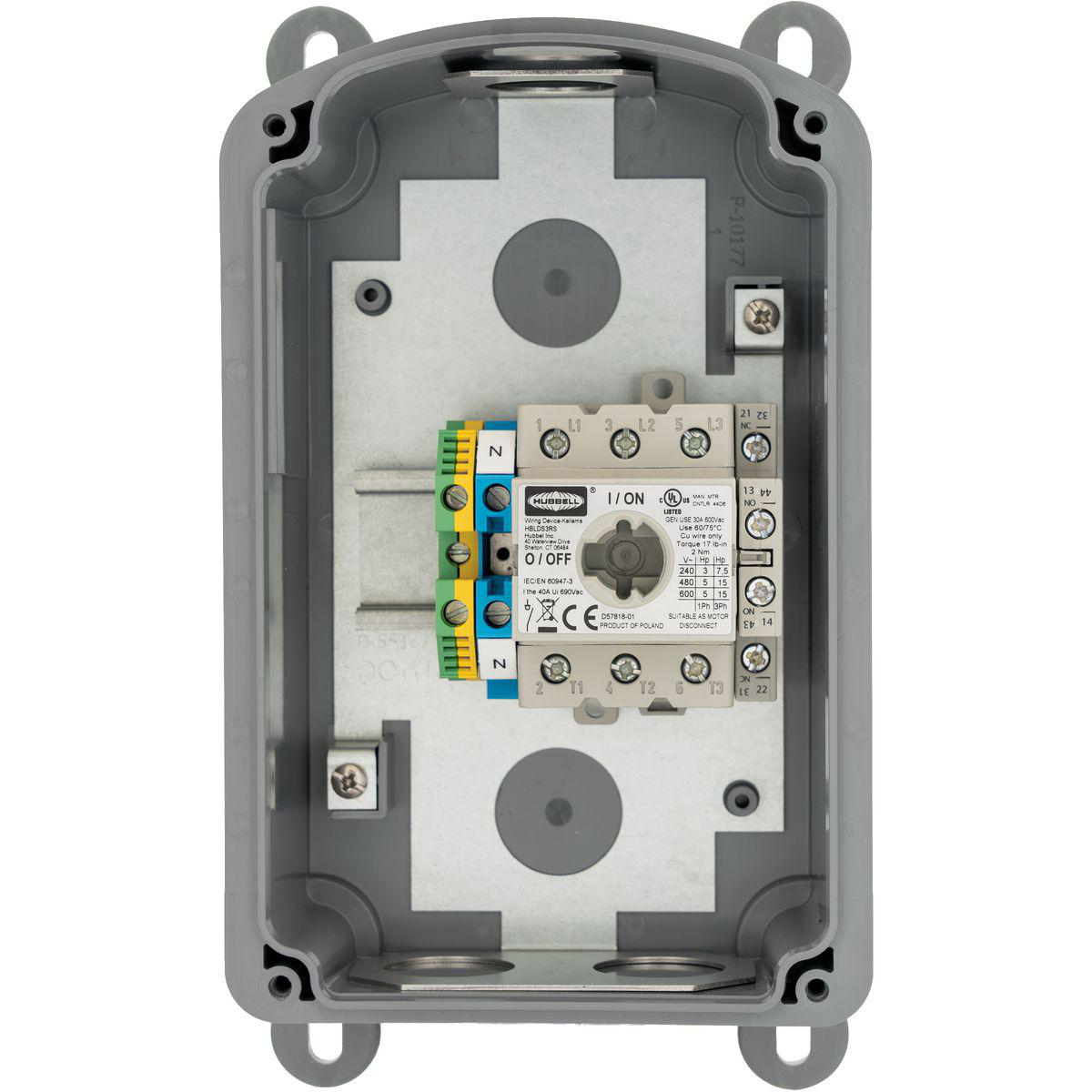

Product image for NM SLOPED DISC,30A UNFUSED,4X,W/AC,NO KO
Image thumbnail 0
Image thumbnail 1
To:
CC:

NM SLOPED DISC,30A UNFUSED,4X,W/AC,NO KO

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS30ACNK | Electrozad South Part # 413607
$704.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual Manufacturer Warranty
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, Aux Contact, No KO, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
30 A
Horsepower
15 hp
Hub Size
3/4 in
Wire Size
14 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763040
Color
Gray
GTIN
00783585763040
Product UPC
78358576304
Shape
Rounded Top
Weight
2.8 lb

Dimensions

Height
4.12 in
Width
5.5 in

Certifications & Compliance

Country of Origin
Poland
Overview
  • Product rating are permanently laser-marked and will not wash off
  • Factory installed HBLAC1 auxiliary contact is \"Break After Main Break\", 1 set of N/O contacts, 1 set of N/C contacts
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
