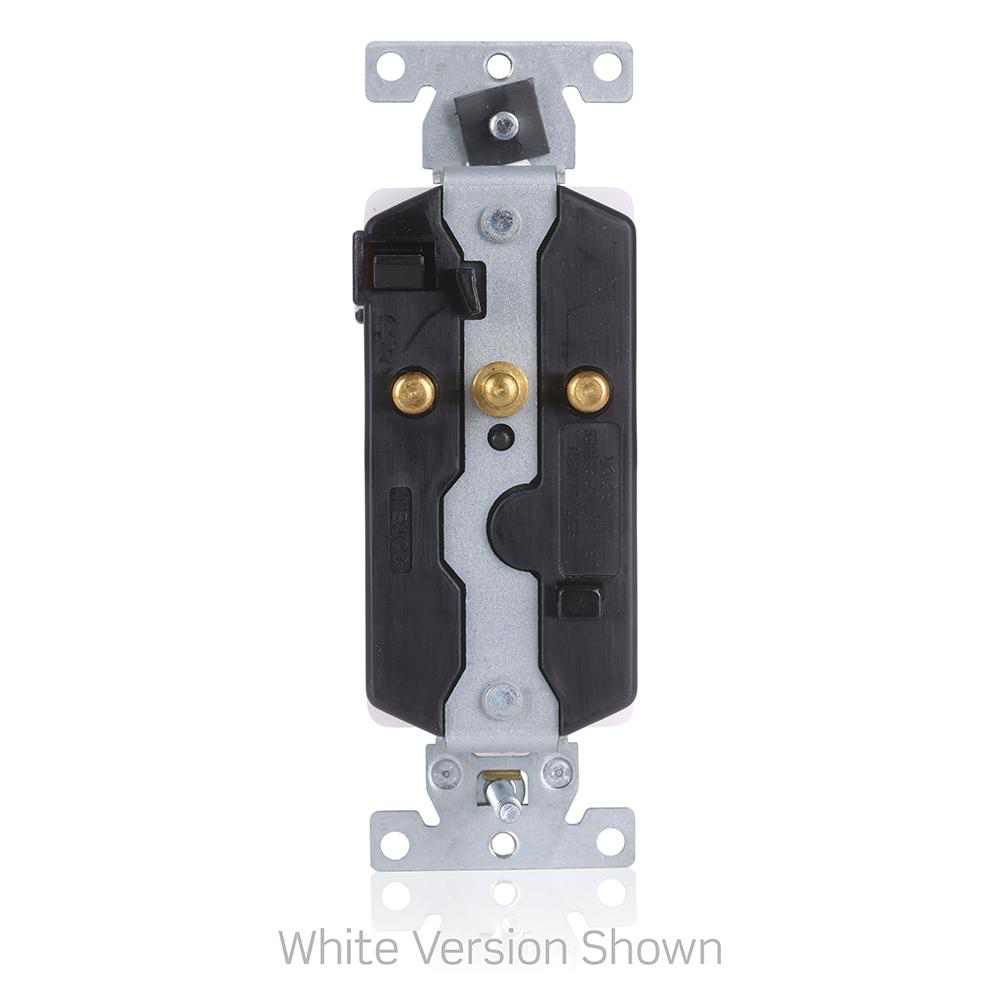

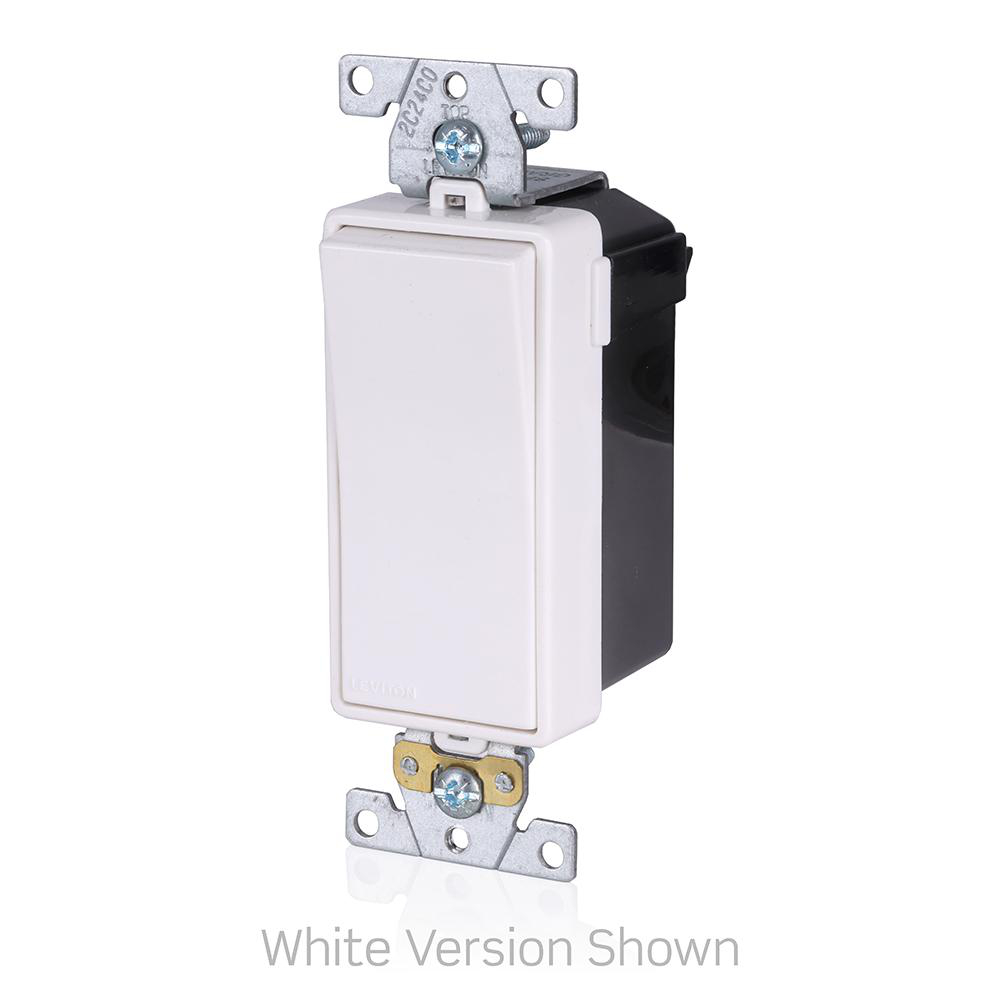

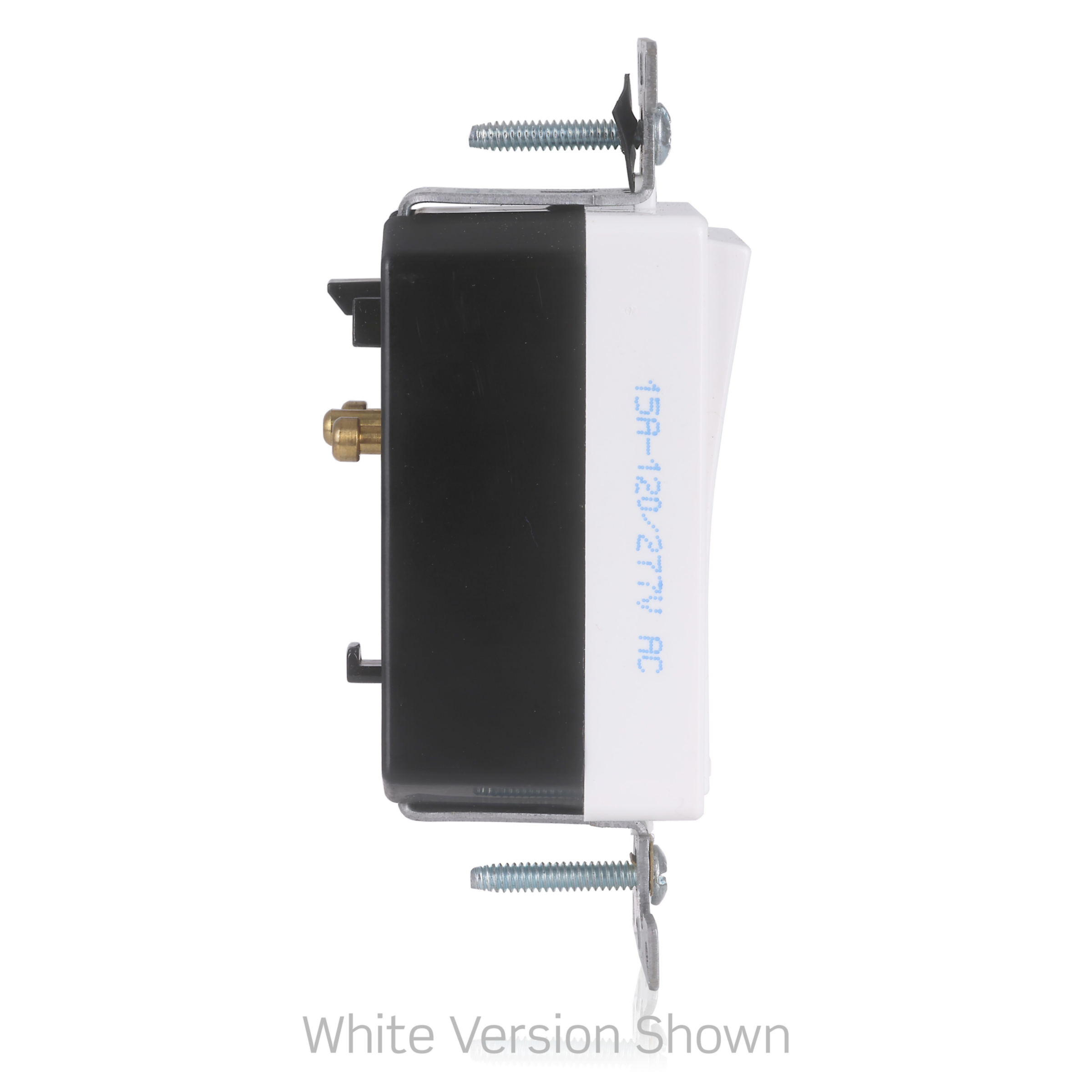

Lev-Lok Decora Plus Single Pole Rocker Switch

Manufacturer: Leviton Manufacturing | Catalog # M5691-W | Electrozad South Part # 413130
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Lev-Lok Decora Plus Single-Pole Rocker Switch, Heavy-Duty Industrial Specification Grade, 15 Amp, 120/277 Volt AC, Modular, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use

Technical Information

Amperage
15 A
Applications
Commercial
Base Material
Nylon,Nylon
Contact Material
Silver-Alloy
Device Type
Rocker Switch
Dielectric
1500 V
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1/2 hp
Operating Temperature
-40 degrees C
Standard
ANSI C-73,CSA C22.2 No. 111,UL20
Temperature Rise
30 degrees C
Termination Type
Modular
Type
Switches

Manufacturer Information

Brand
Leviton
Sub Brand
LEV LOK SWITCHES

General Product Info

12-Digit UPC
078477495377
Color
White
GTIN
00078477495377

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus
Country of Origin
Mexico
