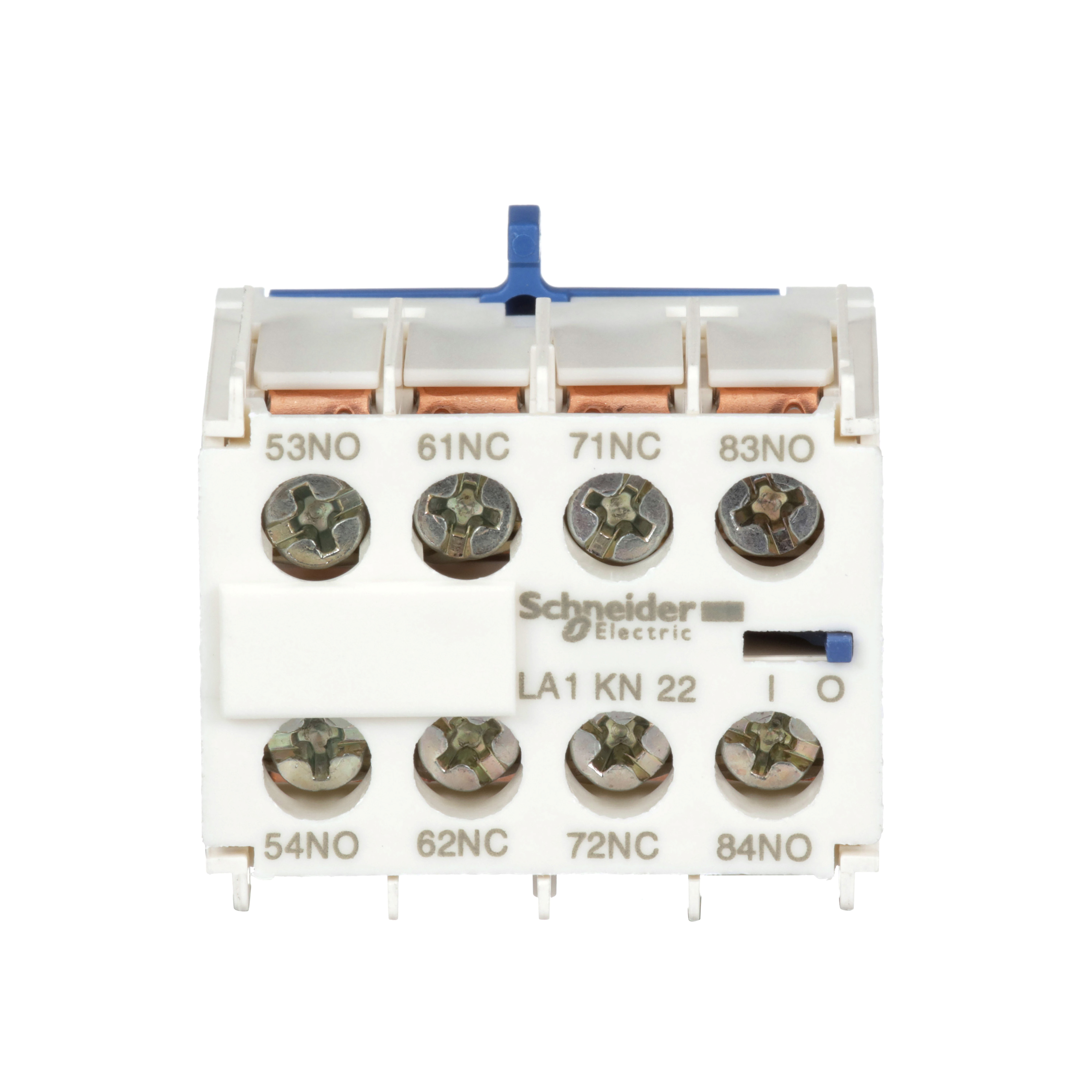

Image thumbnail 1

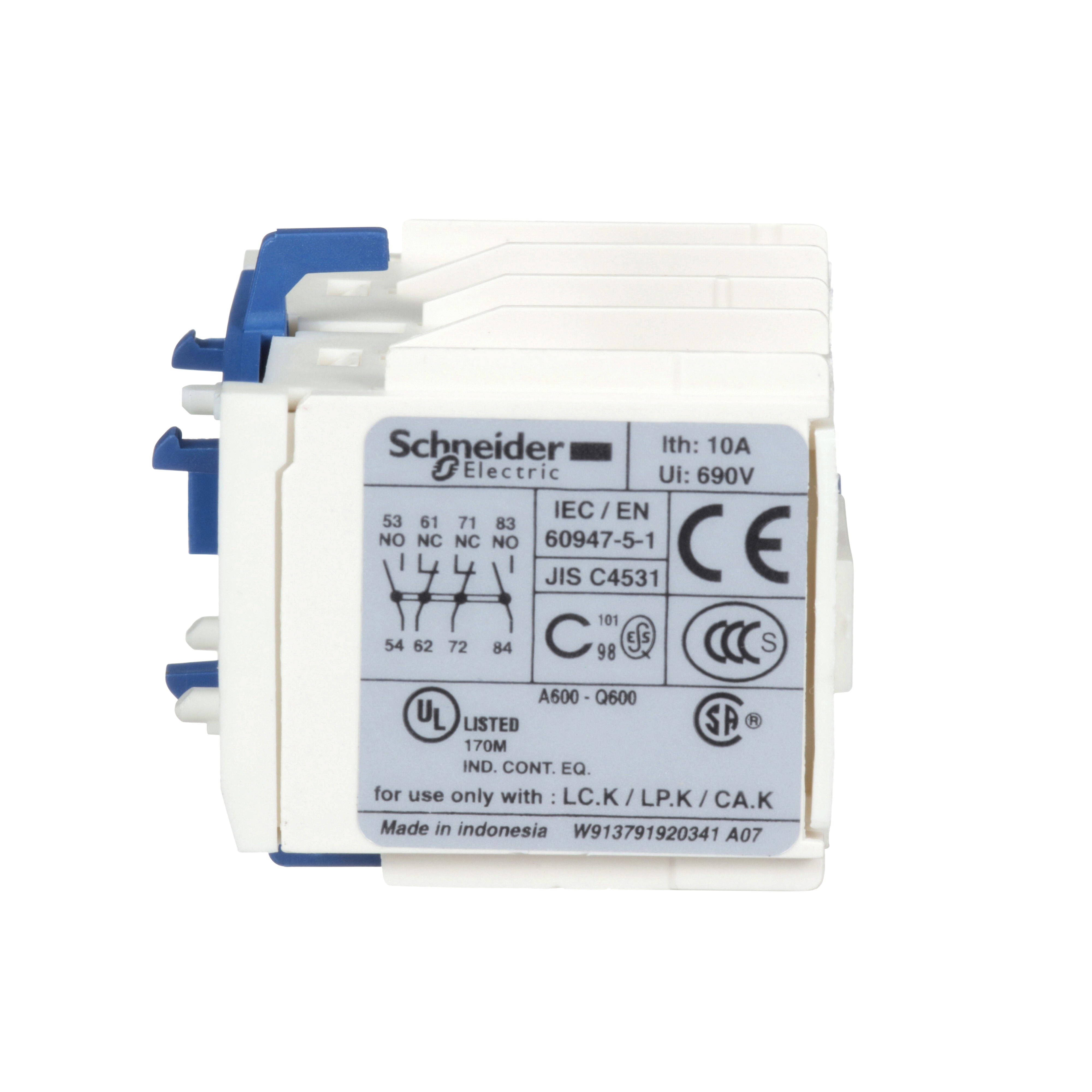

Image thumbnail 2

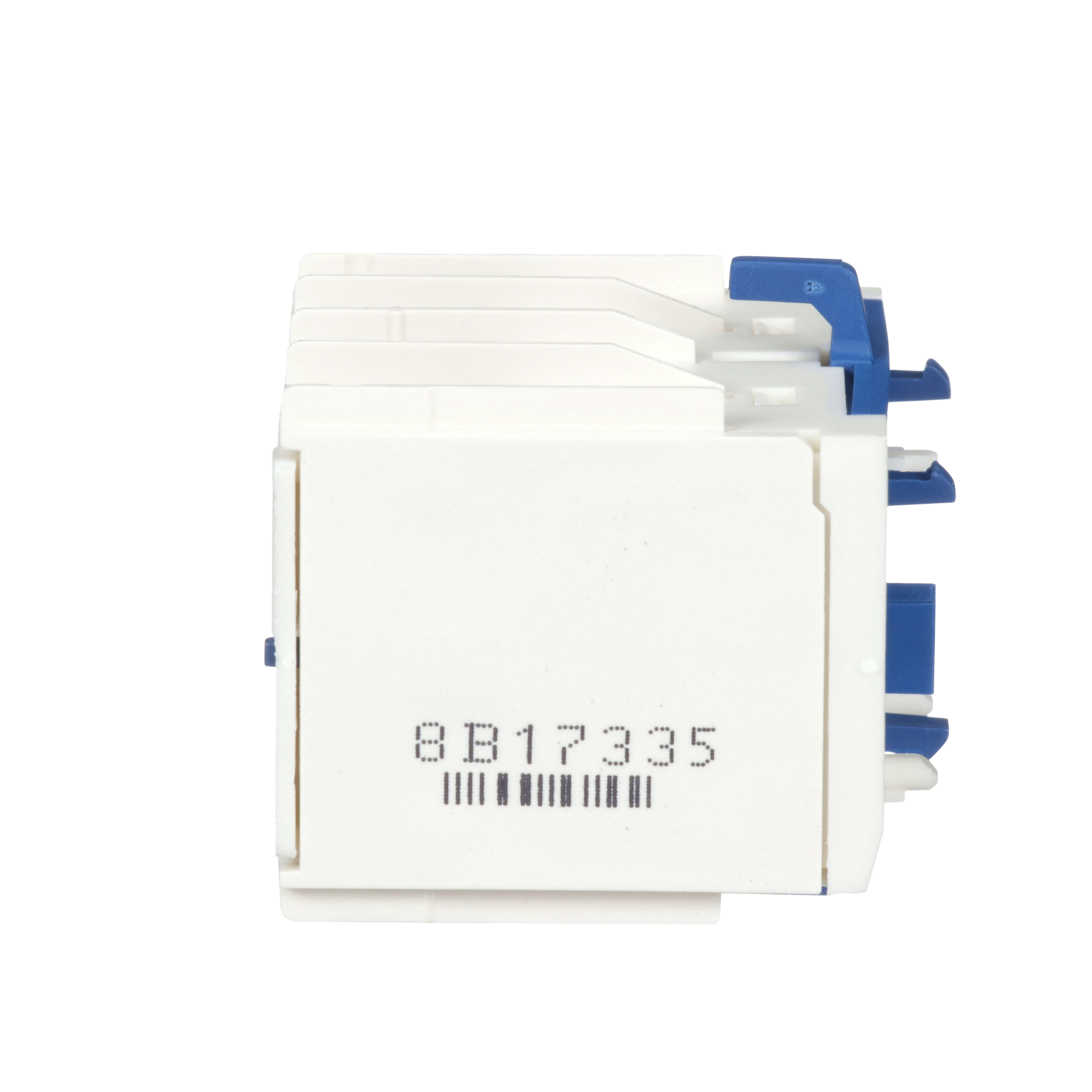

Image thumbnail 3

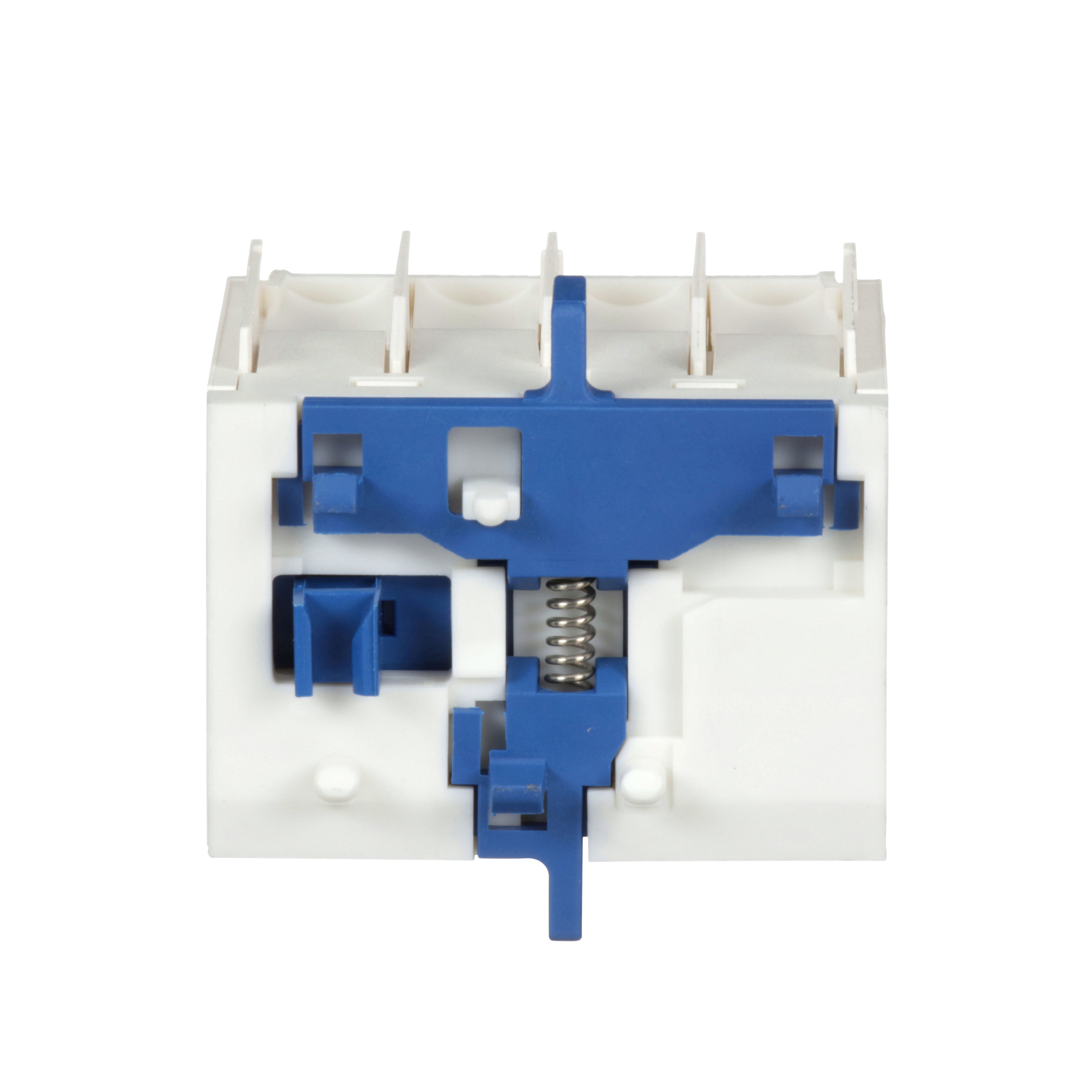

Image thumbnail 4
To:
CC:

CONTACTOR, AUXILIARY CONTACT BLOCK, TESYS K, 2 NO AND 2 NC, TOP MOUNT, SCREW CLAMP TERMINALS

Manufacturer: Schneider Electric | Catalog # CA3KN31BD | Electrozad South Part # 412955
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 2NO+2NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC).

Technical Information

Applications
CA2K-CA3K
Coil Voltage
<= 690 V AC <= 400 HZ
Contact Configuration
2 NO + 2 NC
Contact Rating
10 A 50 A°C
Enclosure
IP2X
Net Weight
0.045 kg
Operating Cycles
10000 cyc/h
Operating Temperature
-25-50 Adegrees C
Range
TeSys
Size
35 MM
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,JIS C8201-5-1,UL 60947-5-1
Storage Temperature
-50-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 0.34-1.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.75-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1.5-4 MMA²SOLID- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.75-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA²SOLID
Type
AUXILIARY CONTACT BLOCK
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS,TESYS K-TESYS K CONTROL RELAY

General Product Info

12-Digit UPC
338911050013
GTIN
03389110500110
Weight
0.045 kg

Dimensions

Depth
35 mm
Height
1.18 in
Warranty Length
18 mth
Width
1.5 in

Certifications & Compliance

Certifications
CB Scheme,CCC,CE,CSA,UKCA,UL
Country of Origin
Indonesia
