7622-S-2 QTIII SKIRTED

Manufacturer: 3M | Catalog # 7622-S-2 | Electrozad South Part # 412584
$1,434.04 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet Technical Drawing

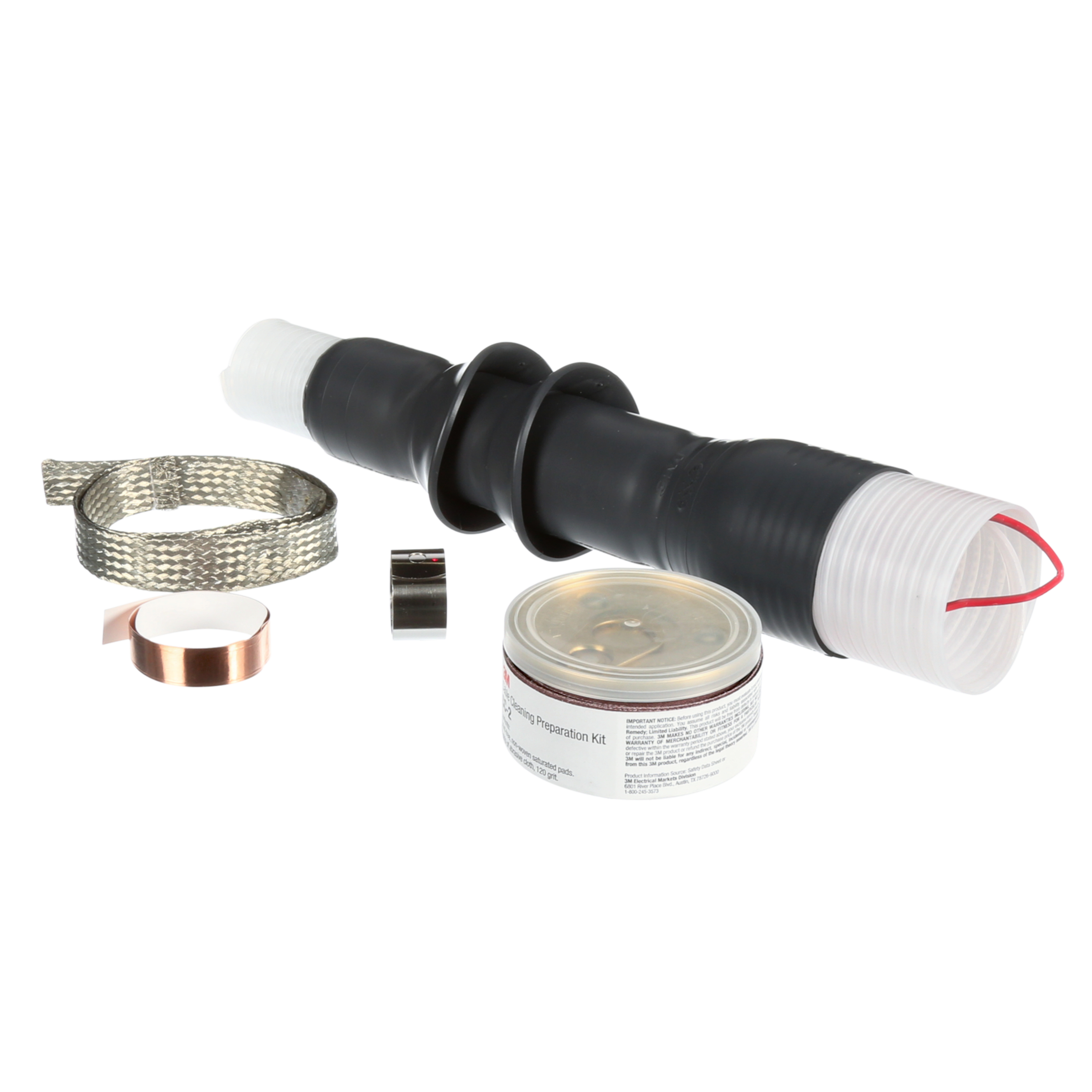

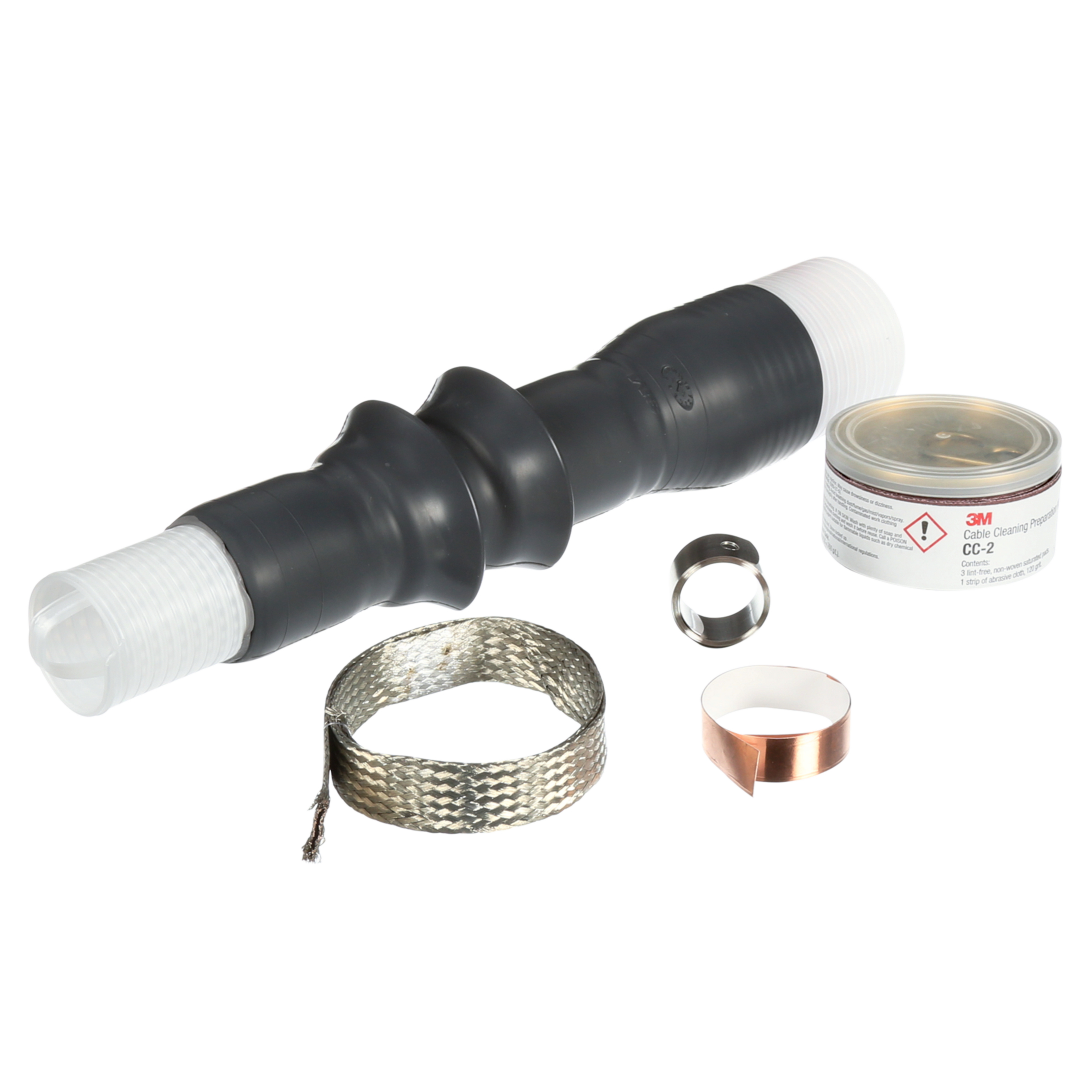

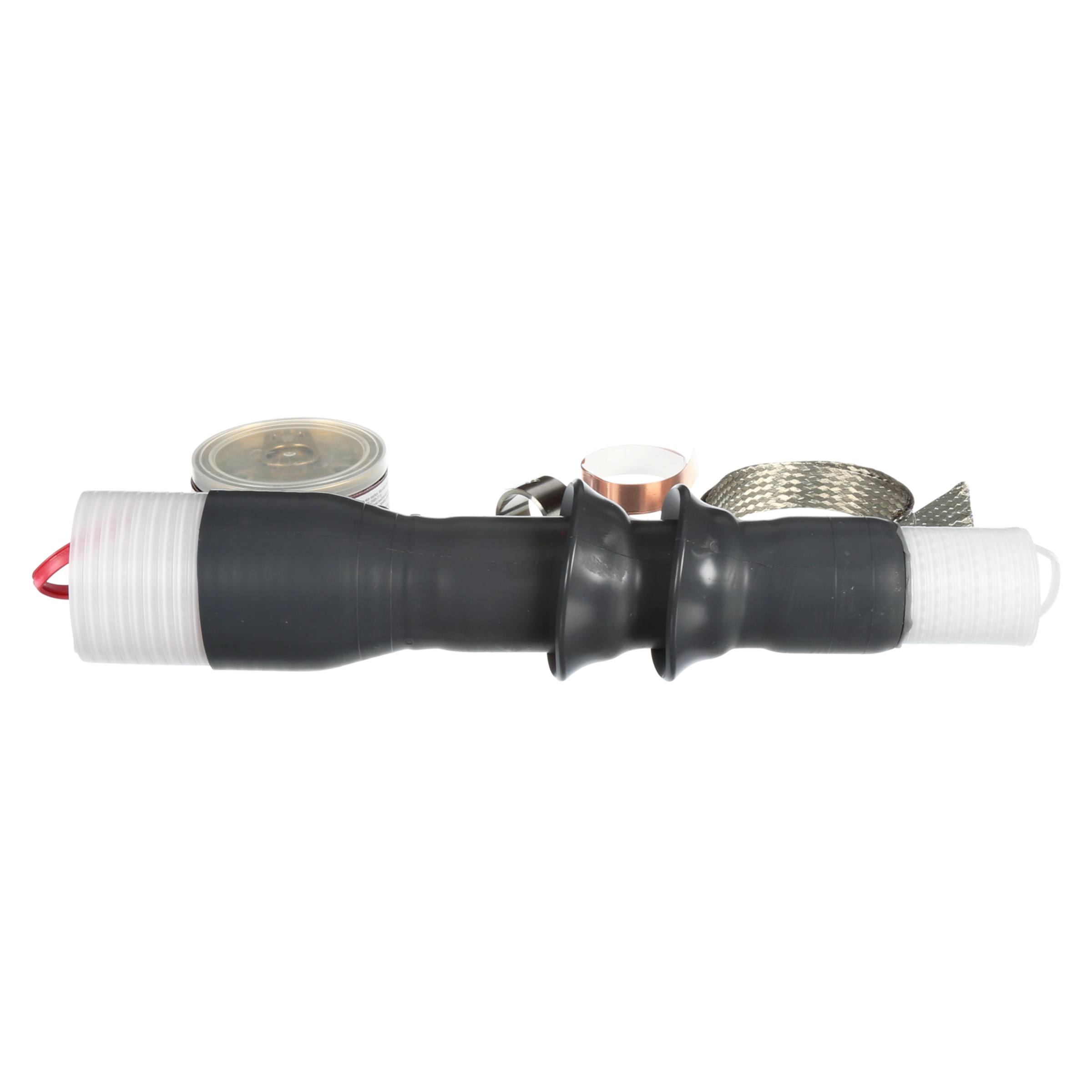

3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 2 Skirt Termination7622-S-2 has a conductor size range for 5 kV: 4/0 AWG-400 kcmil, 8 kV: 3/0 AWG-300 kcmil and 15 kV: 2-4/0 AWG.

Technical Information

Applications
For Outdoor Applications
Conductor Size
1, 1/0, 2, 2/0, 3/0, 4/0 AWG, 250, 300, 350, 400 kcmil
Indoor Outdoor
Outdoor Skirted
Material
Silicone Rubber
Type
QT-III
Voltage
8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007421702
GTIN
00054007421702
Product UPC
05400742170
Used With
0.64 - 1.08 in Cable
