Hood double post 24-contact 20-12AWG 16A 1x1"

Manufacturer: ABB | Thomas & Betts | Catalog # SH124MV | Electrozad South Part # 412551
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page

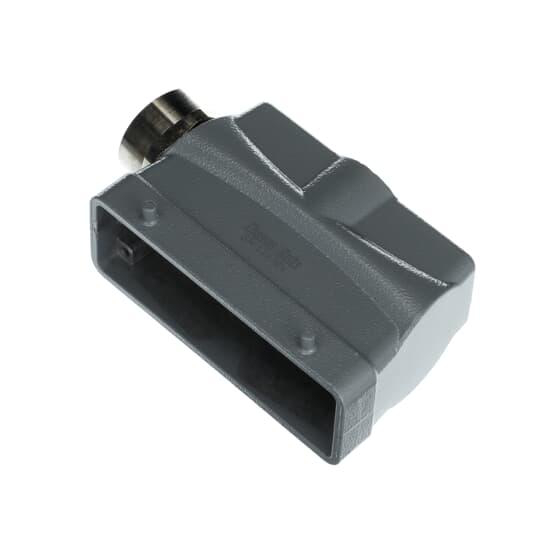

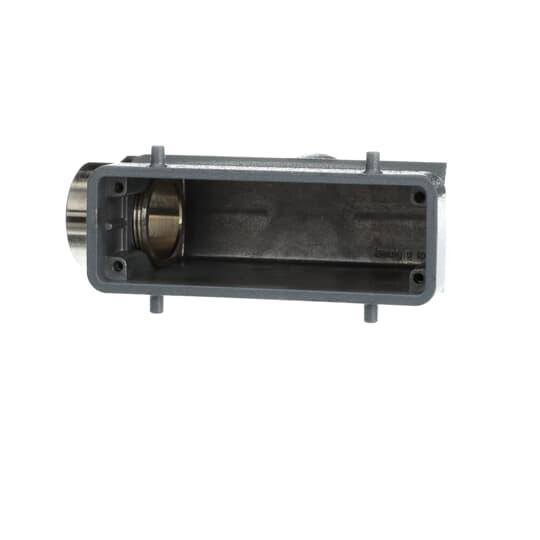

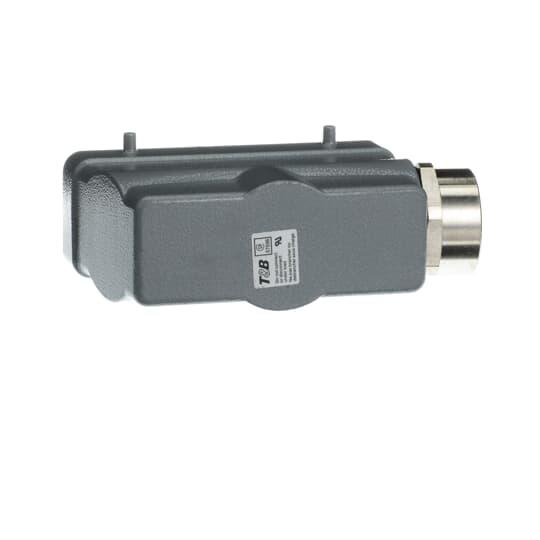

Pos-E-Kon™ Side entry double post hood. Made of die-cast aluminium alloy. Solid drilled copper alloy contact. Hard silver plated and gold plated contact surface. 24 contacts with ground connection type contact. Epoxy powder-coat finish EPDM seal gaskets.

Technical Information

Applications
For Industrial Connectors
Connection Type
NPT
Material
Die-Cast Aluminum Alloy
Temperature Rating
-40 to 257 degrees F
Type
Side Entry, Rectangular
Voltage
600 V

Manufacturer Information

Brand
ABB
Sub Brand
Pos-E-Kon®

General Product Info

12-Digit UPC
786209987082
Box Quantity
5
Environmental Conditions
UL 94 V0 Flammability
Finish
Epoxy Powder Coated
GTIN
00786209987082
Housing Material
Aluminium
Shape
Rectangle

Dimensions

Height
75.996 mm
Length
119.989 mm
Width
43.002 mm
