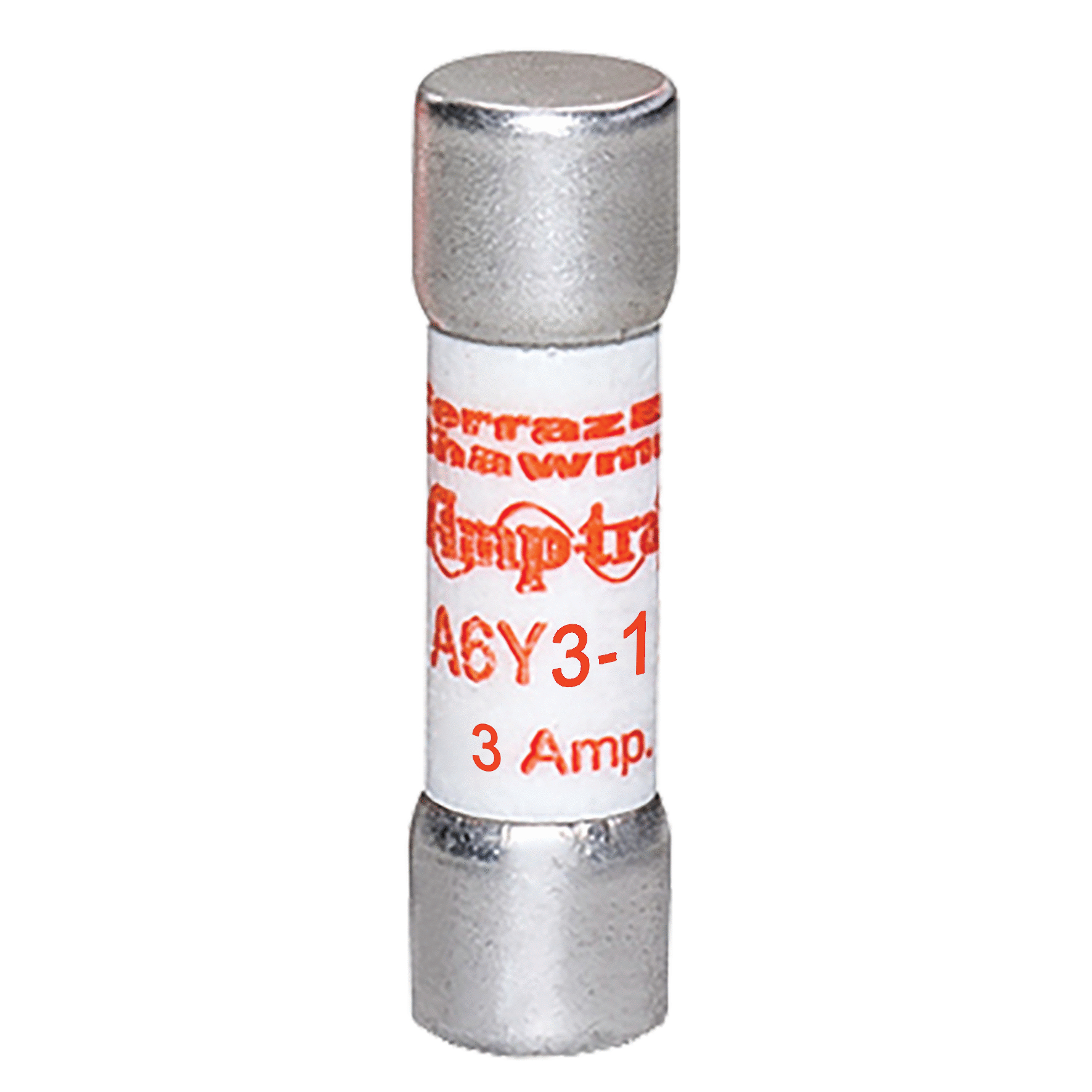

Fuse A6Y 500VAC 500VDC 3A Type 1 Ferrule Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A6Y3-1 | Electrozad South Part # 412248
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.

Technical Information

Amperage
3 A
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
500 V
Rated Voltage DC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Form 600
Voltage
500 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001902292
GTIN
30782001902293
Weight
0.2 lb

Dimensions

Diameter
0.81 in
Length
5 in

Certifications & Compliance

Country of Origin
Mexico
