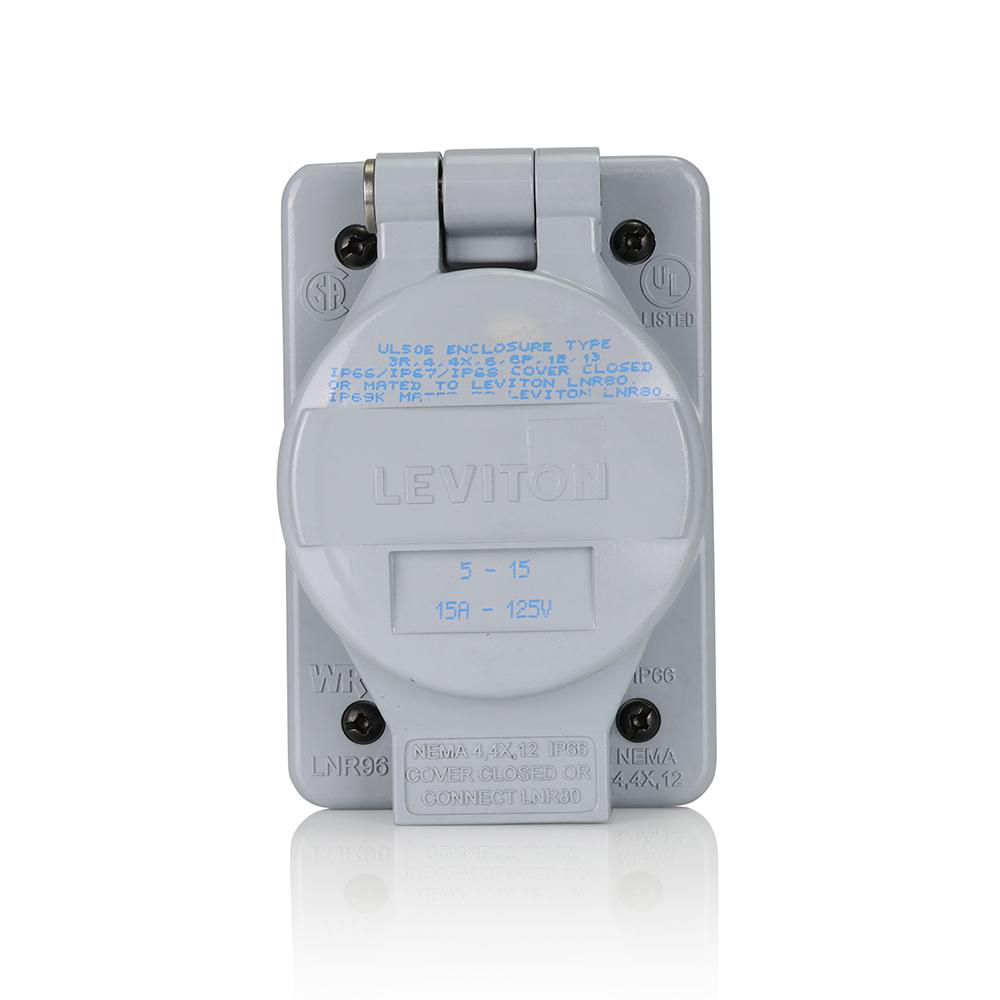

15 Amp Rhino-Hide® Straight Blade Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # LNR96-1 | Electrozad South Part # 411476
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet Technical Drawing
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Receptacle, Straight Blade, Industrial Grade, Grounding, Rhino-Hide - GRAY

Technical Information

Actuator
Non-Magnetic,Stainless Steel
Amperage
15 A
Device Type
Straight Blade Receptacle
Dielectric
2000 V
NEMA
WD-6
Number of Poles
2
Number of Wires
3
Operating Temperature
60 degrees C
Standard
ANSI C-73
Temperature Rise
200 %
Type
Conversion to Straight Blade Duplex
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
RhinoGuard

General Product Info

12-Digit UPC
078477692813
Color
Gray
Environment
Wet
GTIN
00078477692813
Housing Material
Powder-Coated Cast Aluminum

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
USA
CSA
C22.2 No. 42
