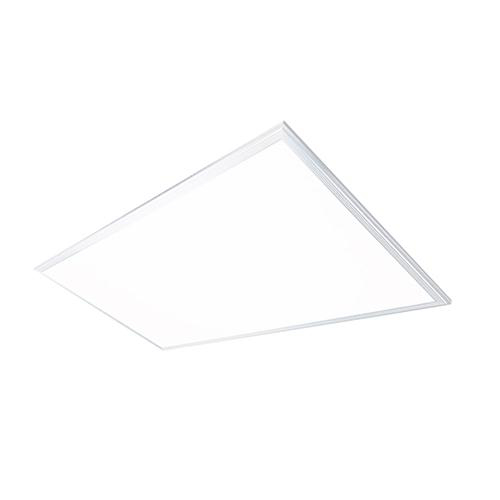

Product image for Panel LED CPL24-LED45A30: 45A30W 120-347V Variable Temp Dimmable
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Panel LED CPL24-LED45A30: 45A30W 120-347V Variable Temp Dimmable

Manufacturer: Rab Electric | Catalog # 032499 | Electrozad South Part # 411117
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Wiring Diagram
The newest back-lit models in our CPL-LED Panel family are both Lumen selectable and Colour Temperature selectable. These highly-efficient LED Panels provide uniform distribution, superior performance, and reduced glare.

Technical Information

Applications
Offices, Schools, Retail, Commercial Spaces
Ballast Type
0 - 10 V Dimming
Beam Angle
120°
Color Temperature
3500/4000/5000 K
DLC Class
Premium
Fixture Wattage
30 W
Lamp Type
Backlit LED
Lens Type
Acrylic
Lumens
5625 Im
Mounting Type
Ceiling
Temperature Rating
-20 to 40 degrees C
Type
T-Bar

Manufacturer Information

Brand
Rab Design Lighting
Sub Brand
RAB Design Lighting

General Product Info

12-Digit UPC
061184324993
Housing Material
Aluminum
