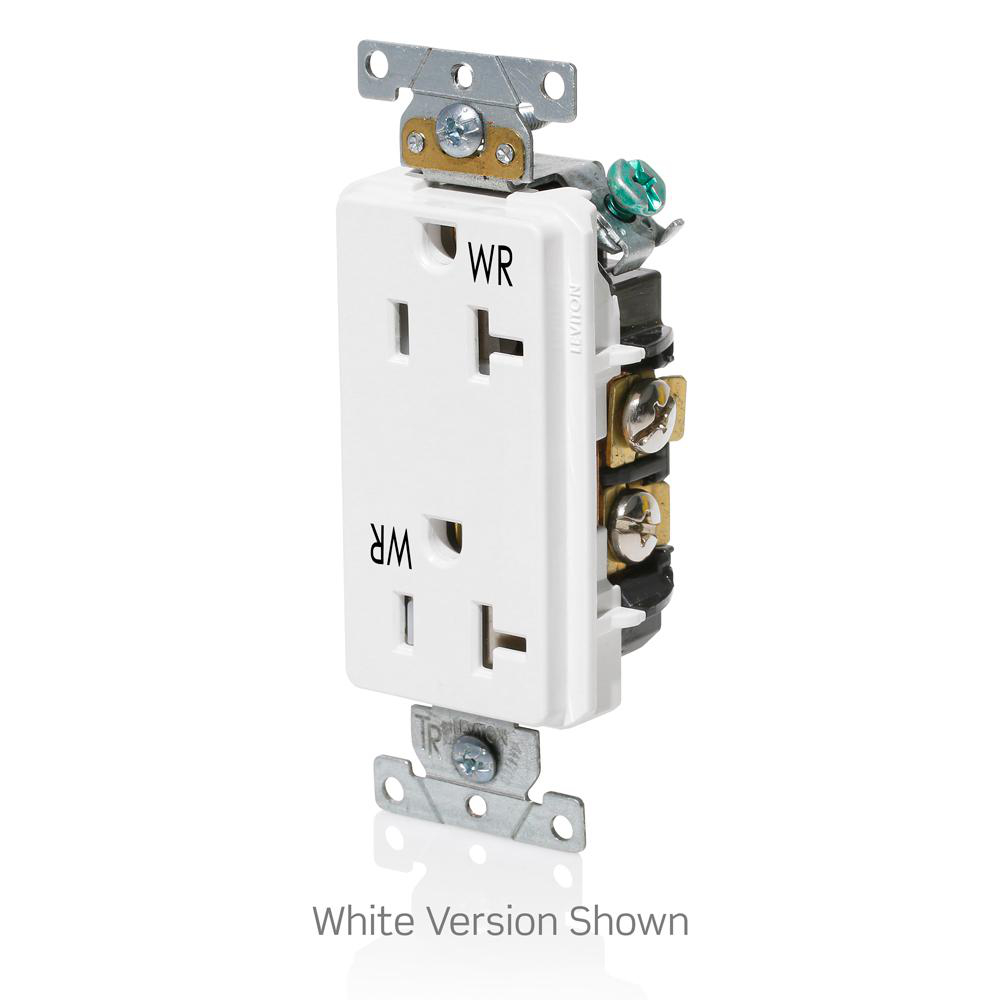

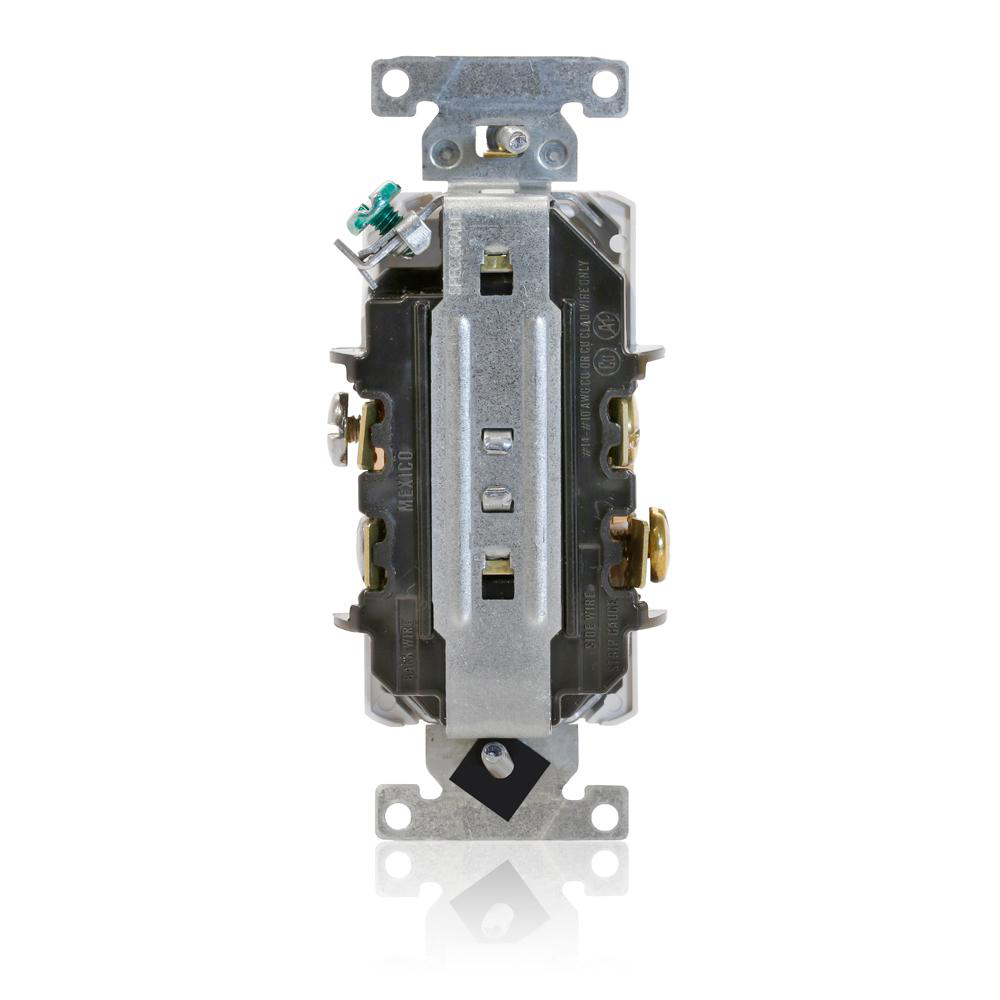

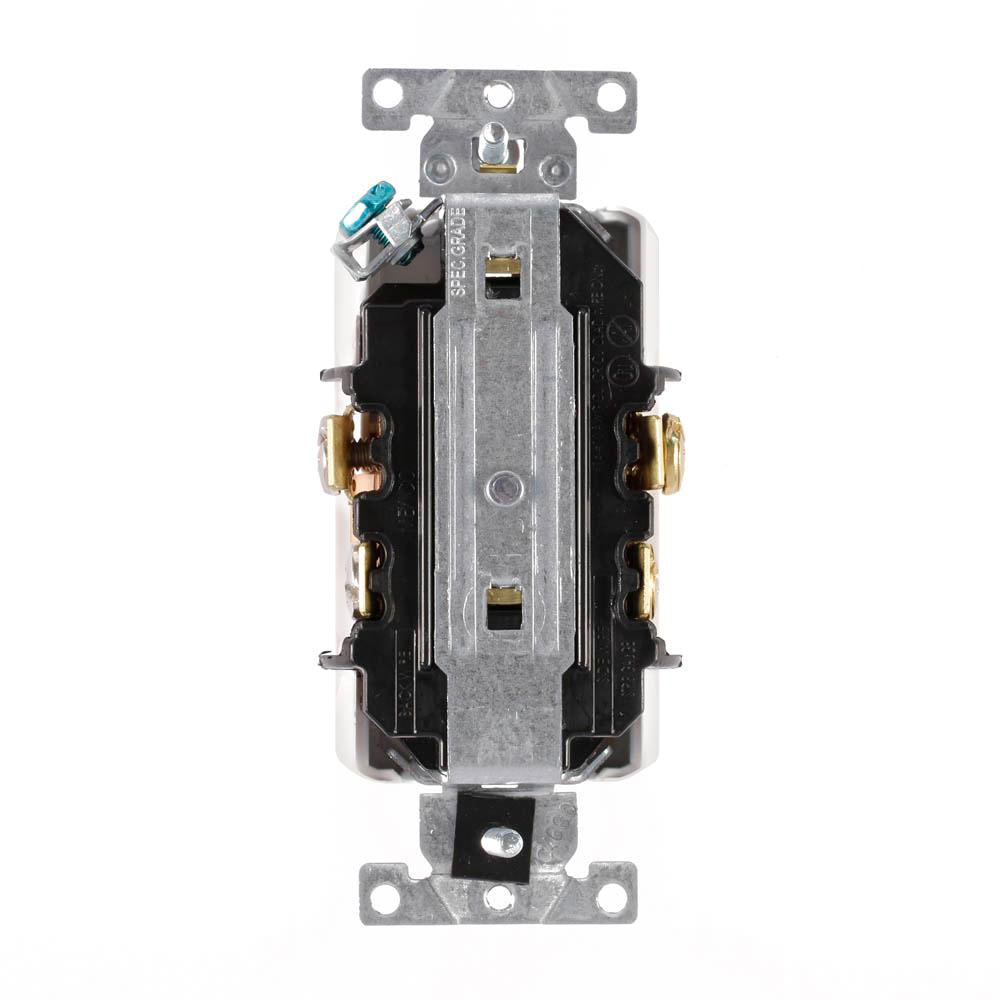

Weather- and Tamper-Resistant Duplex Receptacle, 20 Amp, 125 Volt

Manufacturer: Leviton Manufacturing | Catalog # WTD20-W | Electrozad South Part # 411102
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Weather and Tamper-Resistant,Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White

Technical Information

Amperage
20 A
Applications
Industrial
Body Material
PBT,PBT,Polyester Blend,Polyester Blend
Device Type
Duplex Receptacle Outlet
Dielectric
3000 V
Face Material
PBT,PBT,Polyester Blend,Polyester Blend
Flamability Class
Rated V-0 Per UL 94,Rated V-0 Per UL 94
Grade
Heavy-Duty Industrial Specification
Grounding
Self-Grounding,Self-Grounding
Horsepower
1 hp
Number of Poles
2,2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
ANSI C-73,ANSI C-73,CSA C22.2. No. 42,CSA C22.2. No. 42,Fed Spec W-C-596,Fed Spec W-C-596,UL 498,UL 498
Temperature Rise
200 %
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Type
Receptacle
Wire Count
3,3
Wire Type
Stranded Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMMERCIAL R

General Product Info

12-Digit UPC
078477675199
Color
White,White
GTIN
00078477675199

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
CULus,CULus,NOM-ANCE,NOM-ANCE
Country of Origin
Mexico
