Switch rocker commercial AC quiet 3-way 120/277V 15AMP gray

Manufacturer: Leviton Manufacturing | Catalog # 5693-2GY | Electrozad South Part # 410596
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet

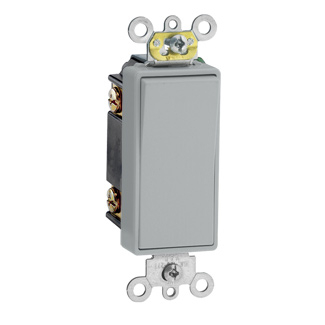

Decora® plus rocker 3-way AC quiet switch, commercial spec grade, self grounding, back side wired.

Technical Information

Actuator
Rocker
Amperage
12 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 V
Device Type
Rocker Switch
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Box
Number of Poles
3
Operating Temperature
-40 To 120 degrees C
Size
46 H x 1.76 W x 1.42 D IN
Standard
CSA,UL
TC Connection
Back Wired;Side Wired
Termination Type
Back Wire,Side Wire
Type
Rocker Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
DECORA PLUS SWITCHES

General Product Info

12-Digit UPC
078477789636
Color
Gray
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477789636

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
