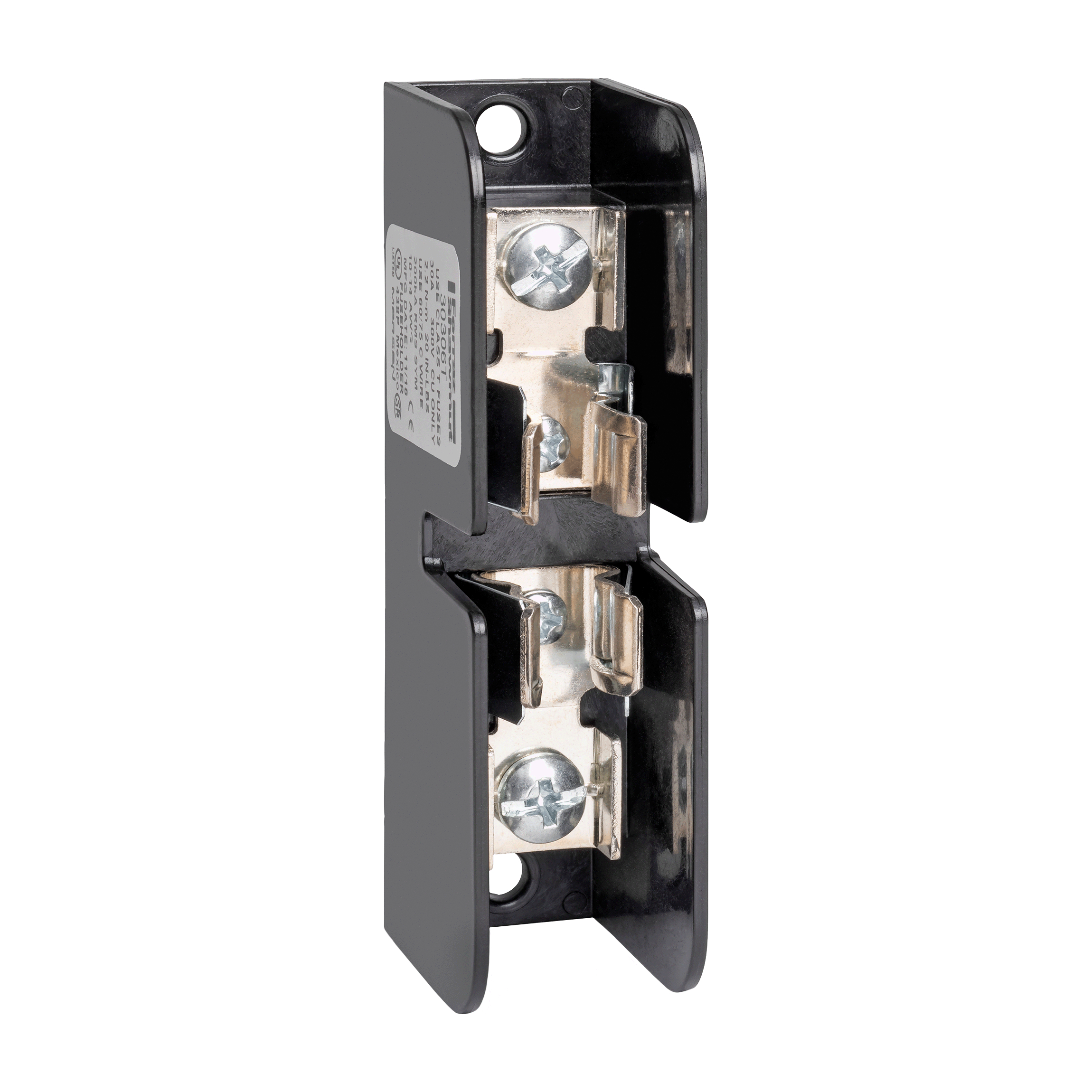

Fuse Bases 300V 30A Class T 1-pole Tin-Plate Aluminum Box with Reinforced Clip

Manufacturer: Ferraz Shawmut Mersen | Catalog # 30306T | Electrozad South Part # 41000
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks with copper connectors

Technical Information

Amperage
30 A
Frequency
50/60 Hz
Fuse Class
Class T
Fuse Interrupt Rating
30 A
Fuse Type
Class T
Insulation Material
GFPC
Max Operating Temperature
80 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
1
Rated Voltage AC
300 V
Rated Voltage DC
300 V
TC Connection
Box
Torque
35 lb-in
Torque Rating
35 lb-in
Type
Open Style
Voltage
300 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001675141
Class
T
GTIN
00782001675141
Weight
0.15 lb

Dimensions

Height
1.47 in
Length
3.37 in
Width
0.88 in

Certifications & Compliance

Country of Origin
Mexico
