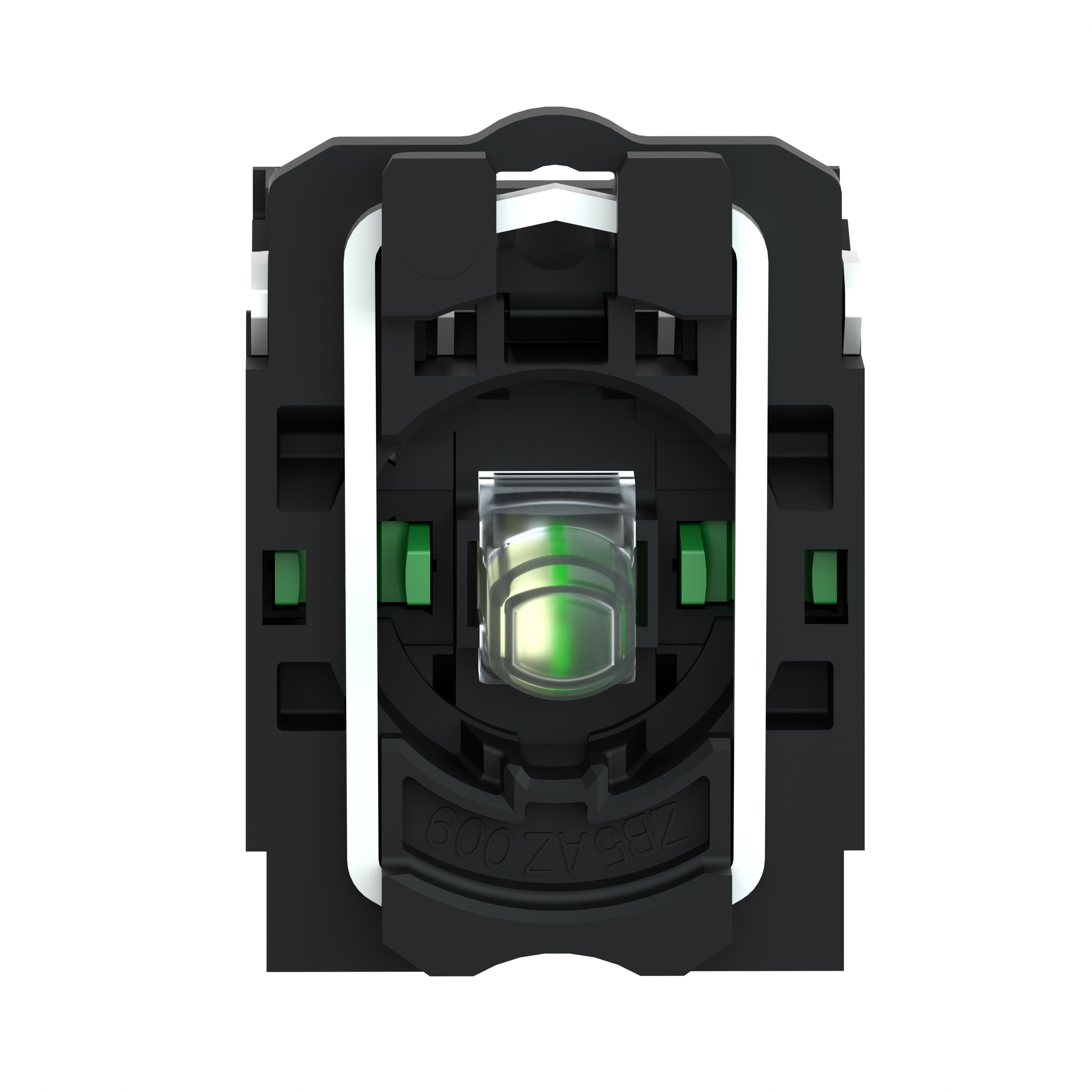

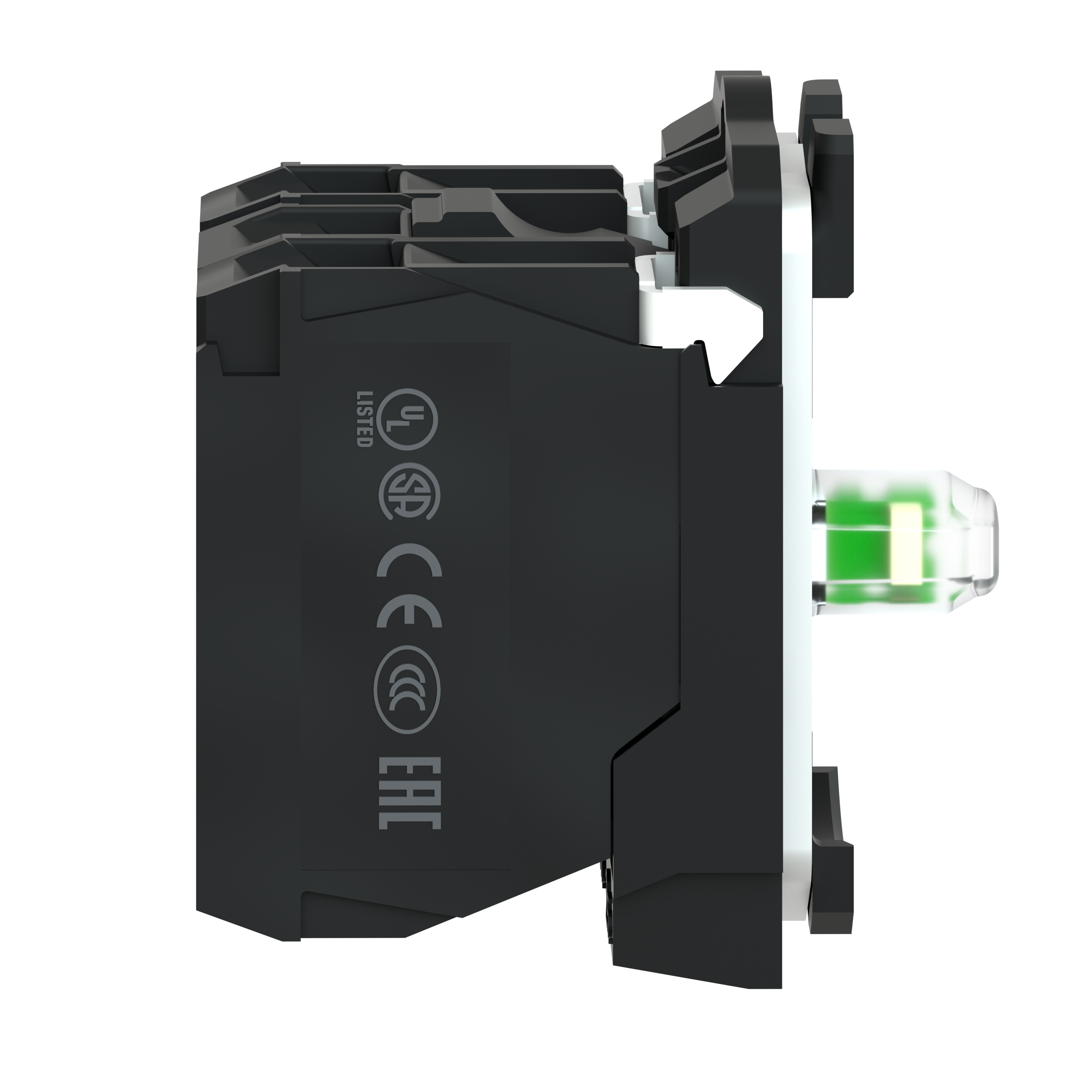

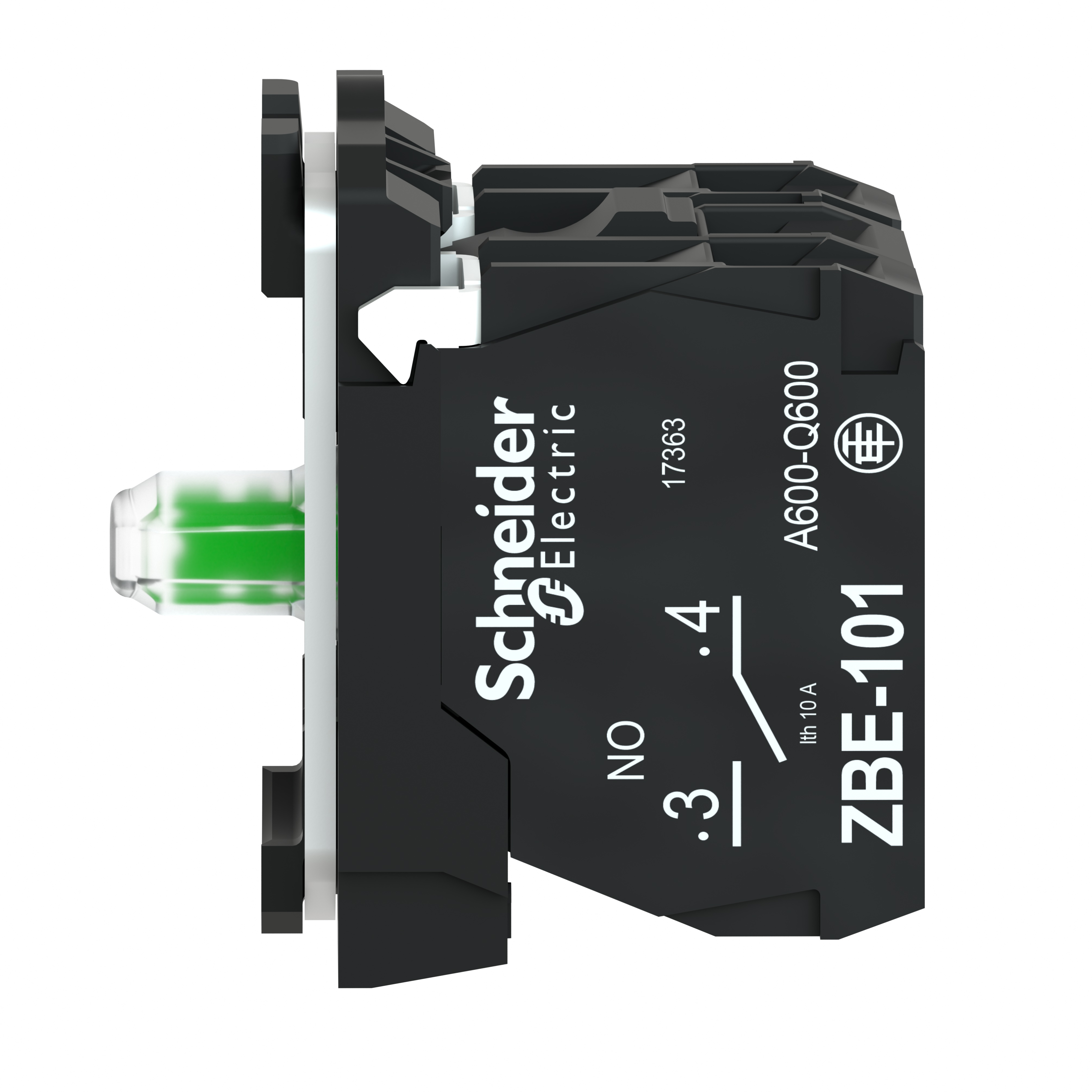

Product image for LIGHT BLOCK WITH BODY FIXING COLLAR, HARMONY XB5, PLASTIC, GREEN, INTEGRAL LED, 24V AC DC, 2NO
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

LIGHT BLOCK WITH BODY FIXING COLLAR, HARMONY XB5, PLASTIC, GREEN, INTEGRAL LED, 24V AC DC, 2NO

Manufacturer: Schneider Electric | Catalog # ZB5AW0B33 | Electrozad South Part # 409563
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Contact Configuration
2 NO
Contact Material
Silver Alloy
Contact Rating
A600 - Q600
Current
18 mA
Indicator
GREEN,INTEGRAL LED,PROTECTED LED
Net Weight
0.042 kg
Operating Temperature
-40-70 Adegrees C
Size
30 MM,32 MM,42 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA² WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA² WITHOUT CABLE END EN 60947-1
Type
Complete body/contact assembly and light block

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
785901387794
Weight
0.09 lb

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
