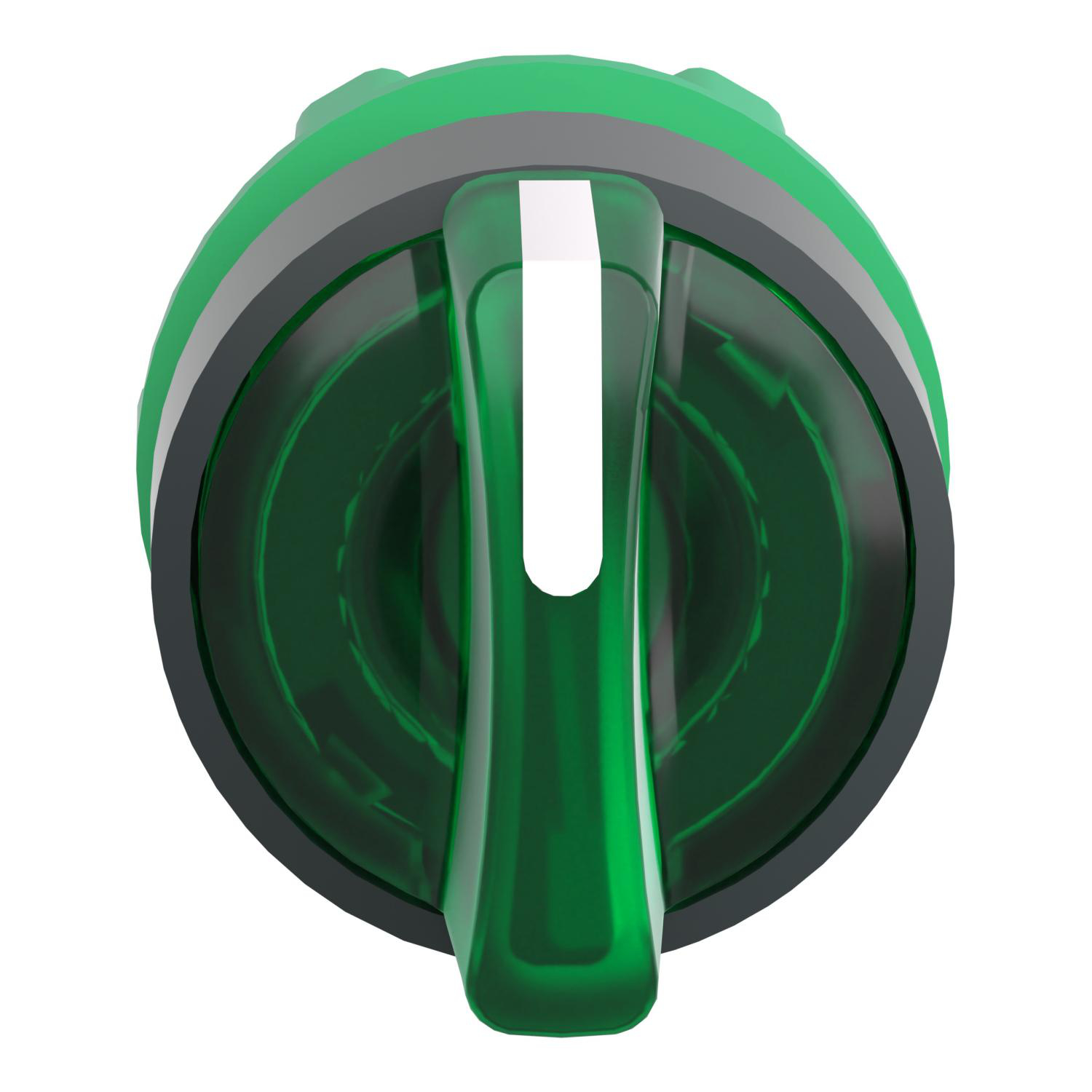

Image thumbnail 1

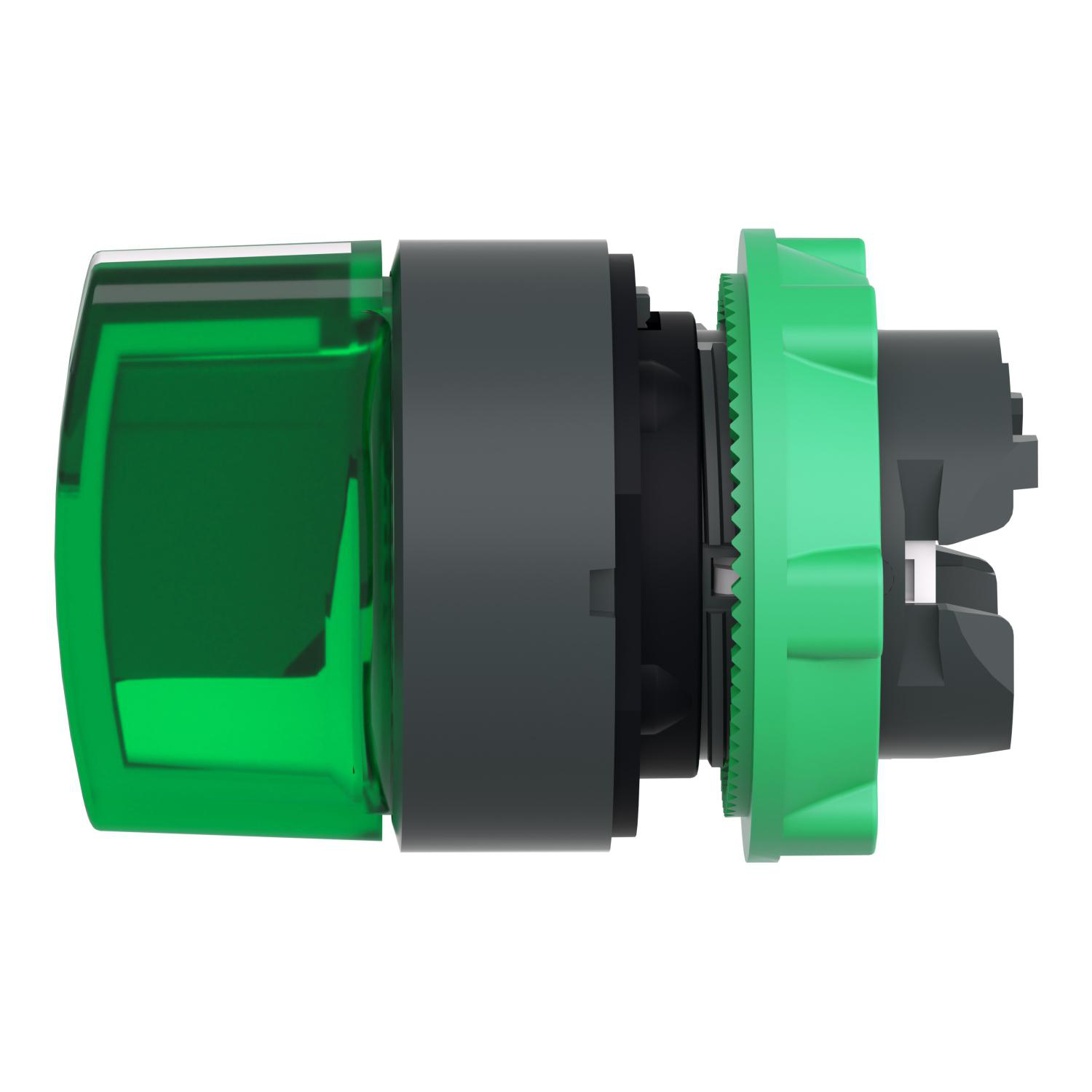

Image thumbnail 2

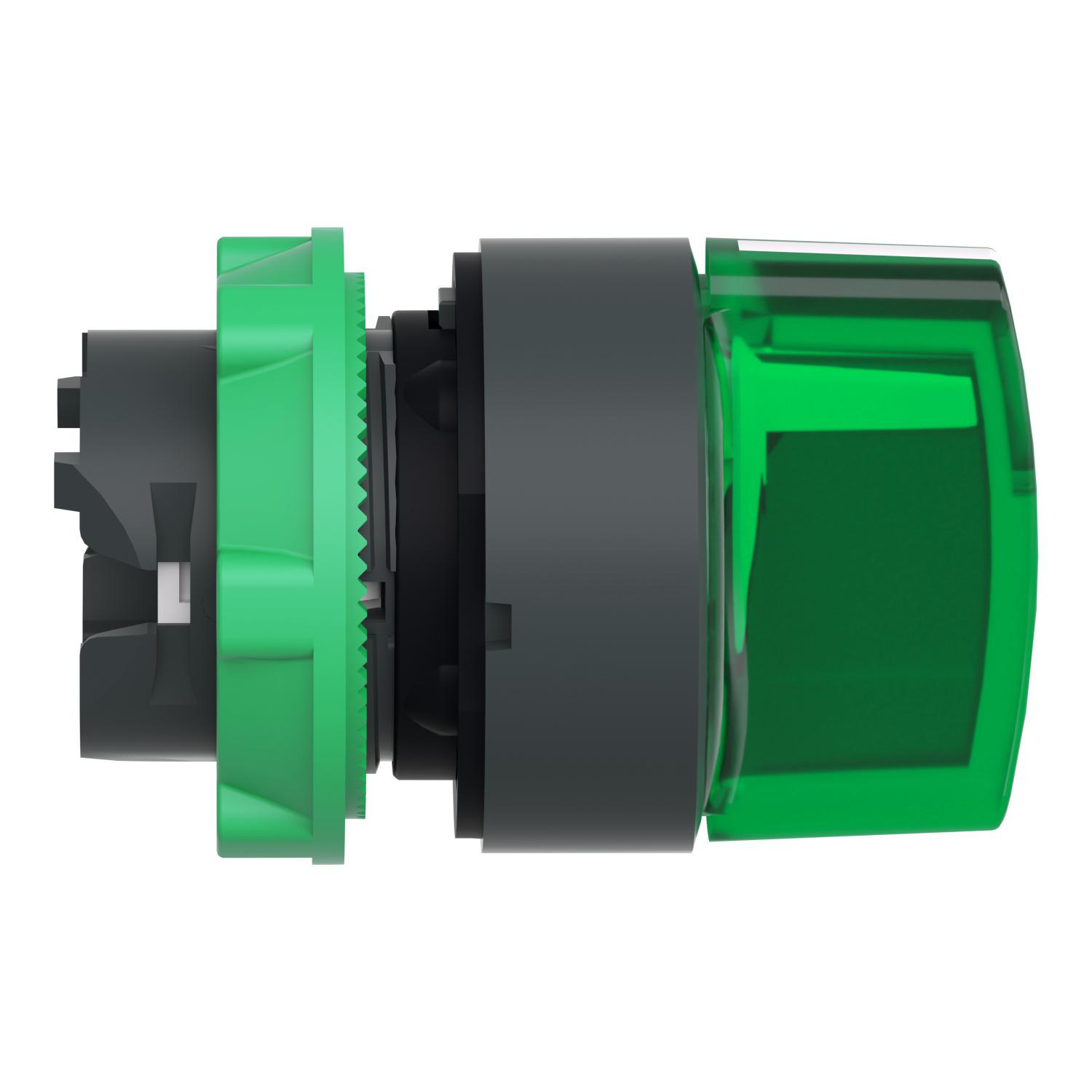

Image thumbnail 3

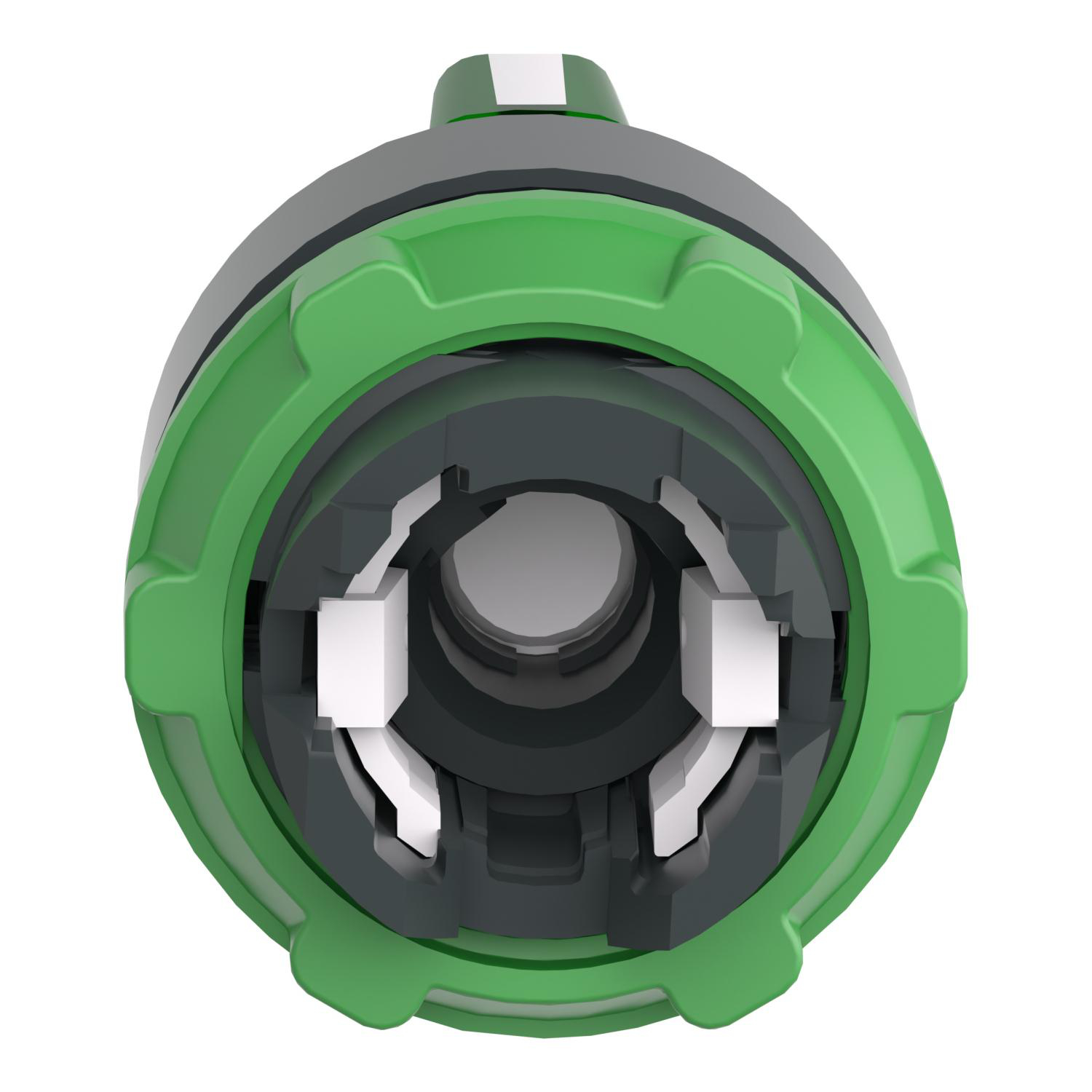

Image thumbnail 4

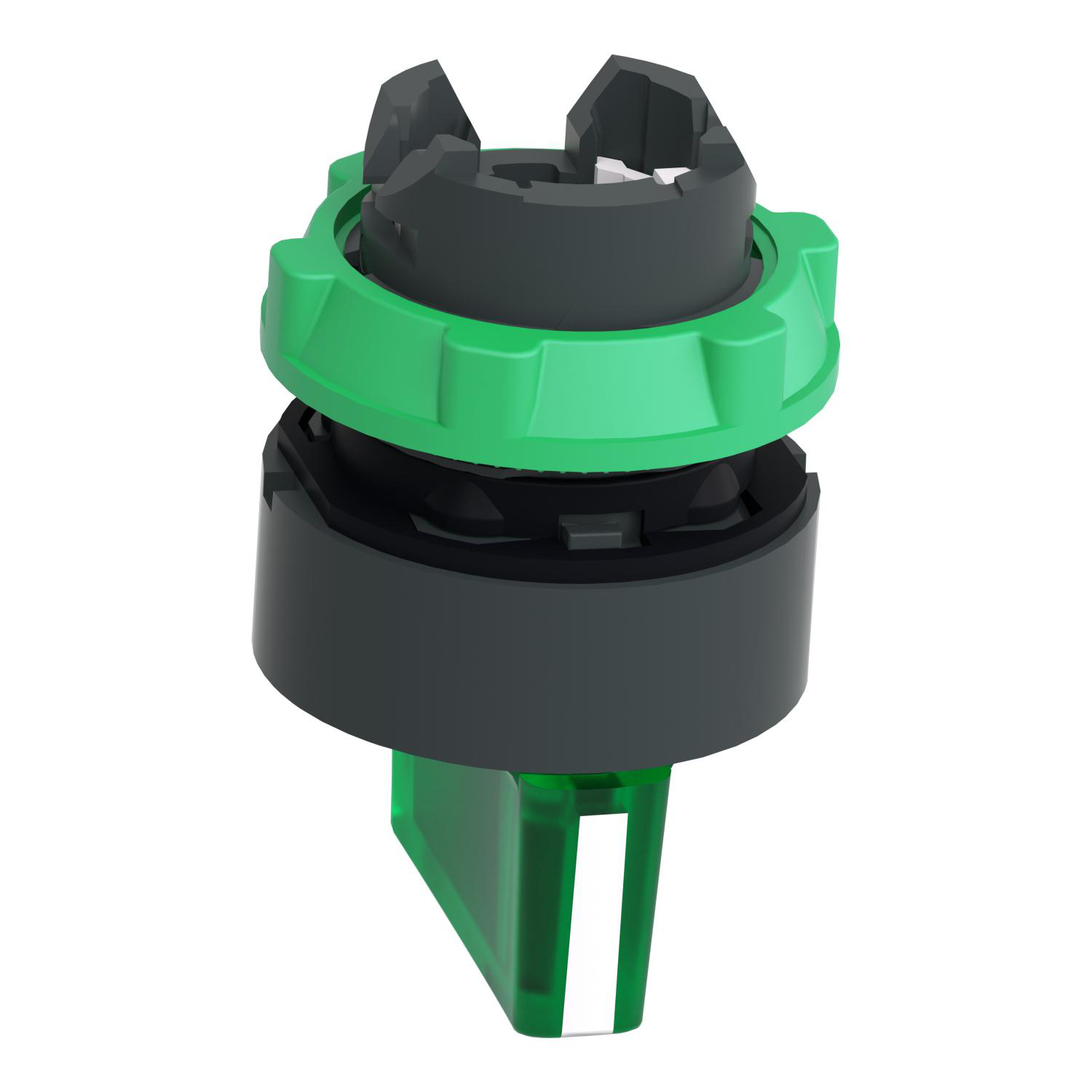

Image thumbnail 5
To:
CC:

HEAD FOR ILLUMINATED SELECTOR SWITCH, HARMONY XB5, GREY PLASTIC, GREEN HANDLE, 22MM, UNIVERSAL LED, 3 POSITIONS, STAY PUT

Manufacturer: Schneider Electric | Catalog # ZB5AK1333 | Electrozad South Part # 409562
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This green illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Technical Information

Action
MAINTAINED
Actuator
3 positions +/- 45°
Applications
Integral LED
Bezel Material
Plastic
Enclosure
NEMA 1/2/3/4/4X/13
Head Type
Standard
Indicator
BLACK
Net Weight
0.016 kg
Operating Temperature
-40-70 Adegrees C
Size
0.87 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Head for illuminated selector switch

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB5

General Product Info

12-Digit UPC
338911090613
Color
Green
Environmental Conditions
IP 65
GTIN
03389110906110
Weight
0.016 kg

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications & Compliance

Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
