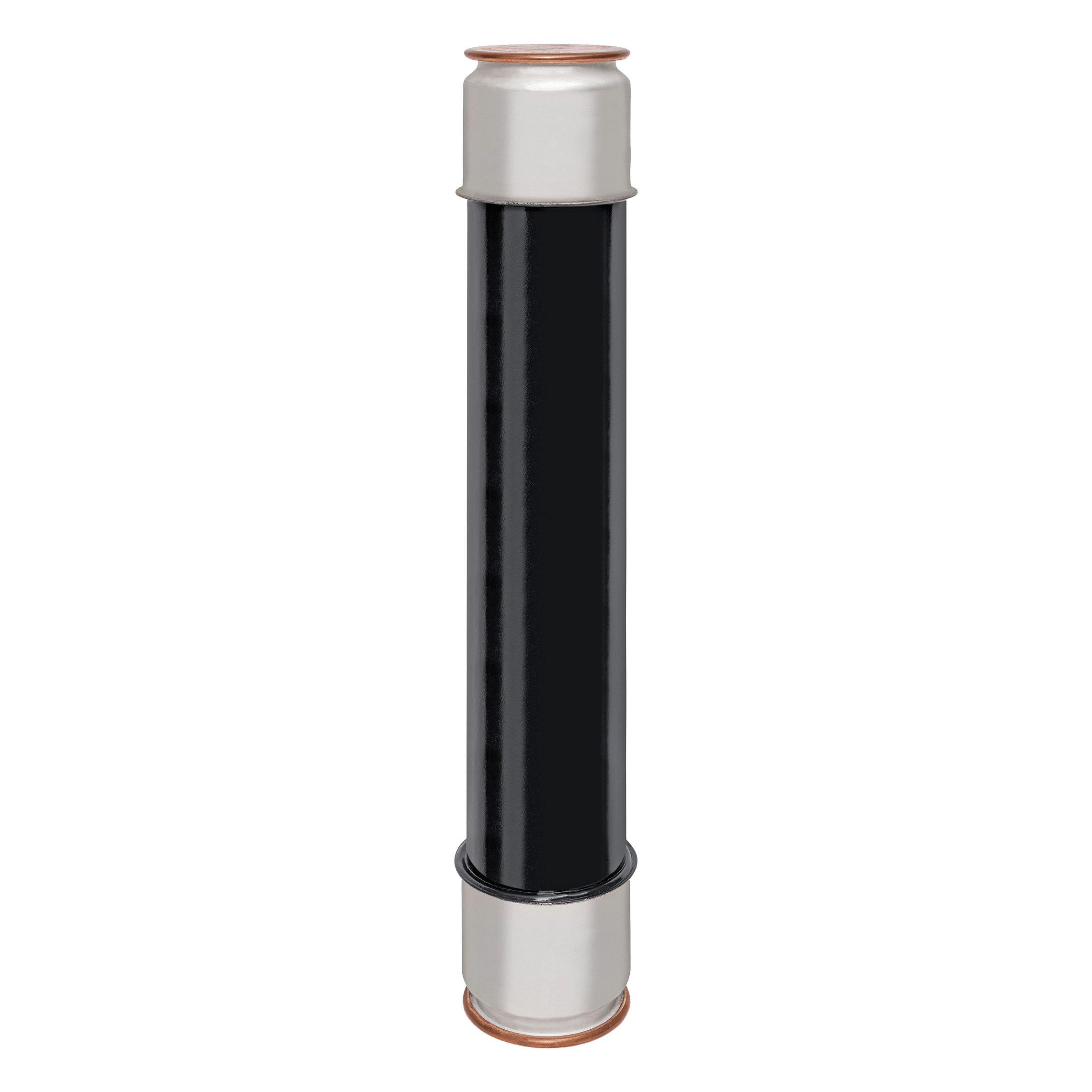

Medium Voltage E-Rated Fuse 15500VAC 15A Ferrule, Series: FMH Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # 9F60FMH015 | Electrozad South Part # 409420
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

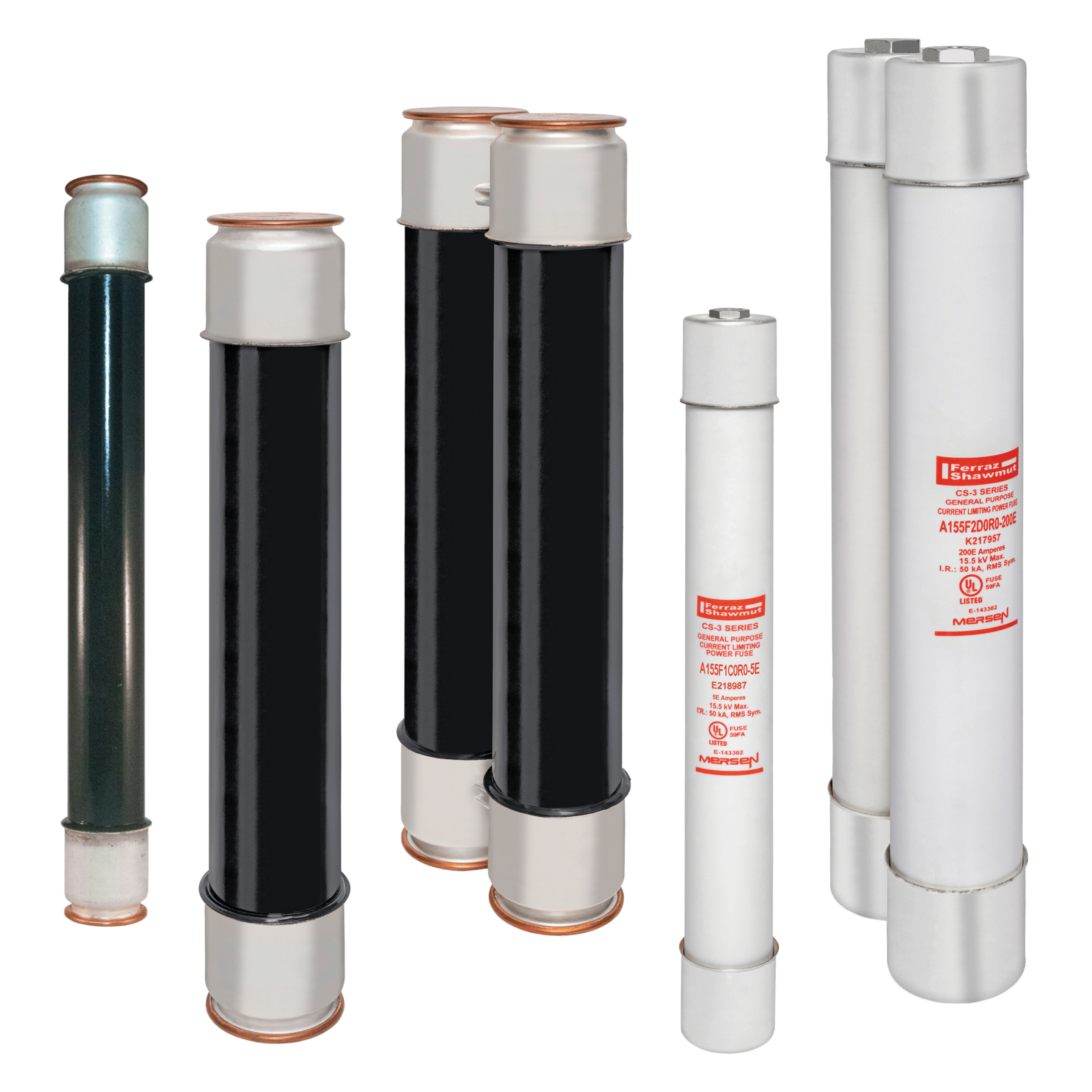

Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Technical Information

Amperage
15 A
Applications
Protection for 12 kV to 15.5 kV transformers or distribution systems.
Connection Type
Ferrule
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
Epoxy
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
15500 V
TC Connection
Ferrule
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
Power Distribution Fuses E-Rated
Voltage
15500 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001397104
GTIN
10782001397101
Weight
14 lb

Dimensions

Diameter
3 in
Length
18.88 in

Certifications & Compliance

Country of Origin
Mexico
