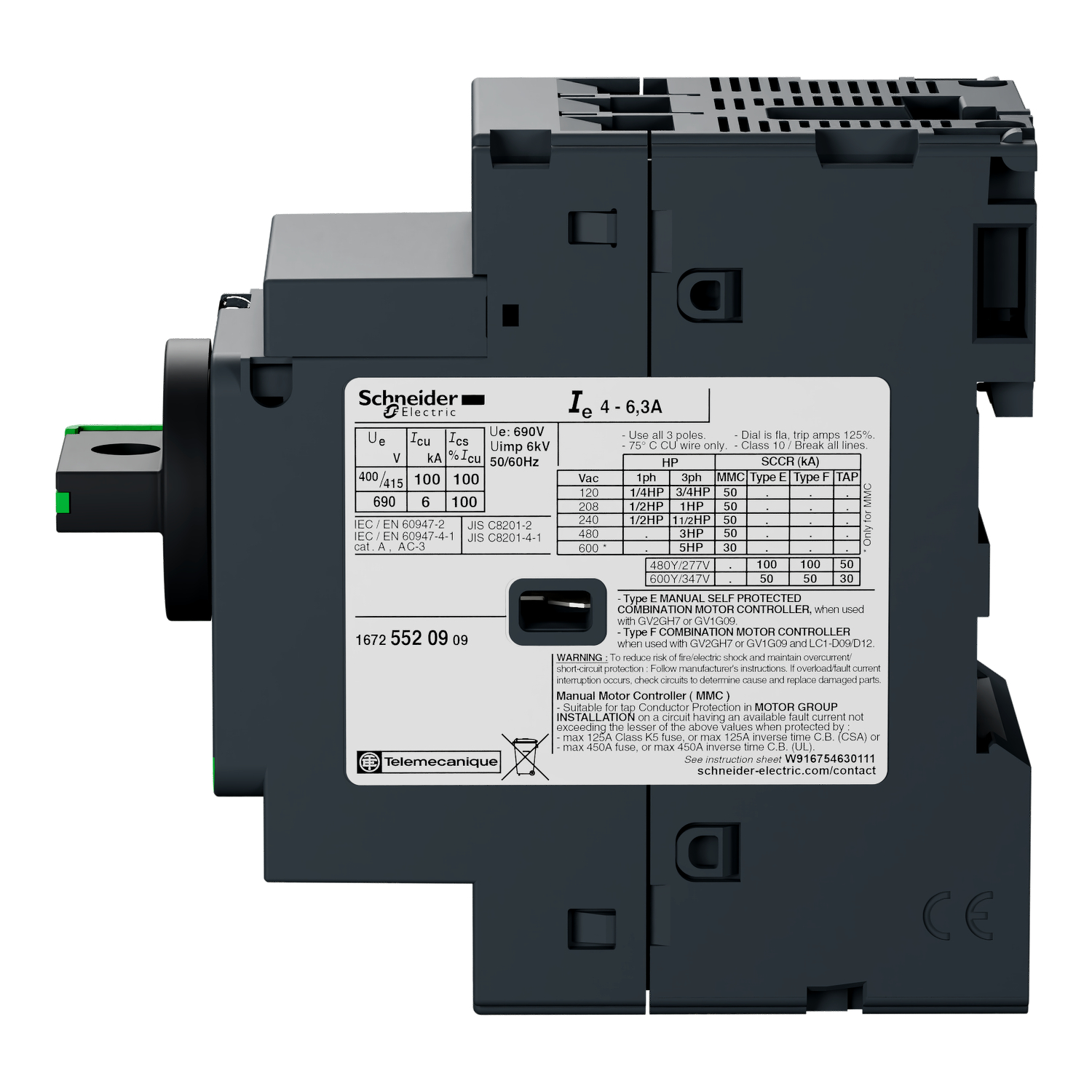

Image thumbnail 1

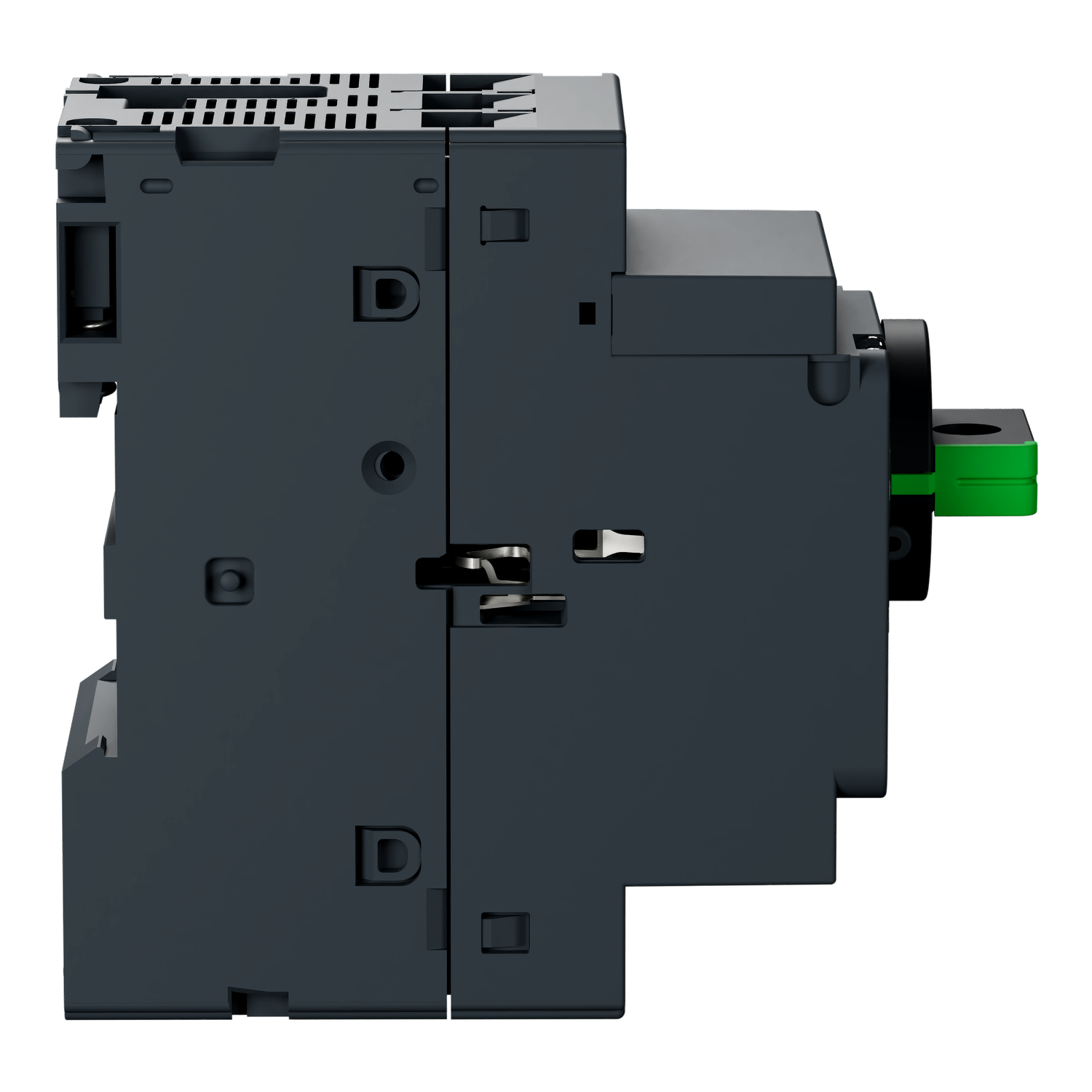

Image thumbnail 2

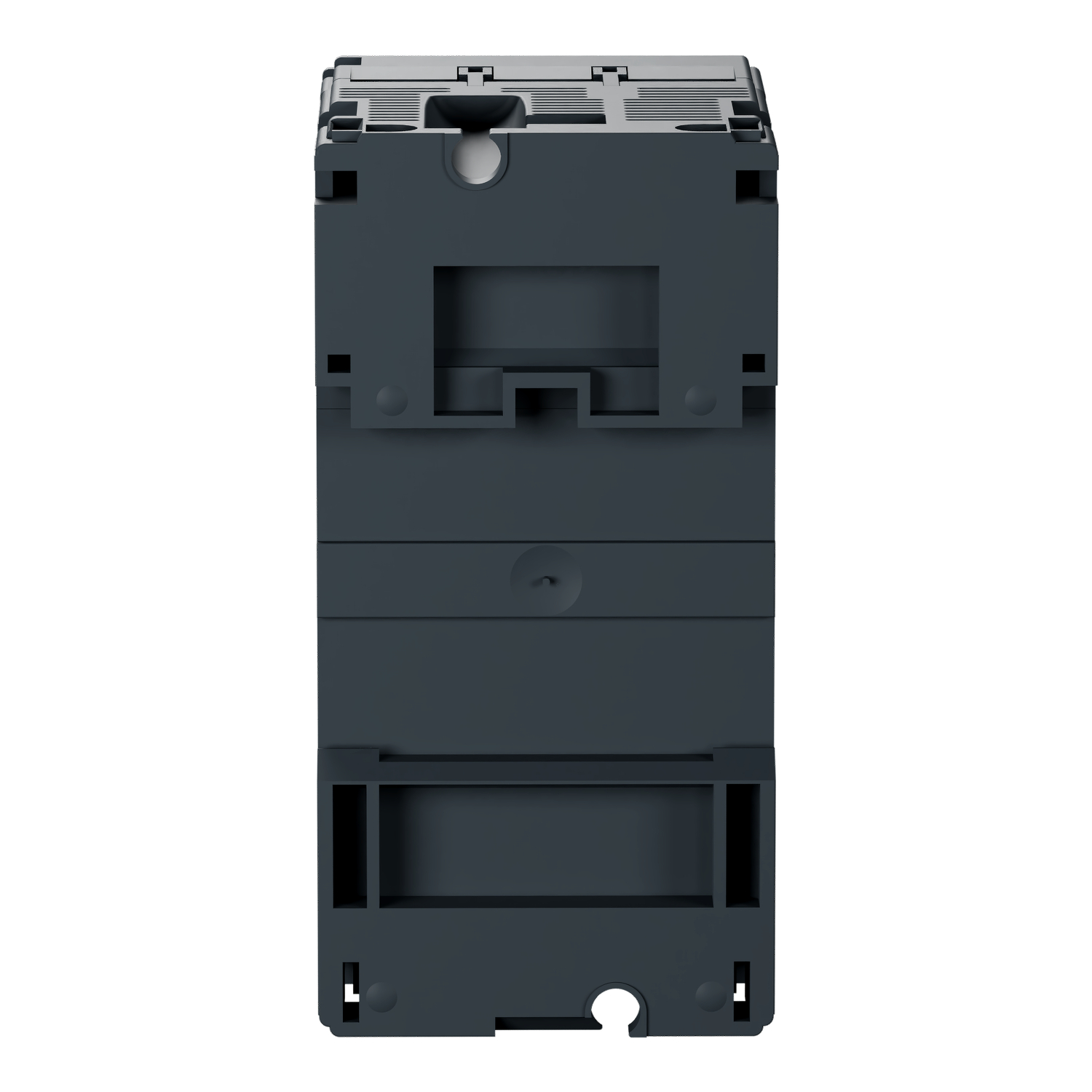

Image thumbnail 3
To:
CC:

TESYS DECA MANUAL STARTER AND PROTECTOR, THERMAL MAGNETIC CIRCUIT PROTECTOR, ROTARY HANDLE, 0.63...1 A, SCREW CLAMP TERMINALS

Manufacturer: Schneider Electric | Catalog # GV2P04 | Electrozad South Part # 409220
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL
TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Technical Information

Amperage
1 A
Applications
MOTOR
Control Type
Rotary knob
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
1 A
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 0.63A TO 1.00A
Size
45 MM,89 MM,97 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA² SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA² FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA² FLEXIBLE WITH CABLE END
Trip Point
13-13 A
Type
CIRCUIT BREAKER
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2P,TESYS,TESYS GV2

General Product Info

12-Digit UPC
338911021341
Color
Gray
GTIN
03389110213447

Dimensions

Depth
97 mm
Height
89 mm
Warranty Length
18 mth
Width
45 mm

Certifications & Compliance

Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Mexico
