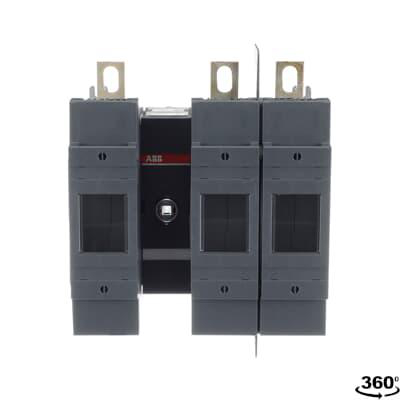

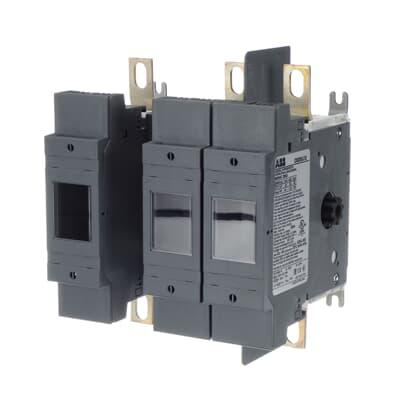

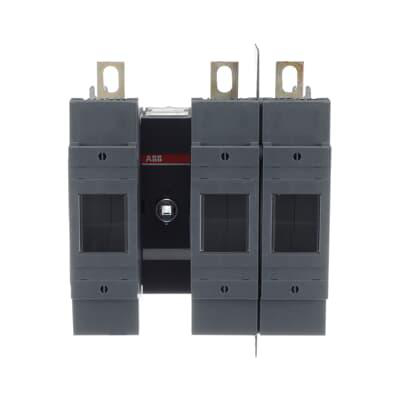

Product image for 3P SW 200A J FUSE UL98
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

3P SW 200A J FUSE UL98

Manufacturer: ABB Inc | Catalog # OS200J12 | Electrozad South Part # 409050
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure
3 poles 200 amperes rated at 600 VAC open fusible disconnect switch for use with J fuse type. Includes terminal bolt kit as standard. Handle and shaft are not included. 182 millimiters width x 218 millimiters height x 132 millimiters depth. Front mounted, base mounting. Power loss 8 W.

Technical Information

Amperage
200 A
Applications
For use with J fuse type
Mounting Type
Base Mounting
Number of Poles
3
Size
182x218x132mm
Standard
UL98IEC 60947-3
Terminal Type
Lug Terminals
Type
Disconnect switch
Voltage
1000 V

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
662019847429
GTIN
00662019847429
