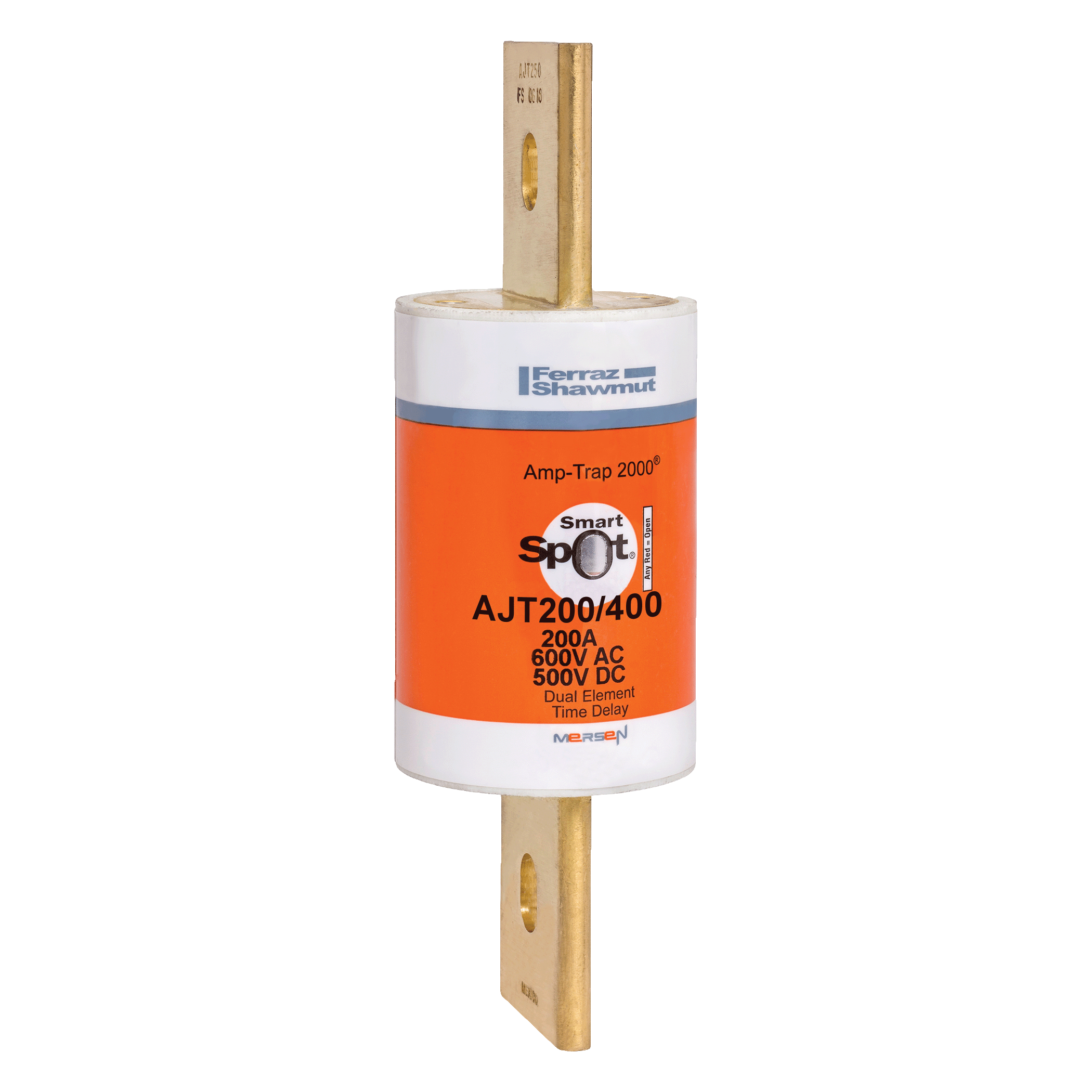

Reducer Fuse AJT - Class J - Time-delay 600VAC 500VDC 200A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # AJT200/400 | Electrozad South Part # 408789
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
AJT Reducer Fuses are a safe permanent solution for decreasing your current rating without using a fuse reducer which are designed and list for temporary use only. These reducer fuses provide the same trusted protection levels as a traditional AJT fuses but in a larger body.

Technical Information

Amperage
200 A
Applications
Motor Circuits Mains Feeders Branch Circuits Lighting Heaters Transformers Control Panels Circuit Breaker Back-up Bus Duct Load Centers
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Interrupt Rating
200 kA
Mounting Type
Bolted,Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Brass
Terminal Type
Blade
Type
North American Power Fuses

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap® 2000, SmartSpot®

General Product Info

12-Digit UPC
0782001447410
Class
J
GTIN
10782001447417
Weight
1.9 lb

Dimensions

Diameter
2.12 in
Length
7.13 in
