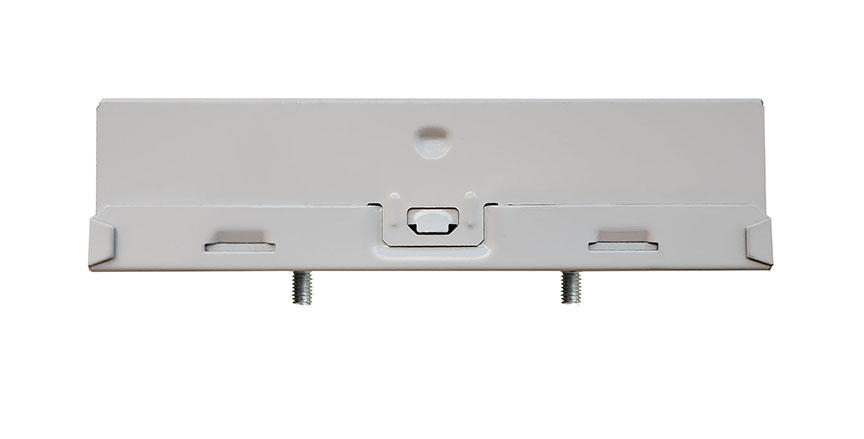

FIELDSET DEVICE, OPTOTRONIC INTELLIGENT

Manufacturer: Lithonia Lighting | Catalog # *2806X9 | Electrozad South Part # 408488
$55.21 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet G USERS MANUAL URL
The FieldSET OTI 40W LED Driver is a programmable, dimmable LED driver in-field replacement of failed LED drivers in indoor luminaries. This programmable driver is compatible with the FIELDset LED Driver Programming Tool which provides visual and audio feedback programming. Features two housing options for compartment installation or on top of a junction box (J-Housing model). Replacement for indoor drivers. Compact enclosure. Programmable with the FieldSET LED driver handheld programming tool. 0-10V Dimming to 1%.

Technical Information

Input Current
0.41 A at 120 V, 0.18 A at 277 V
Input Voltage
120 - 277 VAC
Max Output Power
40 W
Output Current
400 - 1400 mA
Power Factor
>0.9
Temperature Rating
-30 to 50 degrees C
Type
Constant Current, Field-Programmable, Indoor

Manufacturer Information

Brand
eldoLED
Sub Brand
FieldSET®

General Product Info

12-Digit UPC
196183325358
Environmental Conditions
95% Non-Condensing Humidity, Dry and Damp Rating
GTIN
00196183325358

Dimensions

Height
1.2 in
Length
4.3 in
Width
2.4 in
