1PL2/02

Manufacturer: Burndy | Catalog # 1PL2/02 | Electrozad South Part # 408465
$59.76 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

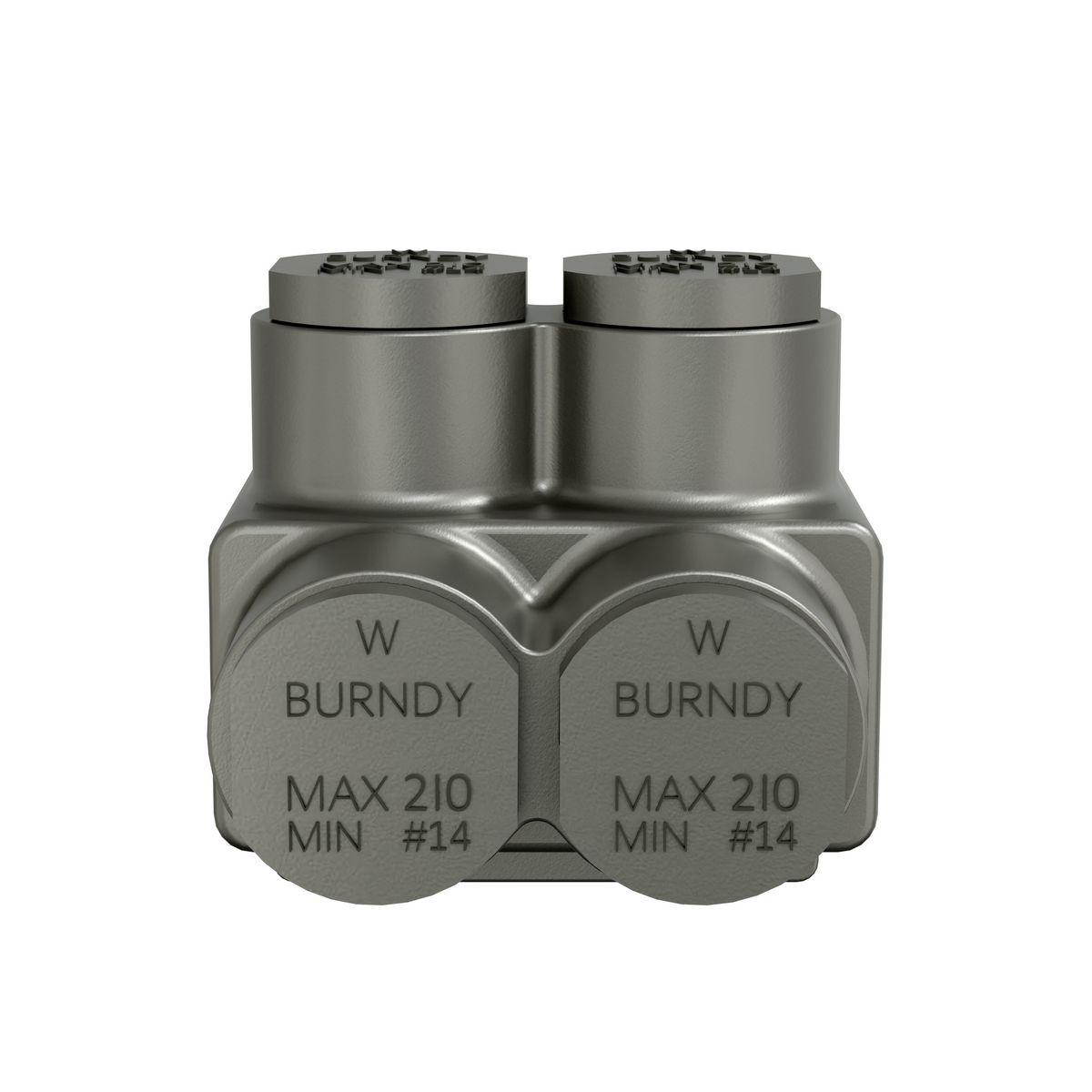

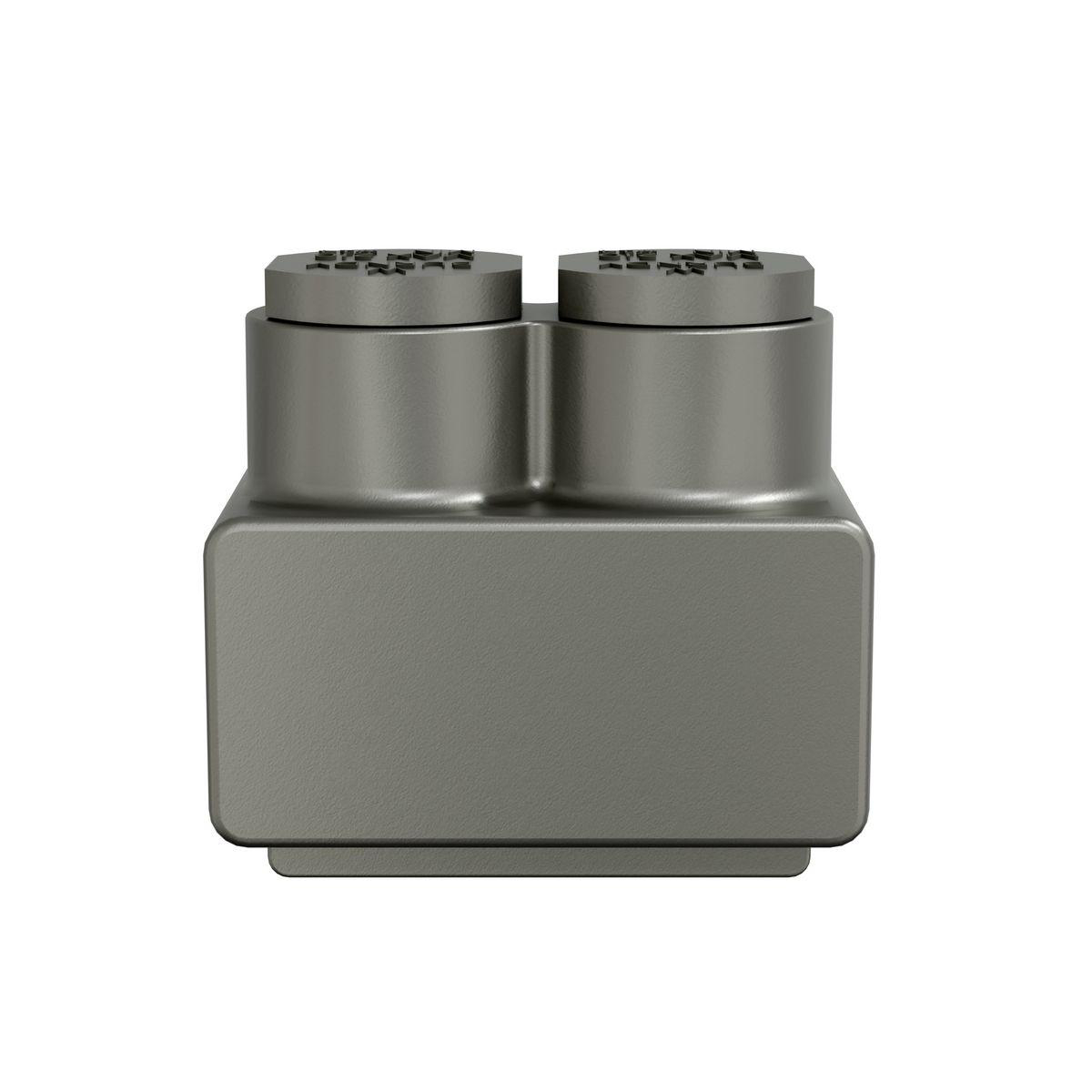

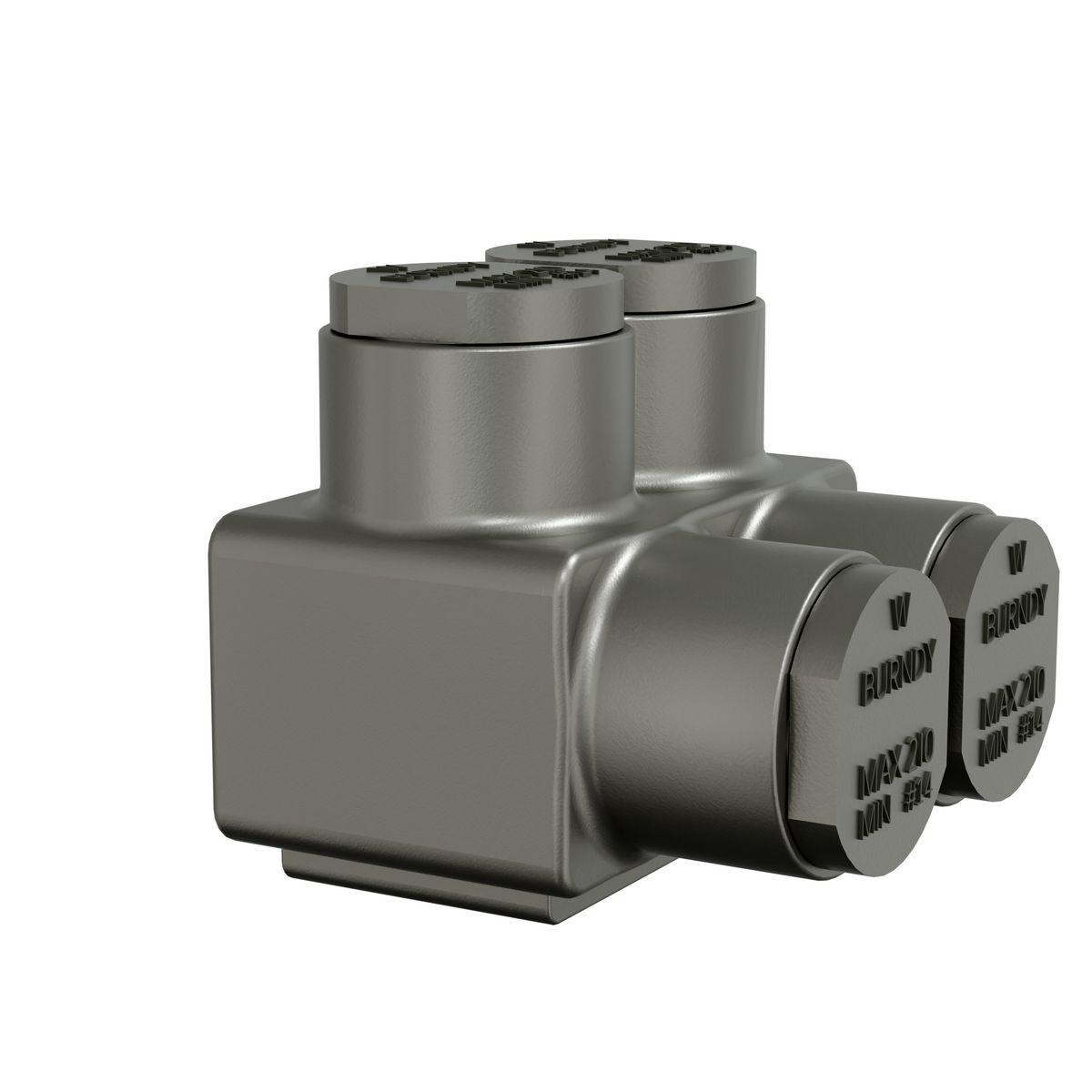

Aluminum Multiple Tap Connector, UV Rated Black, 2 Port, 1 Sided Entry, 14-2/0 AWG. Oxide inhibitor is pre-installed.

Technical Information

Applications
Indoor use, Copper or Stranded Aluminum
Conductor Size
1 AWG
Connection Type
Multi Tap
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size
1.38 IN Height X 1.40 IN Width X 1.52 IN Length
Temperature Rating
194degrees F
Type
1-Sided Entry, Multi-Port
Voltage
600 V

Manufacturer Information

Brand
Burndy
Sub Brand
Mole™, Unitap™

General Product Info

12-Digit UPC
781810287484
GTIN
00781810287484

Dimensions

Height
1.38 in
Length
1.52 in
Overall Length
1.52 in
Width
36 mm

Certifications & Compliance

Country of Origin
USA
CSA
No
Overview
  • Range-taking capability reduces the number of connectors necessary to carry in inventory
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
