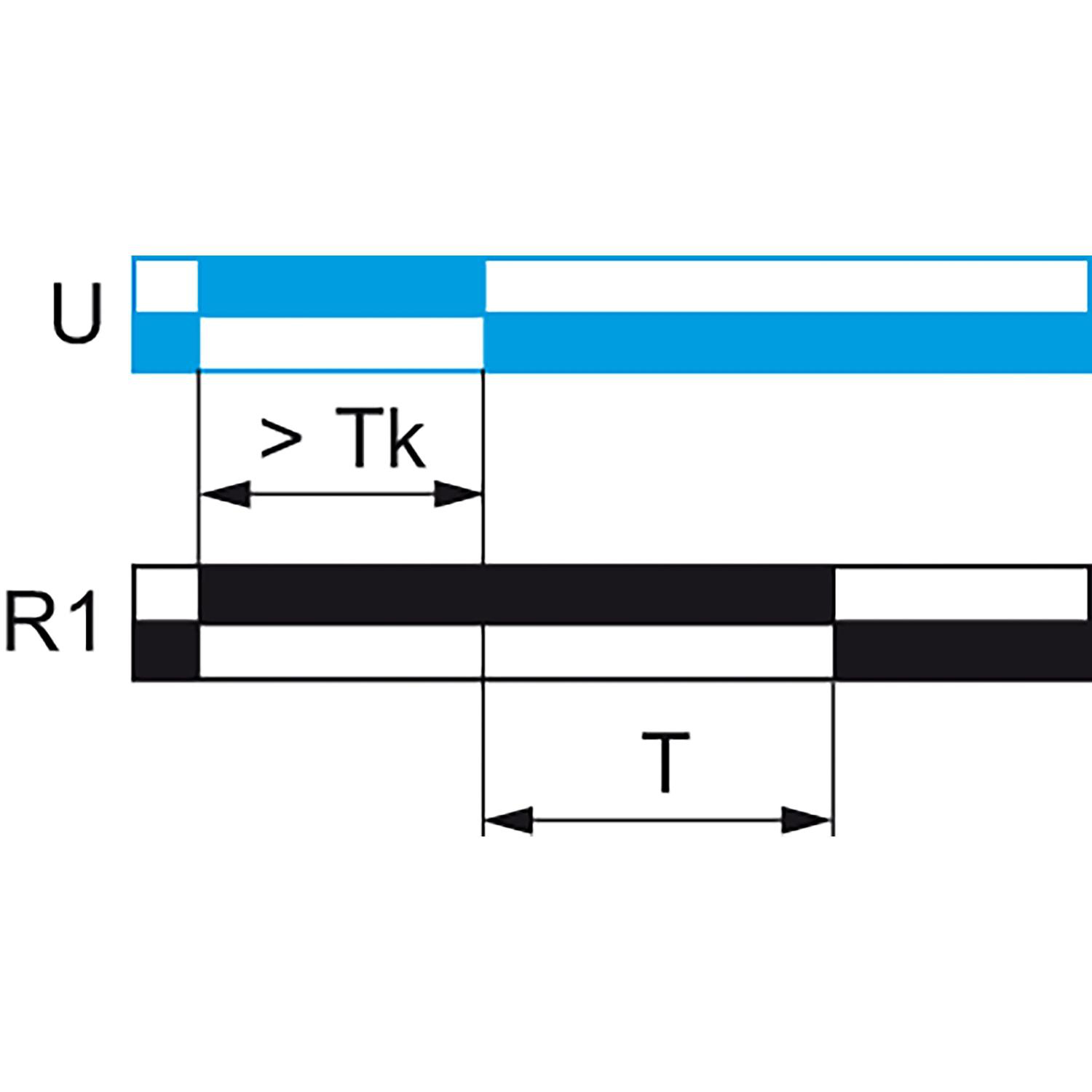

SINGLE FUNCTION RELAY, HARMONY TIMER RELAYS, 5A, 1 CO, 0.05S.......10MIN, DELAY ON DE ENERGIZATION, 24...240V AC DC

Manufacturer: Telemecanique Controls | Catalog # RE22R1KMR | Electrozad South Part # 407315
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Technical Drawing
This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours, has an output rating of 5 amperes and it is 22.5 millimeters wide. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Contact Configuration
1 C/O TIMED CONTACT, CADMIUM FREE
Contact Rating
5 A;5 A;1250 VA
Control Type
Rotary knob
Dielectric Strength
1 mA
Input Voltage
2.4 V
Line Rated Current
5 A
Net Weight
0.1 kg
Operating Temperature
-20-60 Adegrees C
Size
0.89 in
Standard
IEC 61812-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 3.3 MMA² AWG 20...AWG 12) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA² AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA² AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA² AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Relay;Single function relay

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480792451
GTIN
03606480792458
Housing Material
Self-extinguishing
Weight
0.1 kg

Dimensions

Width
0.89 in

Certifications & Compliance

Certifications
CCC,CE,CSA,EAC,GL,RCM,UL
Country of Origin
Indonesia
