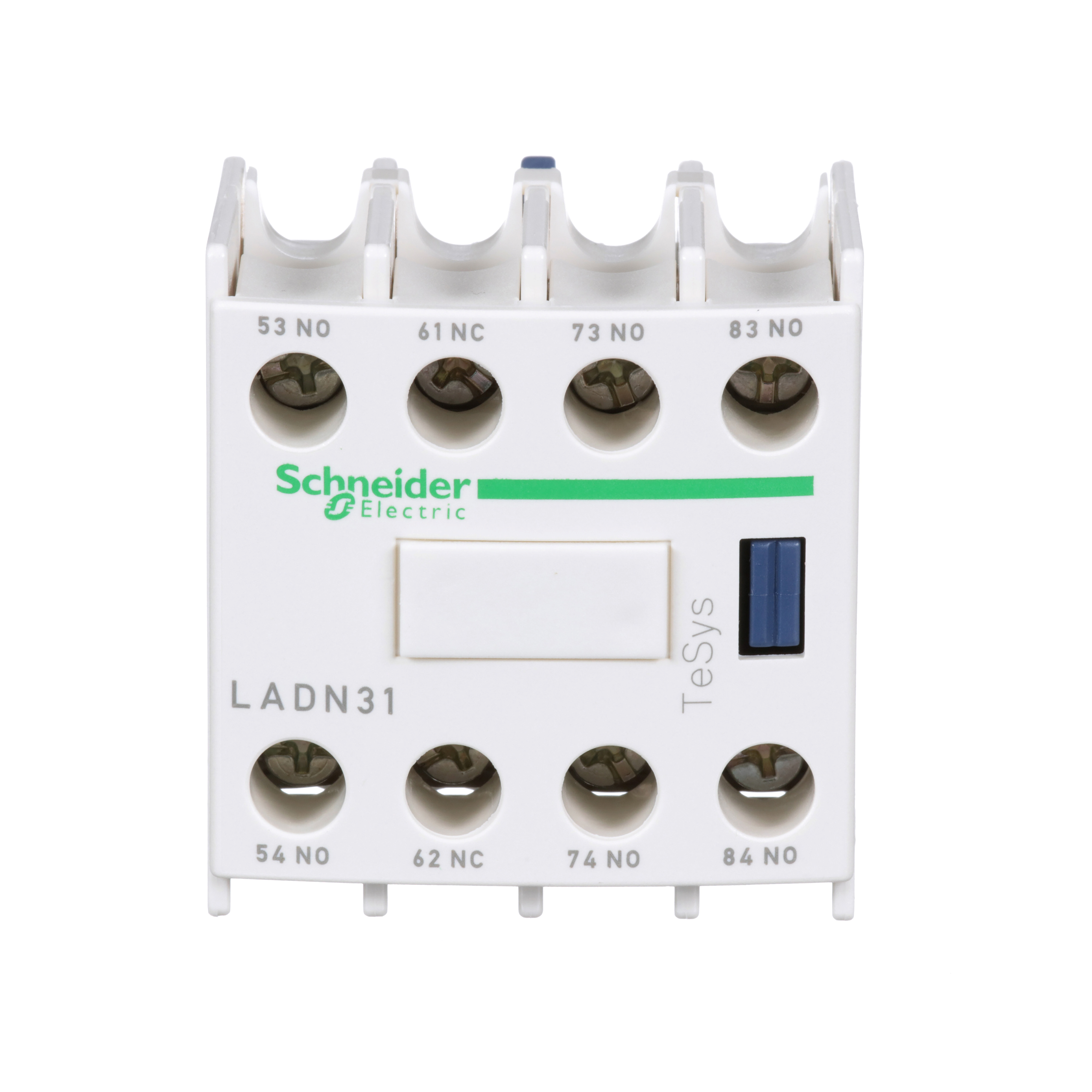

Image thumbnail 1

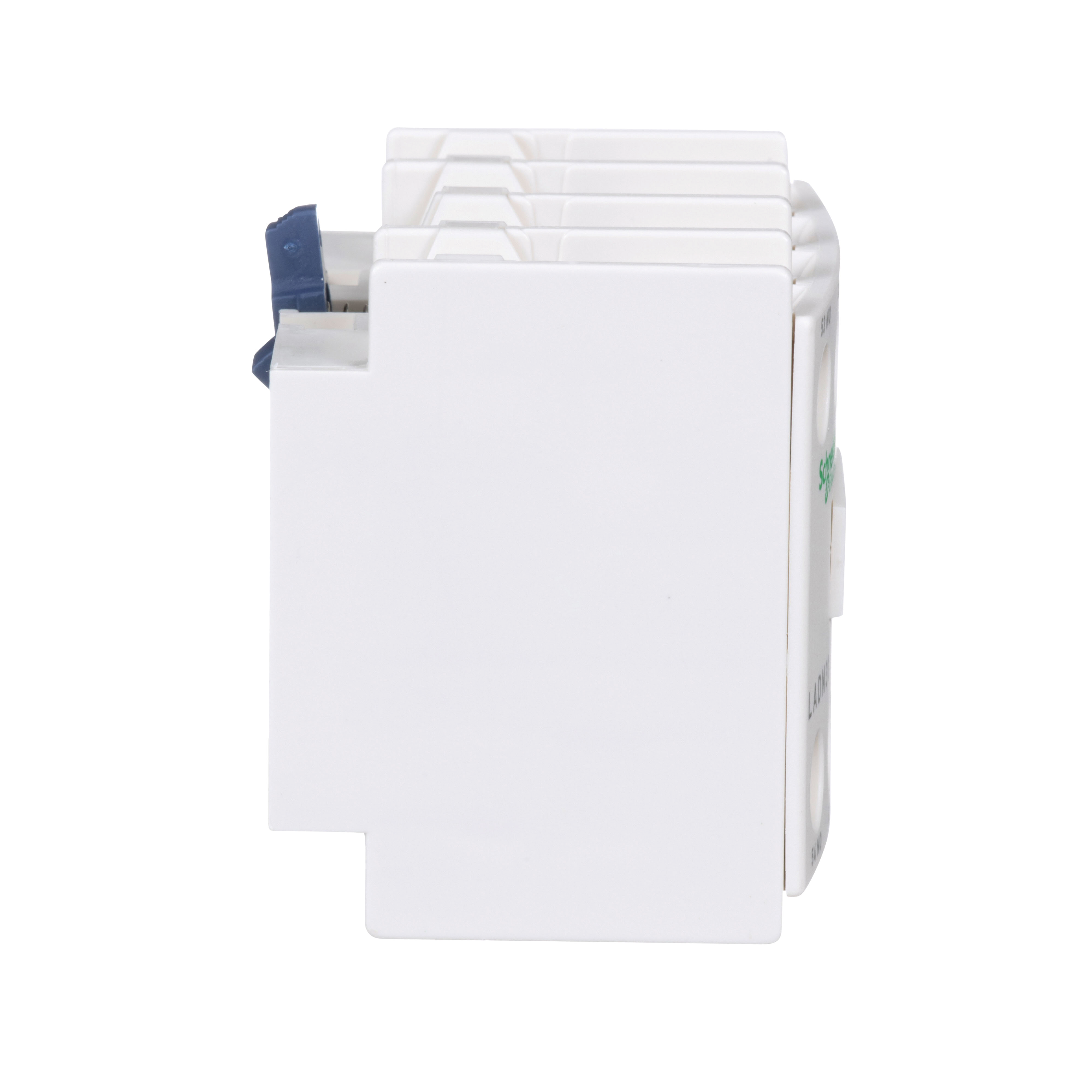

Image thumbnail 2

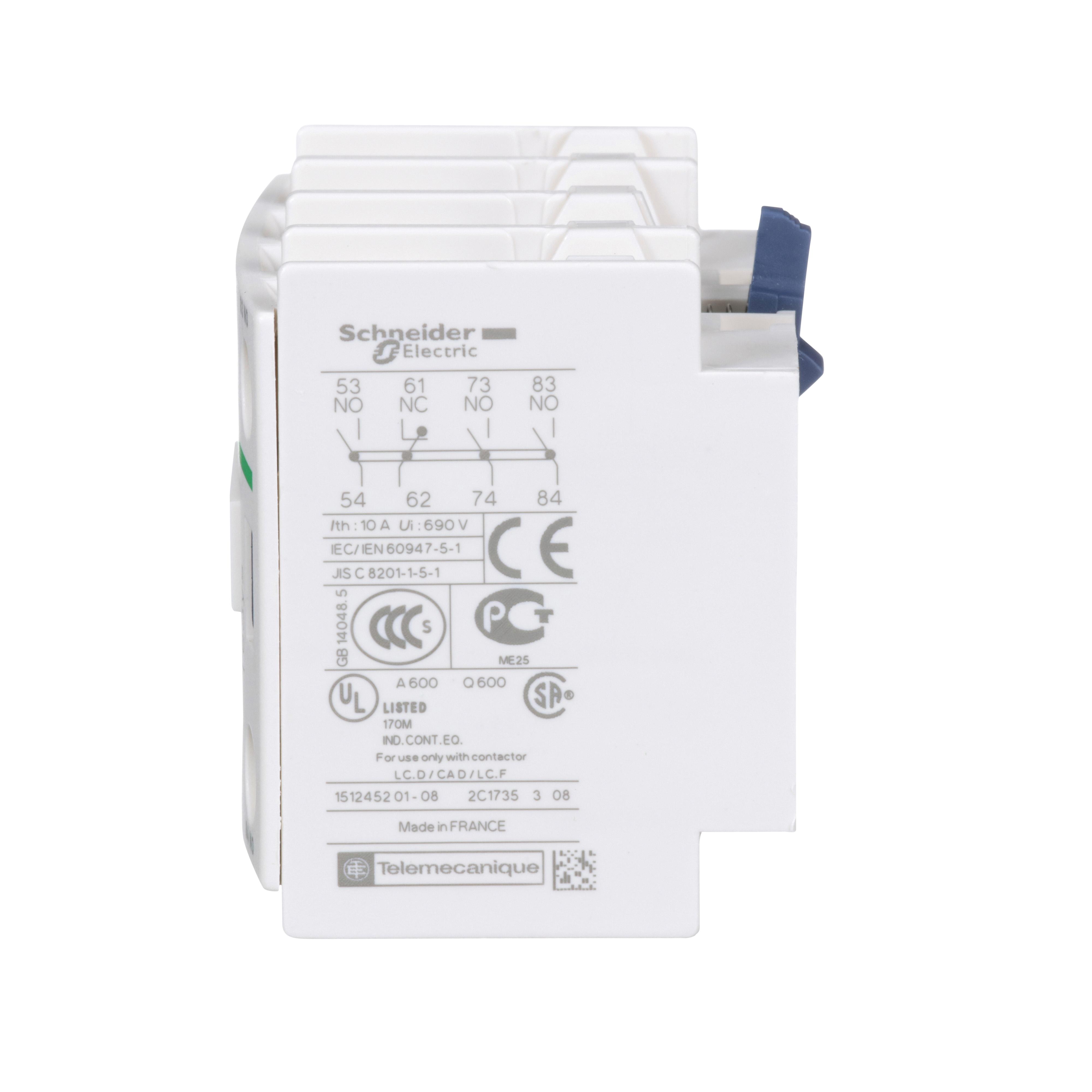

Image thumbnail 3

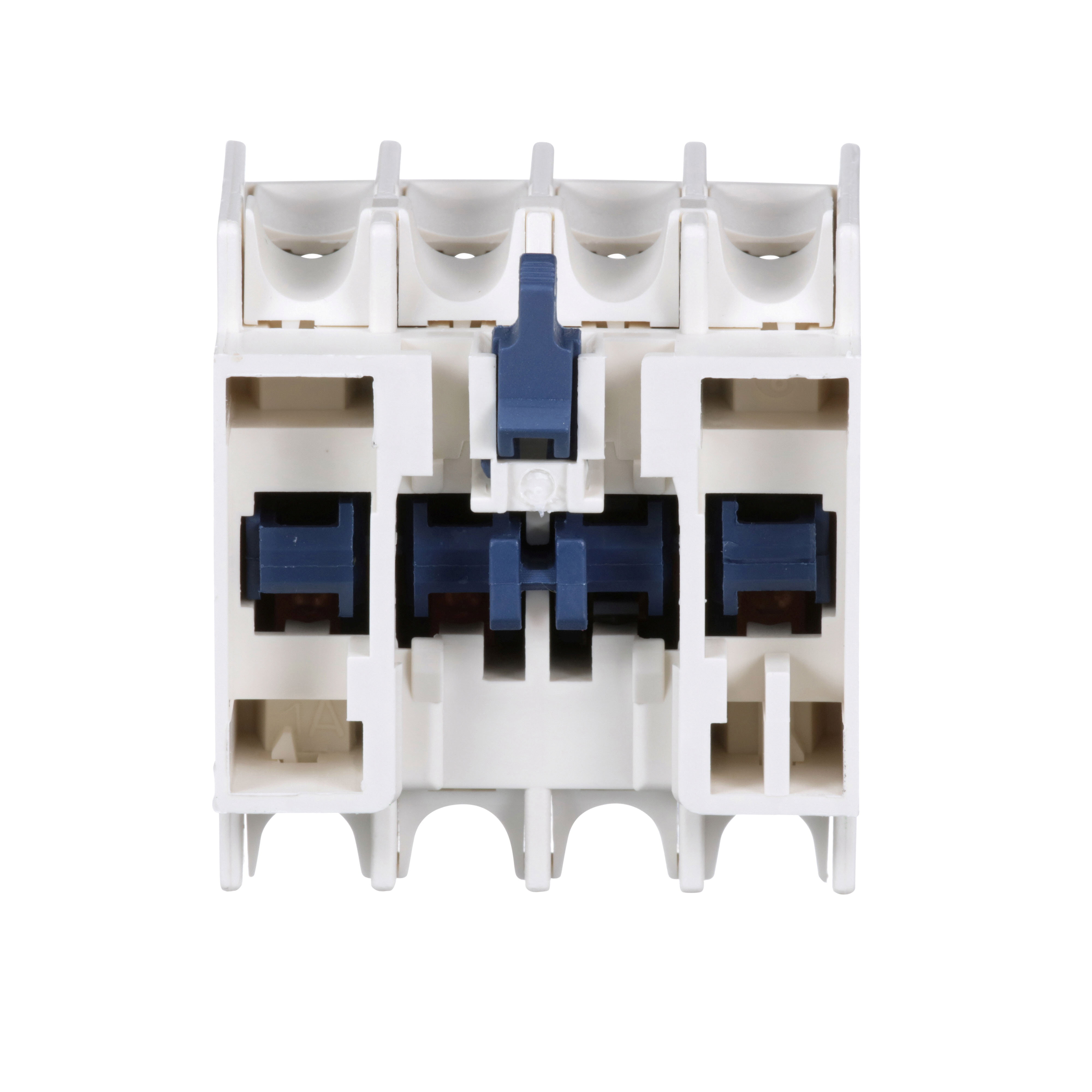

Image thumbnail 4
To:
CC:

TESYS DECA, AUXILIARY CONTACT BLOCK, 3 NO AND 1 NC, TOP MOUNT, SCREW CLAMP TERMINALS, FOR LC1D09 TO LC1D150 CONTACTORS

Manufacturer: Schneider Electric | Catalog # LADN31 | Electrozad South Part # 407142
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. TeSys Deca contactors have been designed for perfect integration into control systems. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.

Technical Information

Applications
CR1F,TESYS D CR1F CONTACTOR
Coil Voltage
690 V AC 25...400 HZ
Contact Configuration
3 NO + 1 NC
Contact Rating
10 A 60 A°C
Net Weight
0.05 kg
Operating Temperature
-5-60 Adegrees C
Size
1.65 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-2.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA²SOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA²SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA²SOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA²SOLID WITHOUT CABLE END
Type
Auxiliary contact block
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys D;TeSys Deca

General Product Info

12-Digit UPC
338911038417
Color
Gray
GTIN
03389110384178
Weight
0.05 kg

Dimensions

Depth
42 mm
Height
1.89 in
Warranty Length
18 mth
Width
1.73 in

Certifications & Compliance

Certifications
CB,CCC,CSA,EAC,UKCA,UL
Country of Origin
USA
