Decora In-Wall Combination Occupancy Sensor with Fan Switch, 1/4 HP,

Manufacturer: Leviton Manufacturing | Catalog # DOD05-1LW | Electrozad South Part # 407113
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual

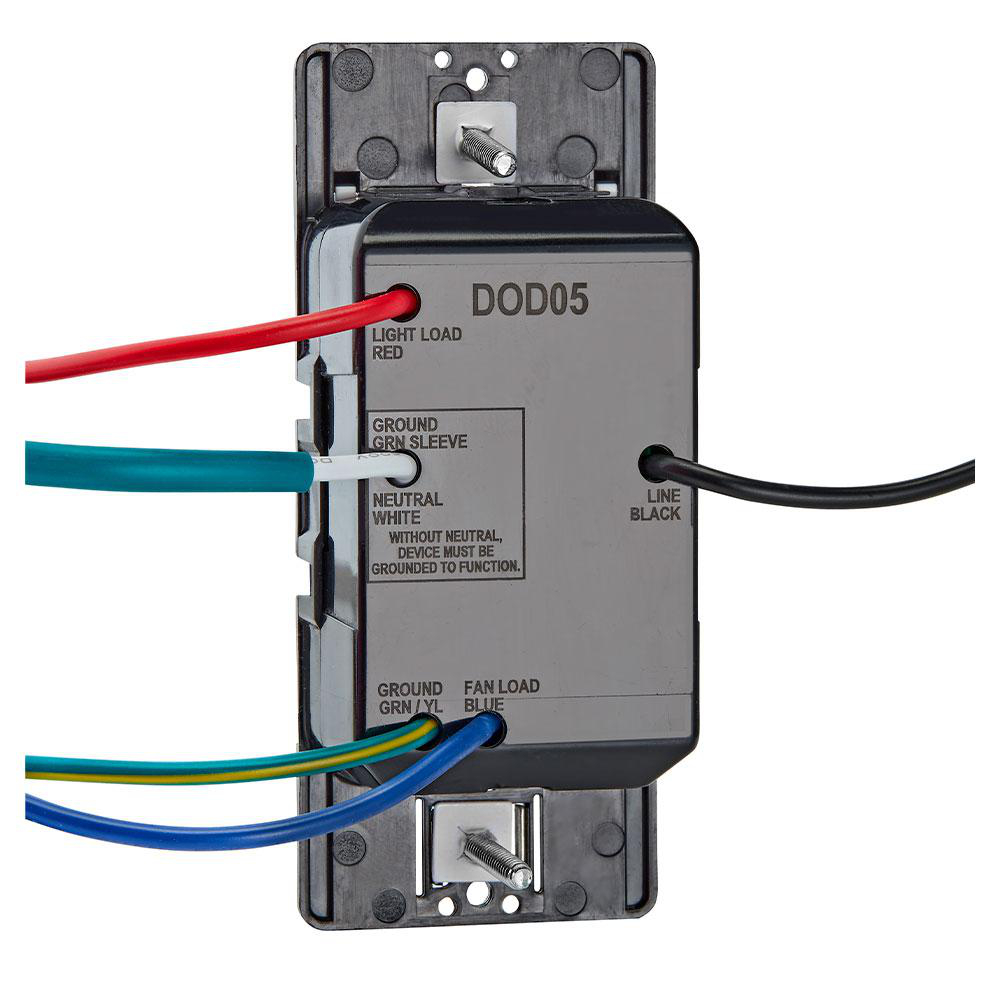

Decora Combination Occupancy Sensor with Fan Switch, single pole/single pole. Fan Load (Blue Wire): 1/4 HP Fan, 300W LED/CFL, 600W Incandescent/Halogen, 400VA MLV/ELV. Light Load (Red Wire): 150W LED/CFL, 250W Incandescent/Halogen, 200VA MLV, 250VA ELV, 2A Resistive. Can be installed with or without a neutral wire, wallplate sold separately. Can be used to comply with the requirements California Title 24, Part 6, Automatic-off Controls and IECC ... White

Technical Information

Grade
Residential
LED Color
Green,Red
Mounting Type
Surface

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477985502
Color
White
GTIN
00078477985502

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
China
