Lug 1hole std barl cu rd 6AWG 5/16in Color-Keyed

Manufacturer: ABB | Thomas & Betts | Catalog # 54104 | Electrozad South Part # 406876
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual Technical Drawing

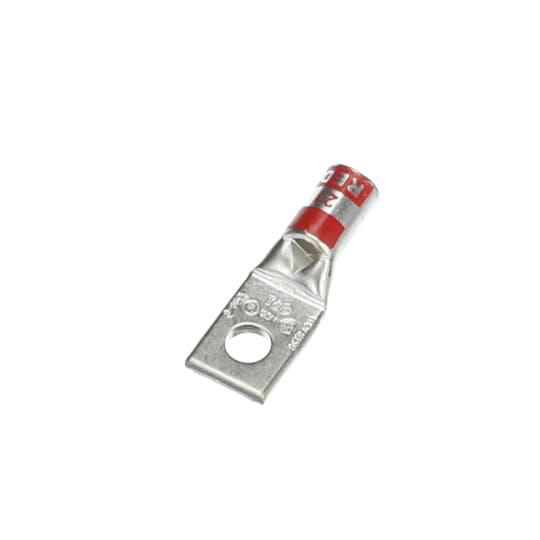

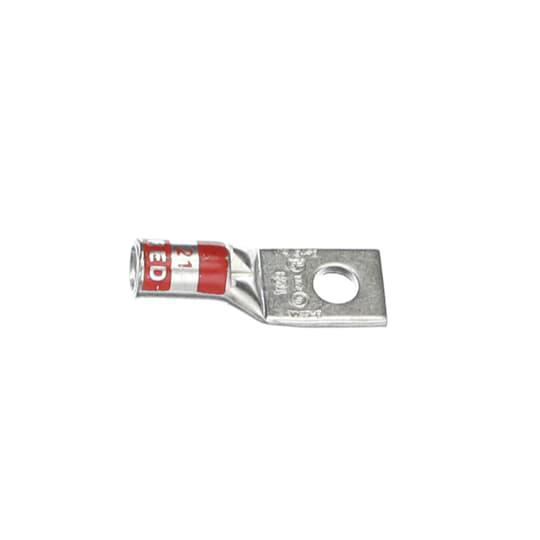

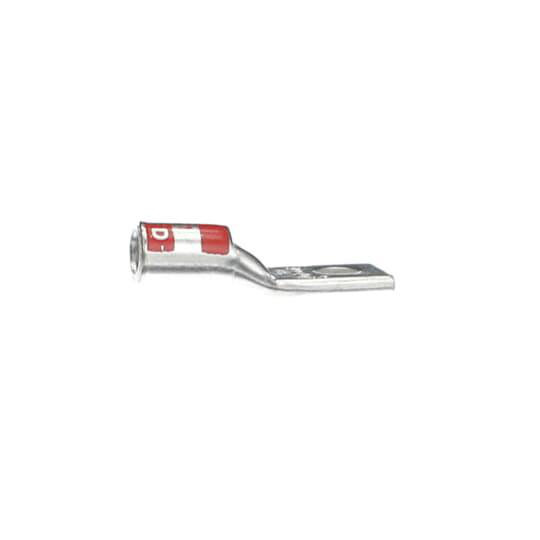

Color-Keyed® one hole lug with standard barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 5/16 inch bolt is used and the lug is used for 600 V to 35 kV applications.

Technical Information

Barrel Length
Standard
Barrel Shape
Standard
Barrel Type
Standard, Straight
Cable Size
8 AWG
Conductor Size
8 AWG
Insulated?
No
Material
Copper
Number of Holes
1
Number of Studs
1
Stud Size
#10
Tongue Angle
Straight
Tongue Width
Standard
Type
Standard Barrel
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210541044
Color
Red
Finish
Tin Plated
GTIN
05414363143260
Shape
Round
