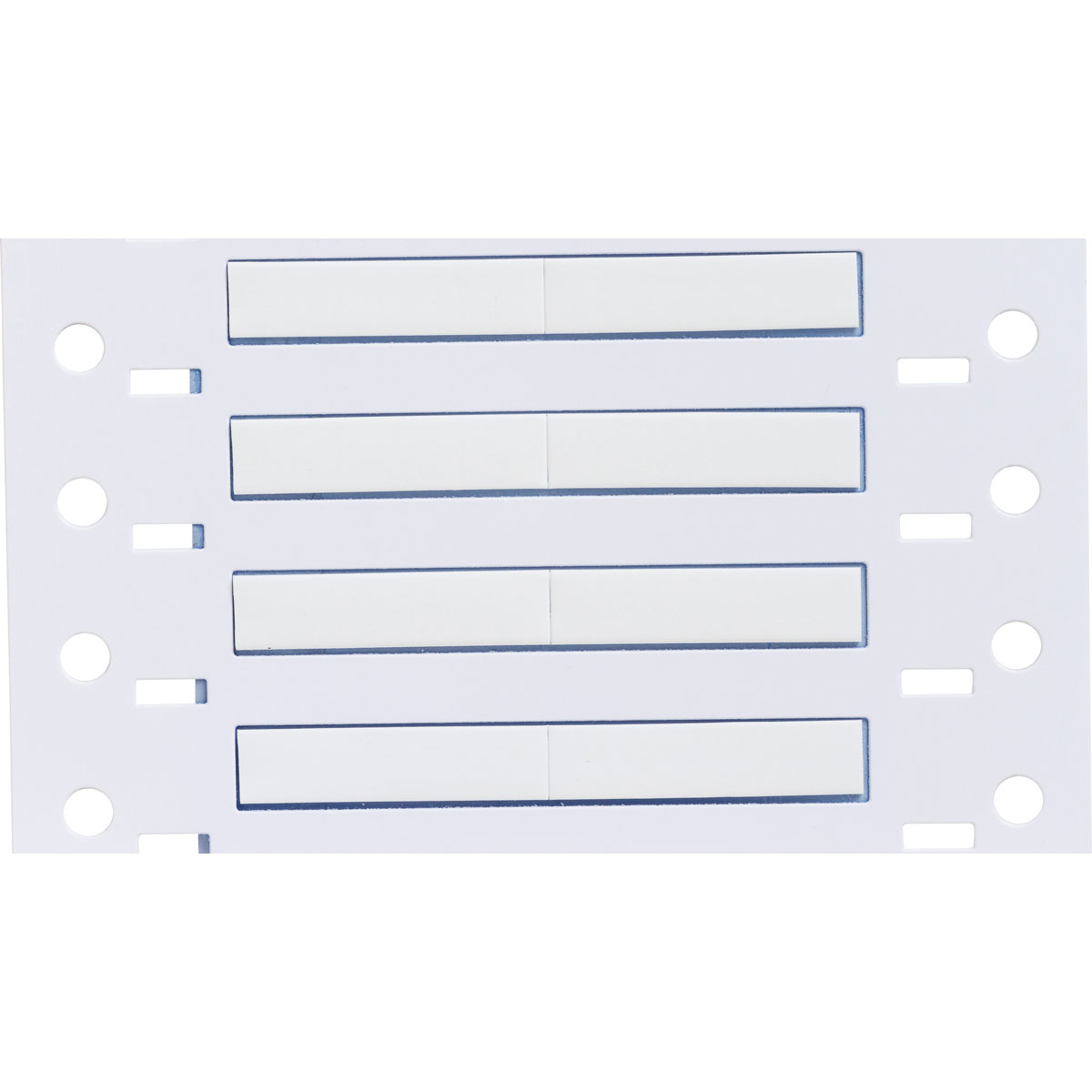

Sleeve wire marker 1x0.235" 5000pk

Manufacturer: Brady | Catalog # PS-125-2-WT-2 | Electrozad South Part # 404073

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
22-16 AWG
Material
B-342 Heat Shrink Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Heat Shrink Tubing
Wire Size
0.046-0.11 in

Manufacturer Information

Brand
Brady
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820112150
Color
White
Finish
Matte
GTIN
00662820112150
Used With
Brady IP and Bradyprinter™ PR Plus Series Thermal Transfer Label Printer

Dimensions

Diameter
0.125 in
Height
0.235 in
Length
0.235 in
Roll Width
2 in
Width
1 in
