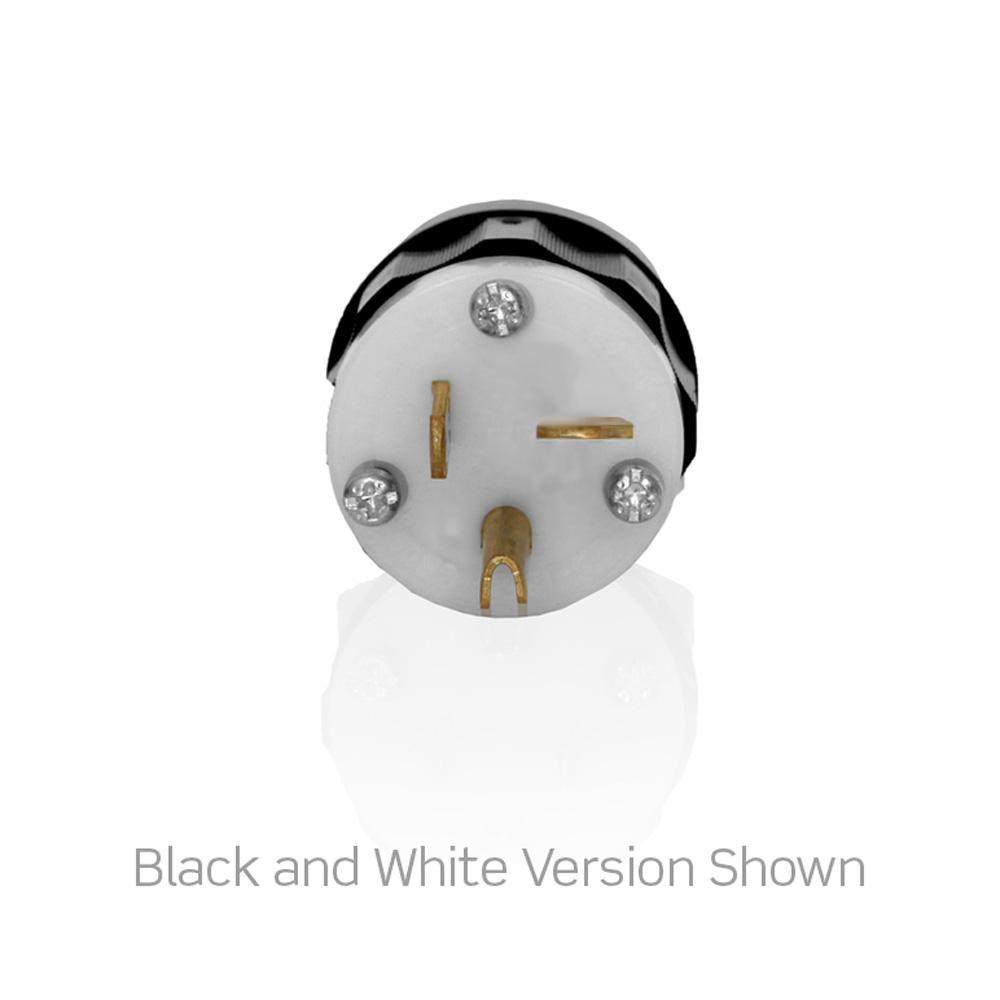

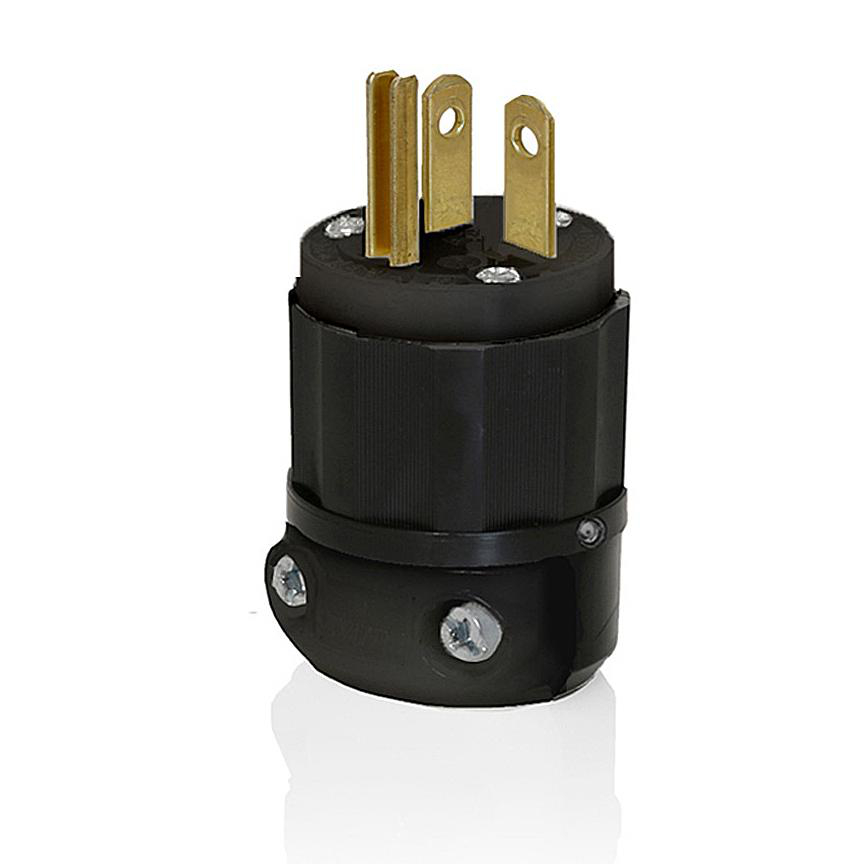

Plug straight 2P 3W 125V 20AMP black

Manufacturer: Leviton Manufacturing | Catalog # 5366-PLB | Electrozad South Part # 404069
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
The Leviton line of straight blade plugs and connectors includes: black white industrial grade devices that resist impact, corrosion and chemicals; Wetguard® for water or moisture resistance; Dustgard® for dust and dirt; Python™ with an innovative interlocking design; rugged nylon flanged and outlets; and integrated inlets and outlets with weather resistant covers.

Technical Information

Amperage
20 A
Applications
For Industrial use
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Device Type
Straight Blade Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Super Tough Nylon
Mounting Type
Cable
NEMA
5-20P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
1.53 Dia x 1.98 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Type
Power Indication
Voltage
125 V
Wire Count
3
Wire Size
18 - 10 AWG 0.25 - 0.685 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477077139
Color
Black
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477077139

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
