LIGHT BLOCK, HARMONY XALD, XALK, FOR HEAD 22MM, UNIVERSAL LED, MOUNTING IN BACK OF ENCLOSURE, 24V AC DC

Manufacturer: Schneider Kreuznach B & W | Catalog # ZALVB1 | Electrozad South Part # 404030
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1

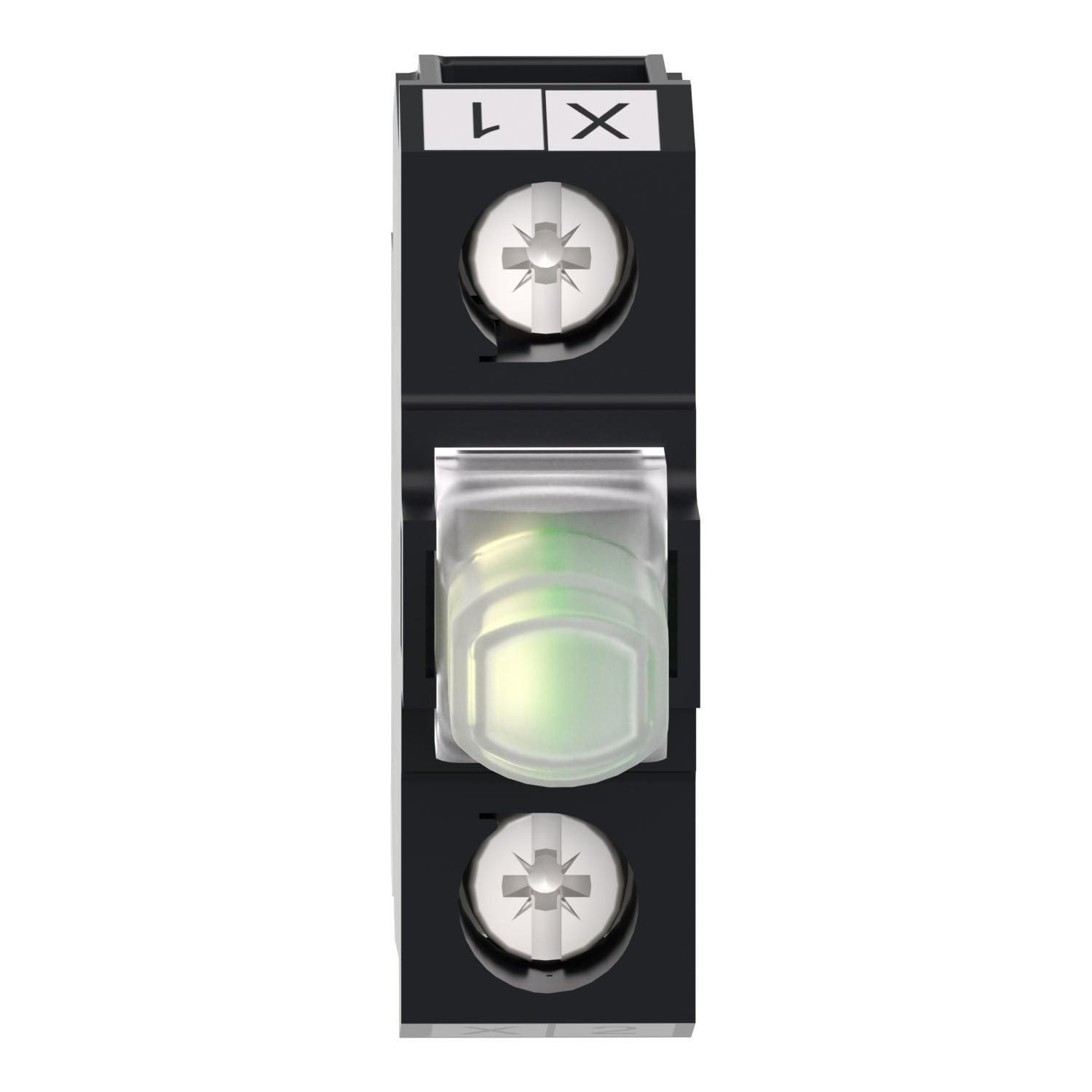

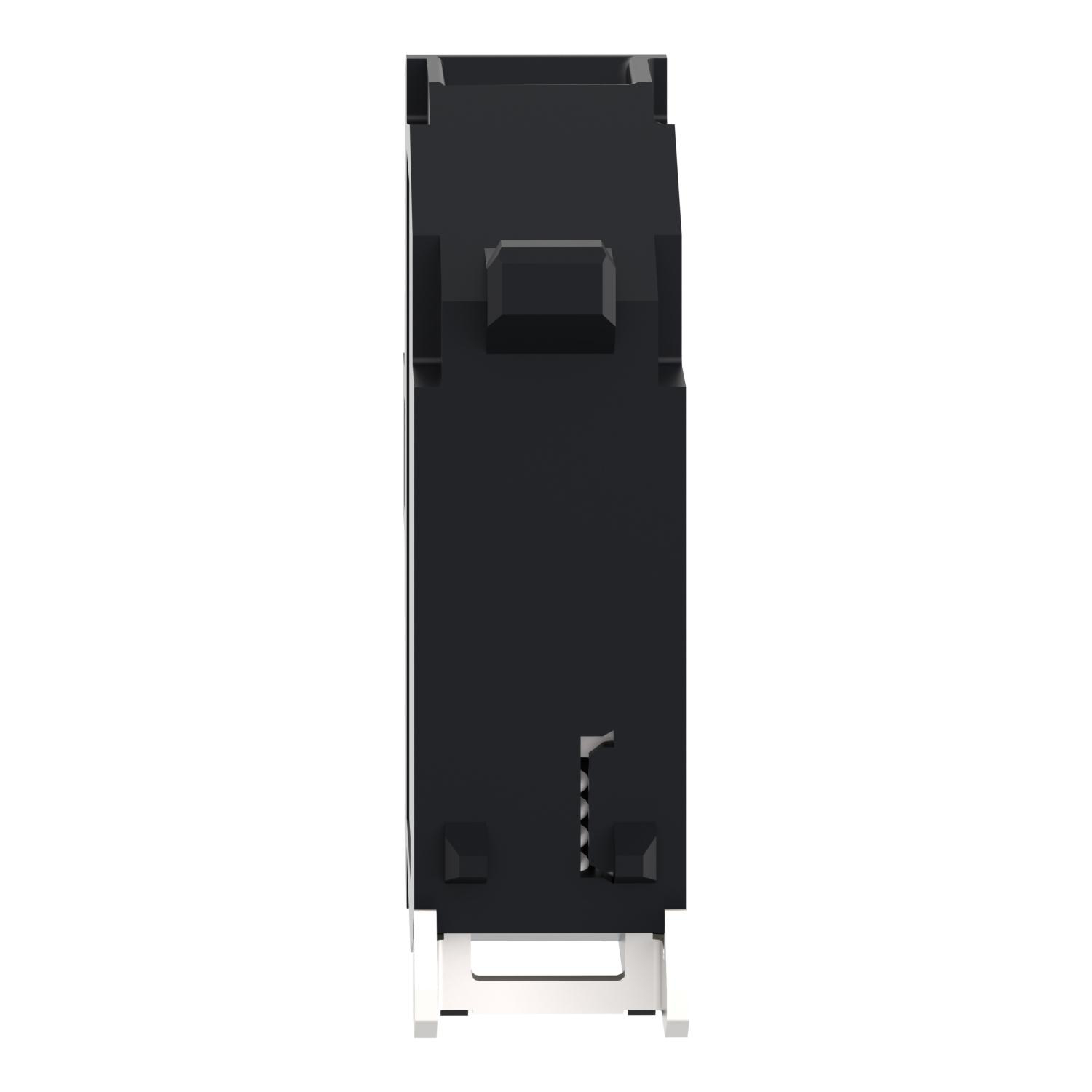

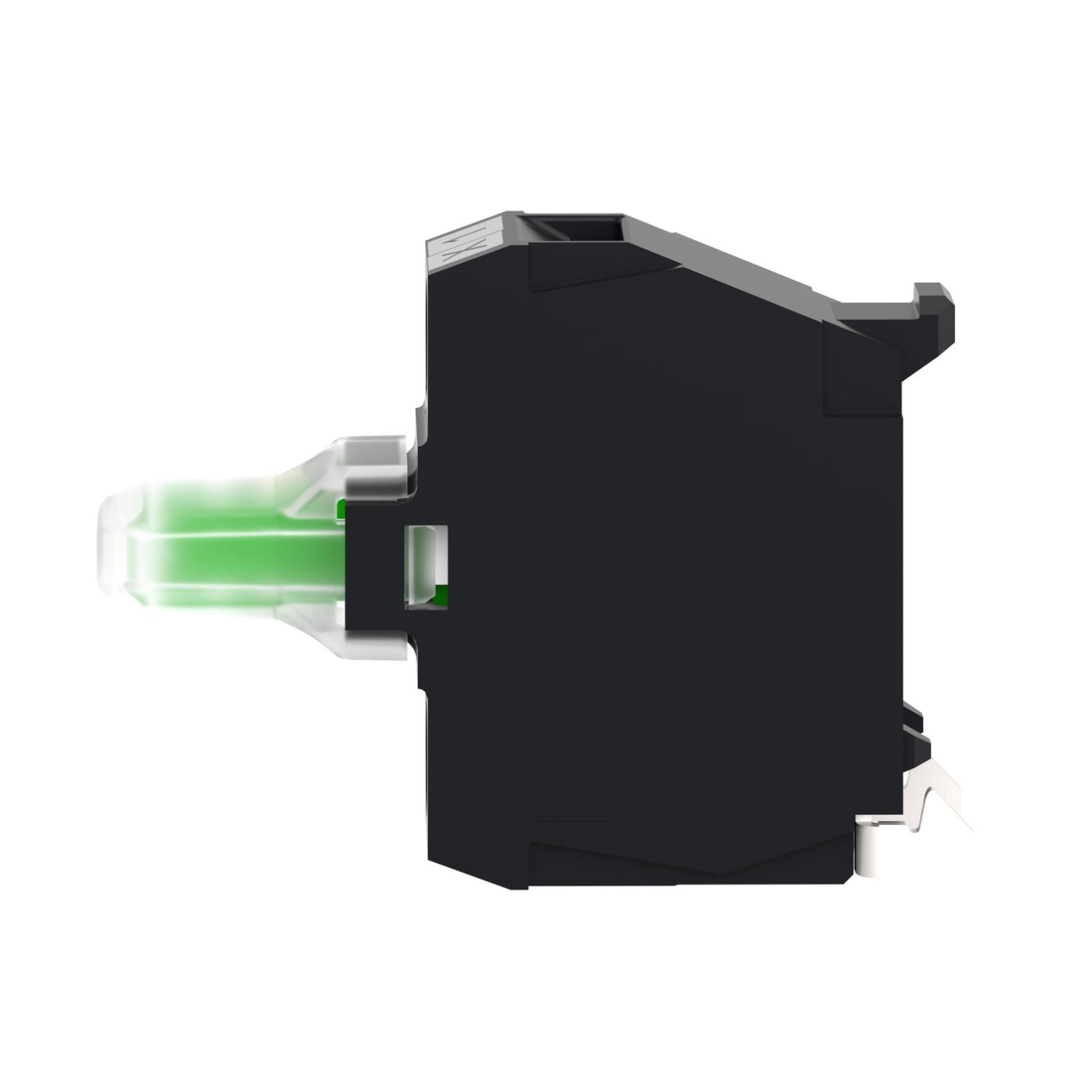

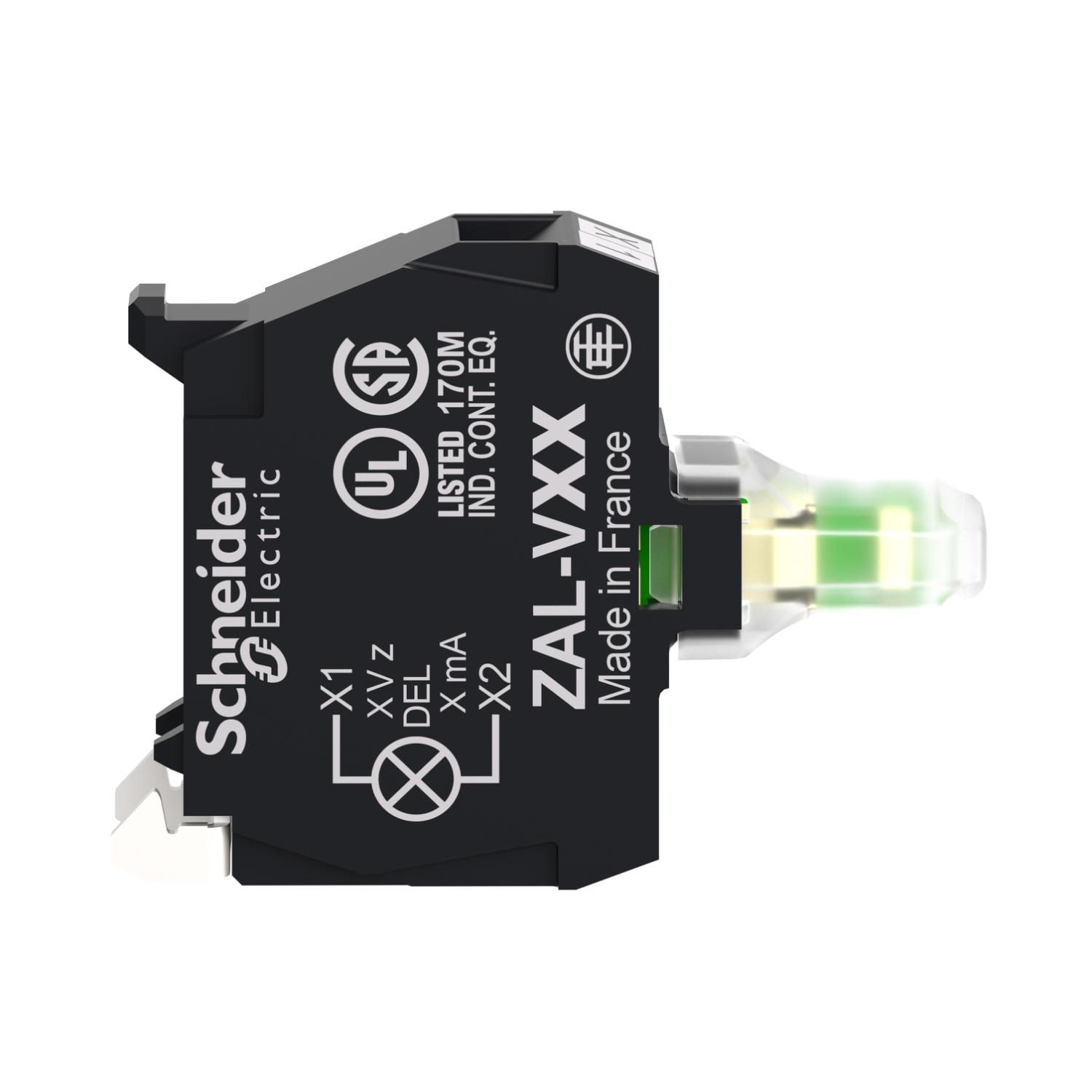

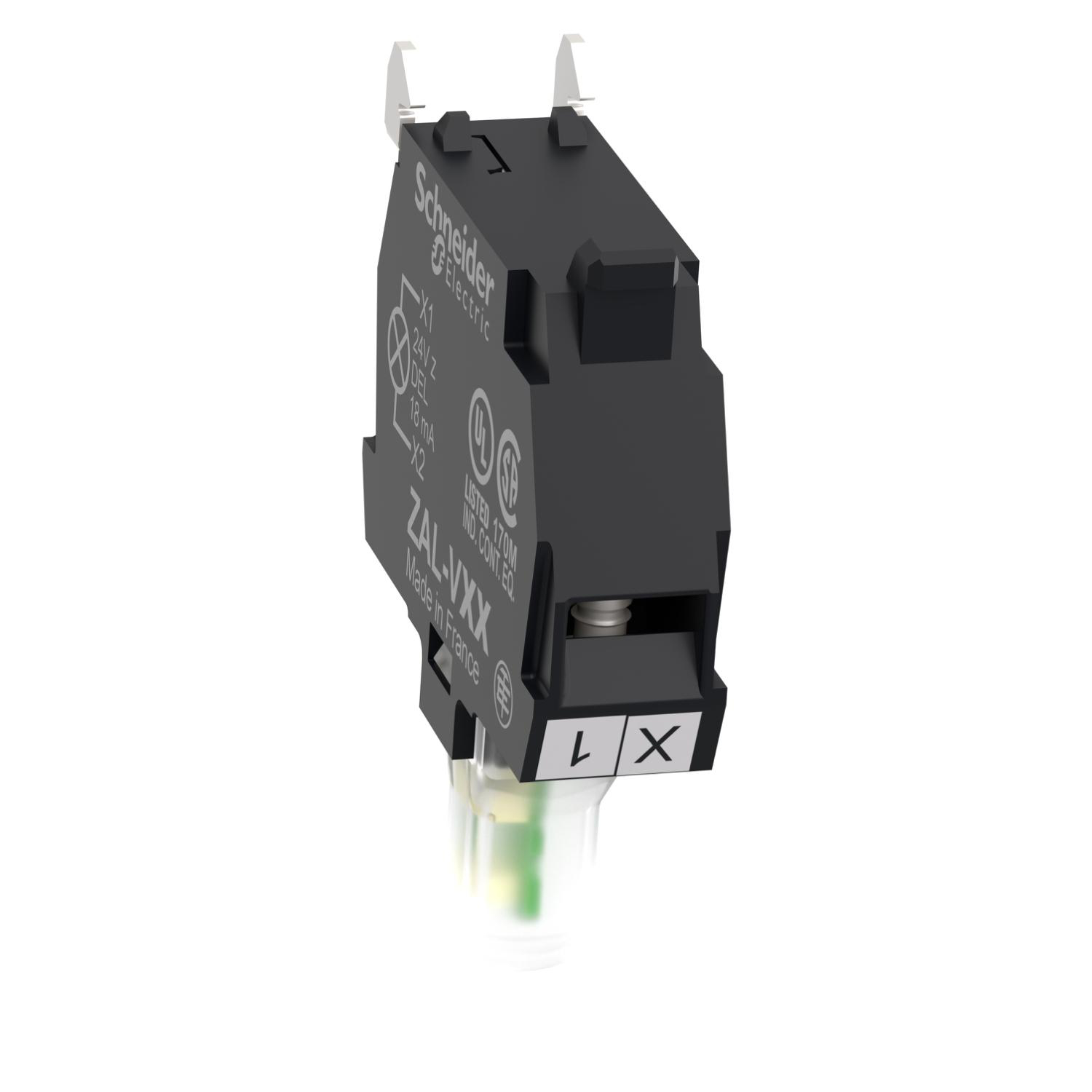

This white light block with universal LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical Information

Applications
For XB5 Ø 22 mm control and signalling units
Current
15 mA
Light Source
Universal LED
Net Weight
0.015 kg
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP TERMINALS: <= 2 X 1.5 MMA² WITH CABLE END CONFORMING TO EN/IEC 60947-1SCREW CLAMP TERMINALS: >= 1 X 0.22 MMA² WITHOUT CABLE END CONFORMING TO EN/IEC 60947-1
Type
Light block

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZALV

General Product Info

12-Digit UPC
389110115096
GTIN
03389110115093
Weight
0.015 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CSA,UL Listed
Country of Origin
France
