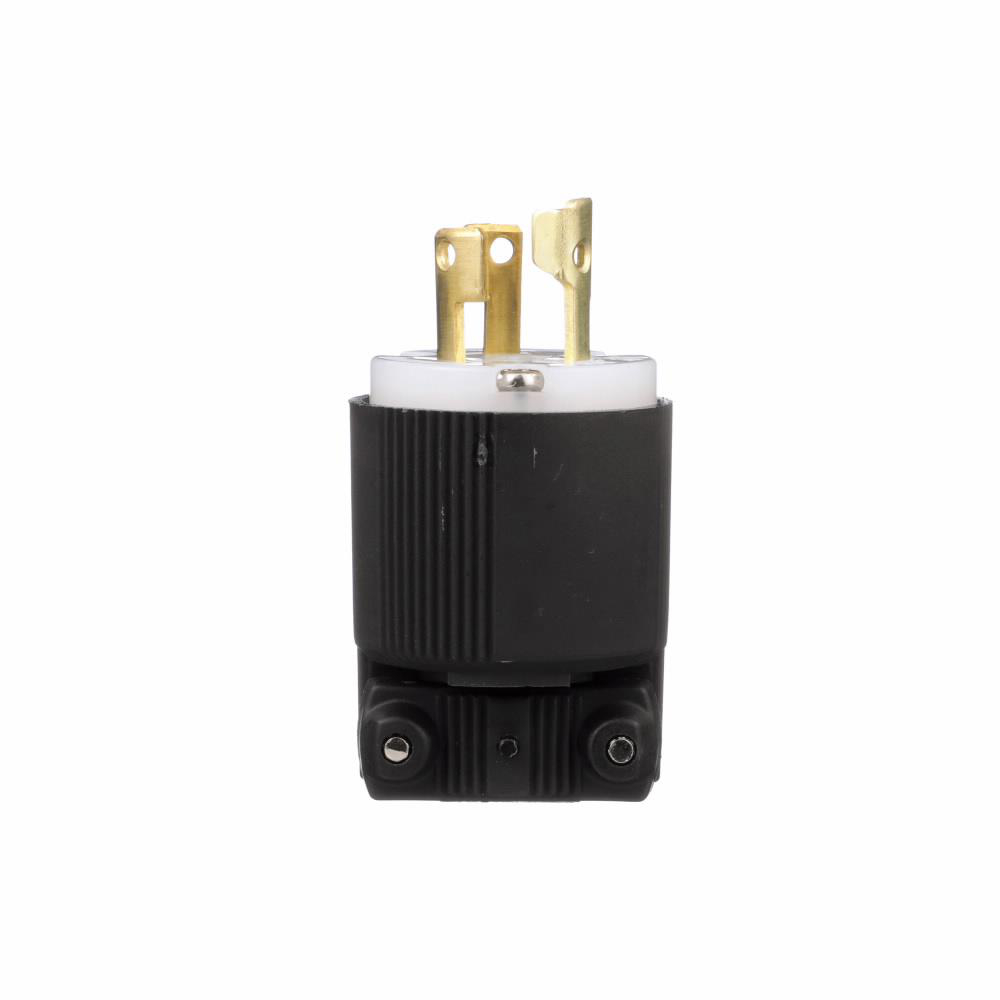

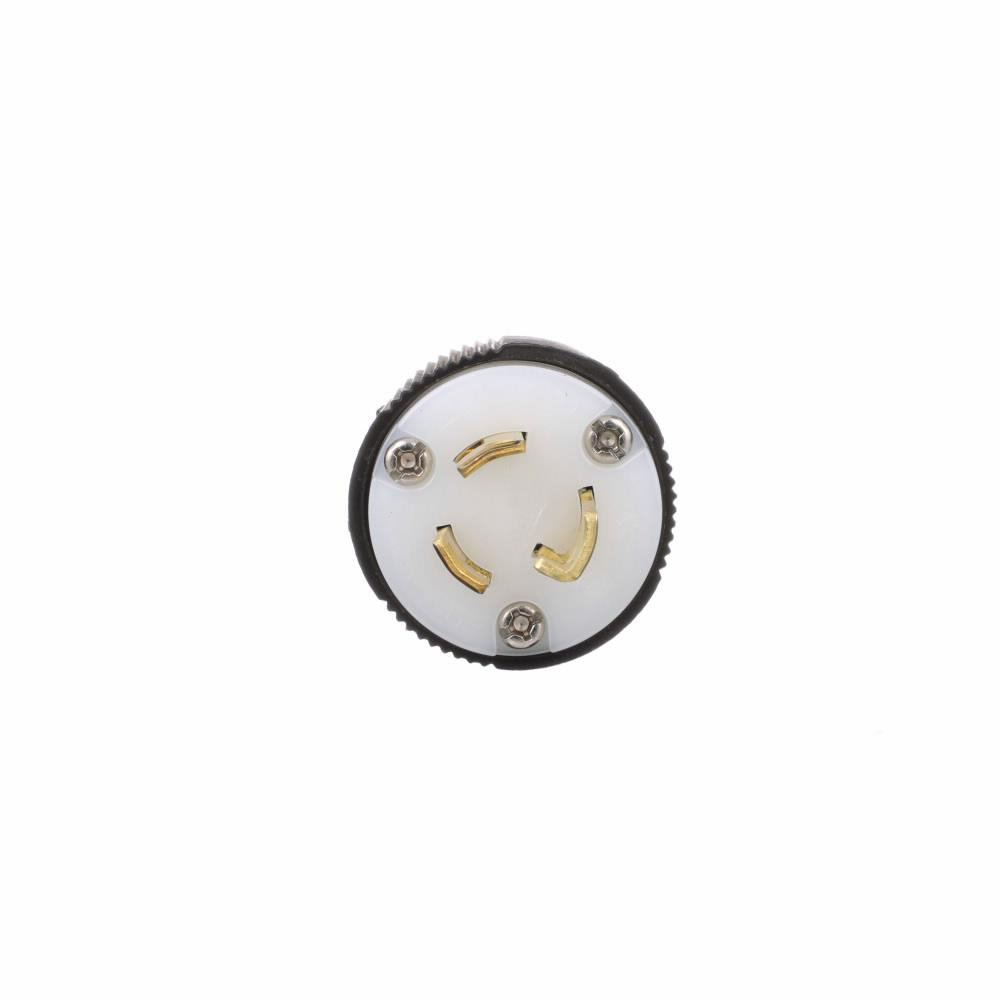

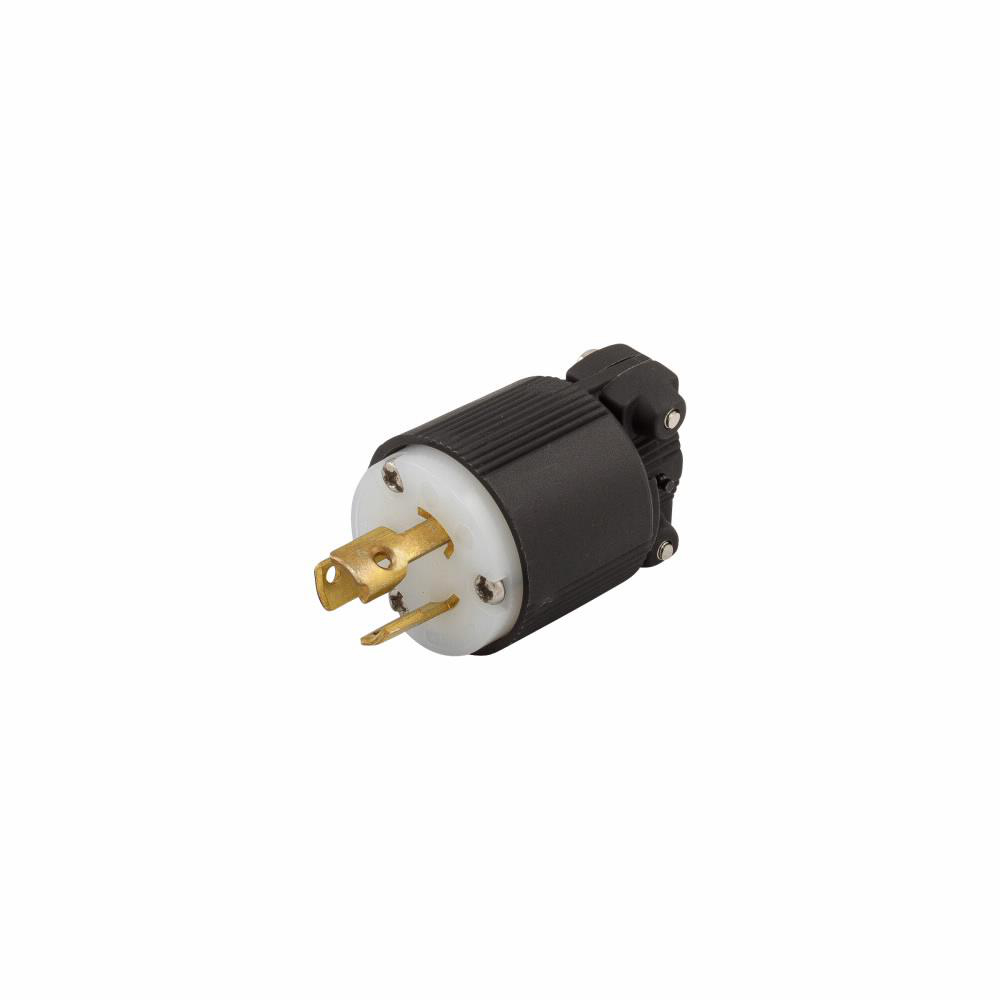

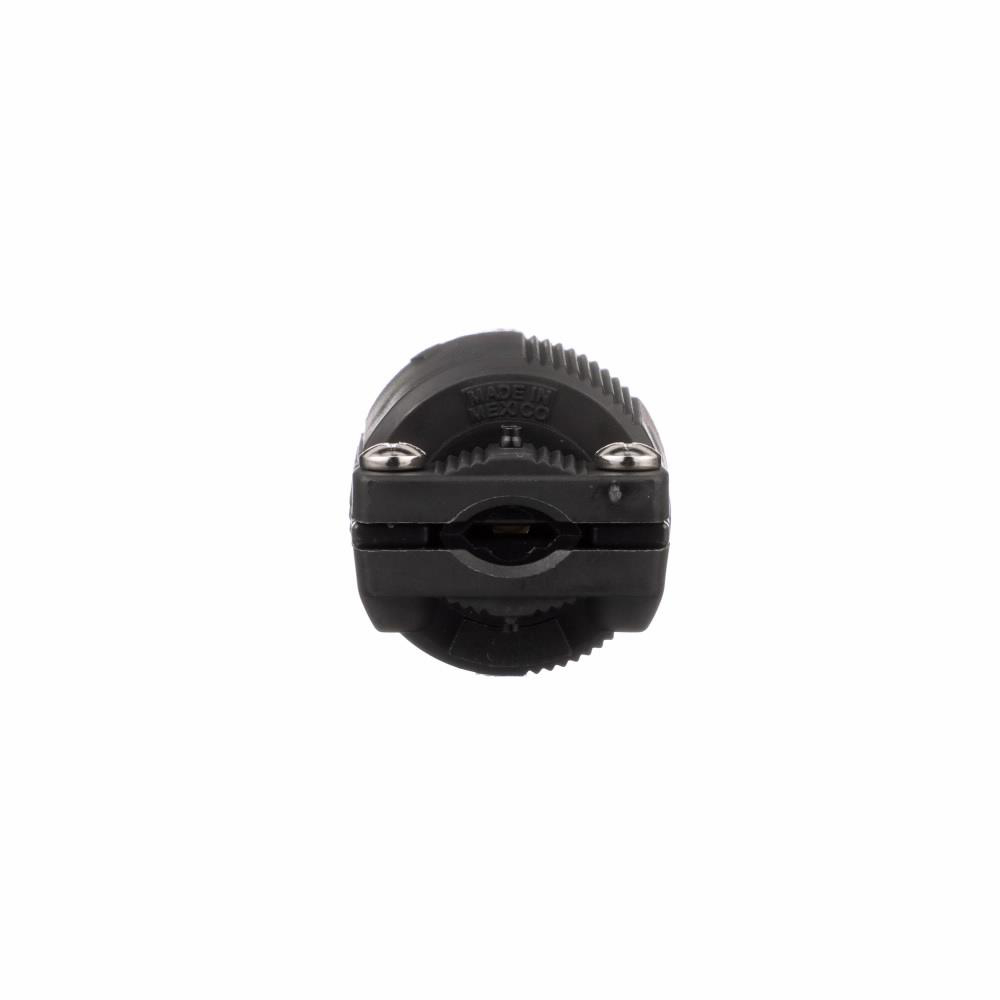

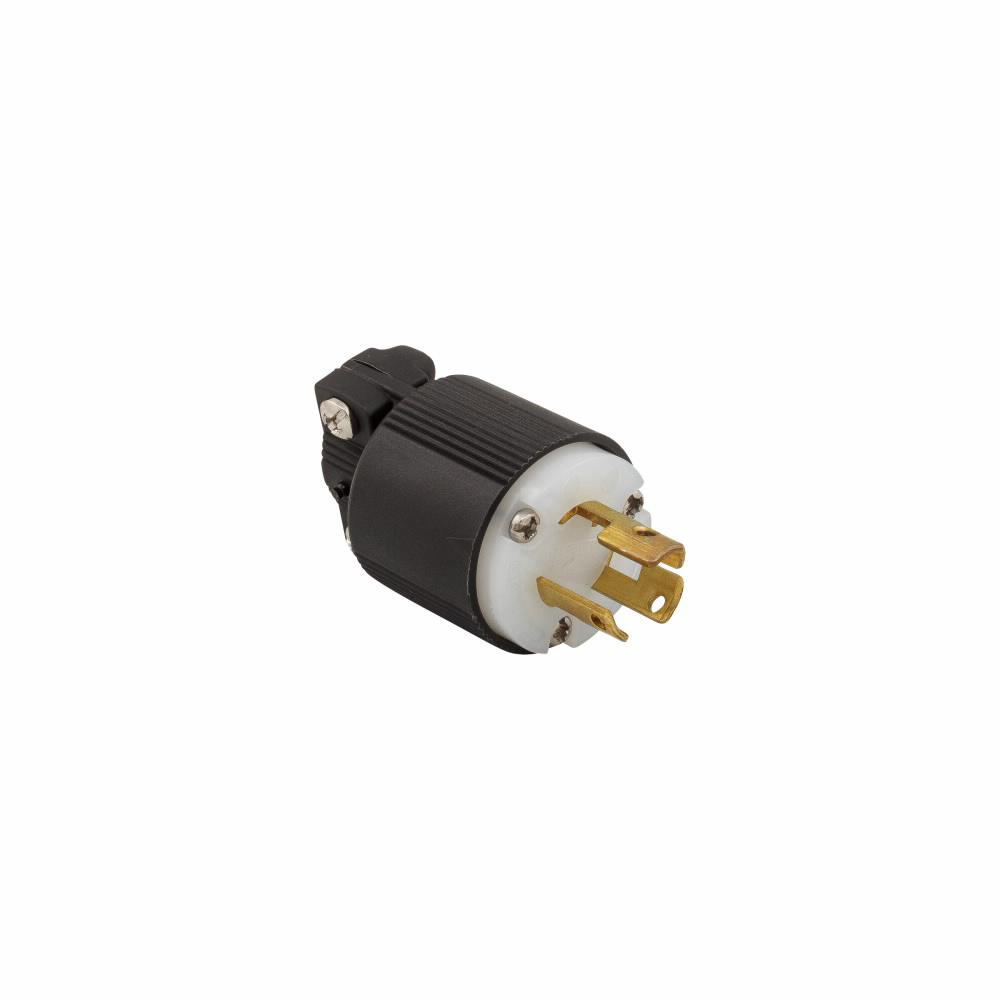

PLUG 15A 125V 2P3W H/L BW

Manufacturer: Arrow Hart | Catalog # CWL515P | Electrozad South Part # 403646
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet
Eaton Arrow Hart safety grip locking plug, #16-12AWG, 15A, Industrial, 125V, Back wiring, Black, white, Safety grip, L5-15, Two-pole, Three-wire, Nylon, 0.38 to 1 in, -40... to 60...C

Technical Information

Amperage
15 A
Applications
For Industrial Use
Conductor Size
16-12 AWG
Connection Type
Screw
Cord Range
0.33 - 0.66 in
Cord Size
0.38 - 1 in
Material
Nylon
Mounting Type
Screw
NEMA
L5-15P
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 To 60 degrees C
Temperature Rating
-40 degrees C to 60 degrees C
Type
Industrial Grade, Straight
Voltage
125 V
Wire Size
16-12 AWG

Manufacturer Information

Brand
Cooper Industries
Sub Brand
Arrow Hart, Safety Grip

General Product Info

12-Digit UPC
040893677989
Color
Black,White
Environmental Conditions
-40 To 60 °C
GTIN
00040893677989
Weight
.15 lb

Dimensions

Height
3.81 in
Length
2.47 in
Width
2.45 in
