INDICATOR BANK, HARMONY XVB, ILLUMINATED UNIT, PLASTIC, RED, 70MM, INTEGRAL FLASH DISCHARGE TUBE, 10JOULE, 24V AC/DC

Manufacturer: Schneider Kreuznach B & W | Catalog # XVBC8B4 | Electrozad South Part # 402546
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL Technical Drawing

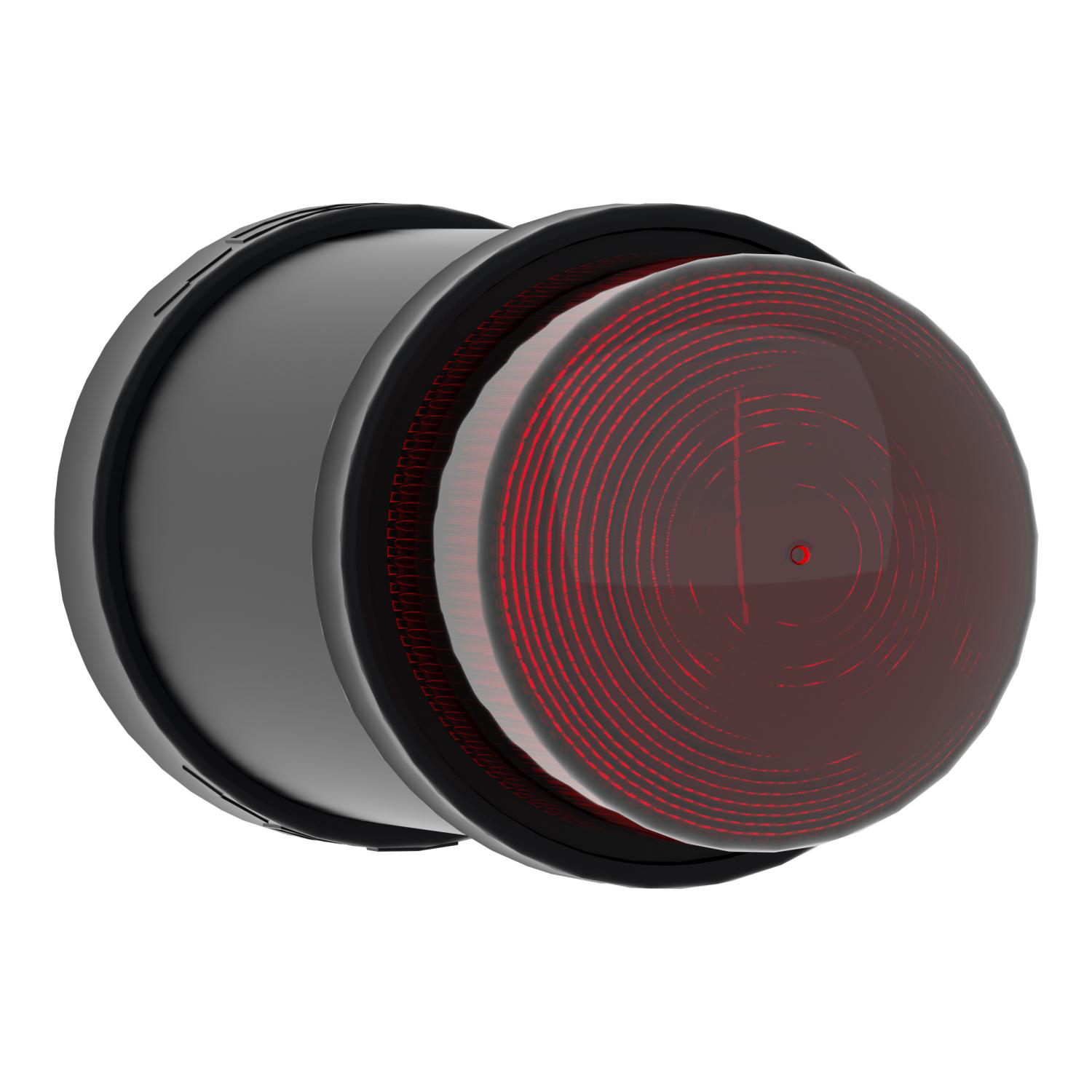

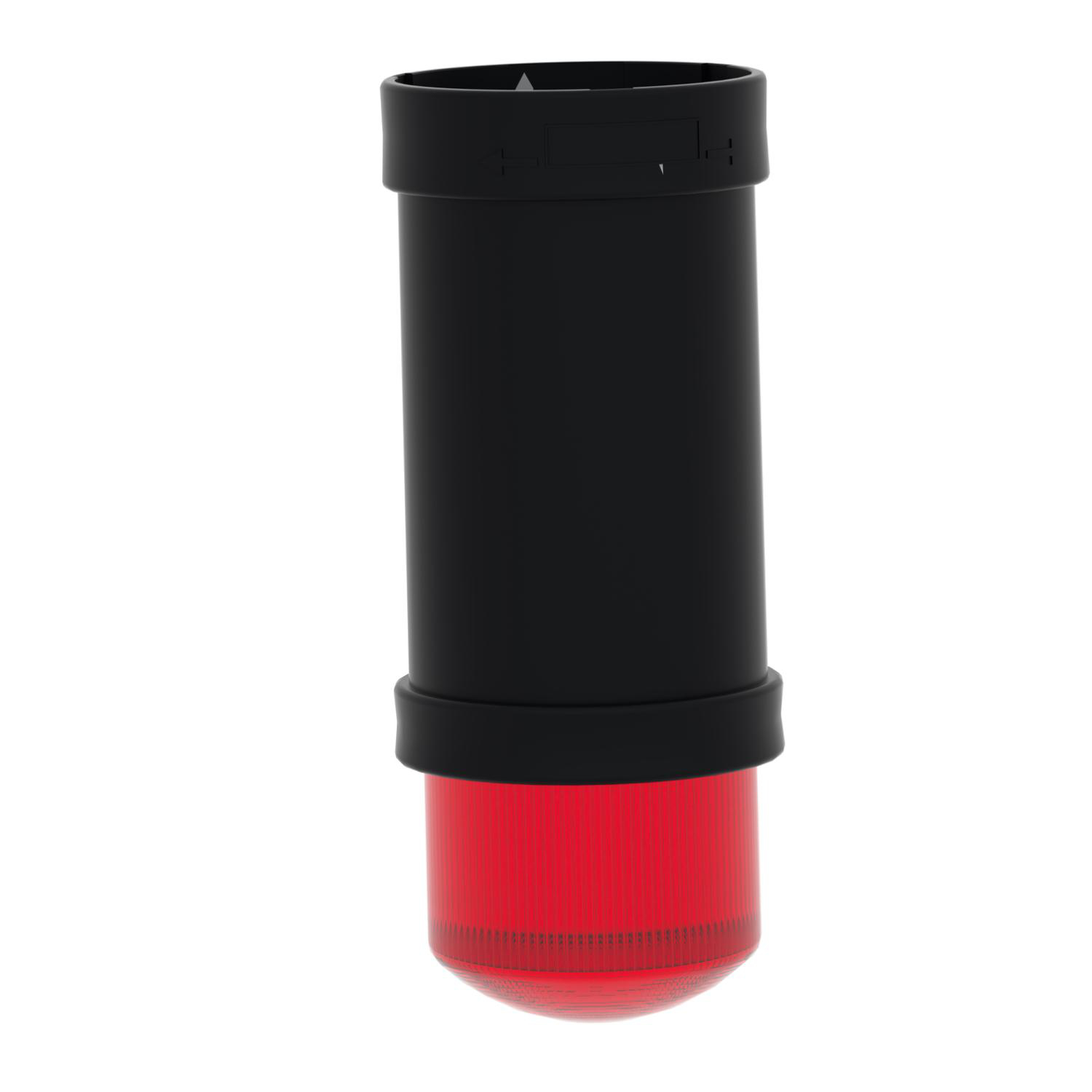

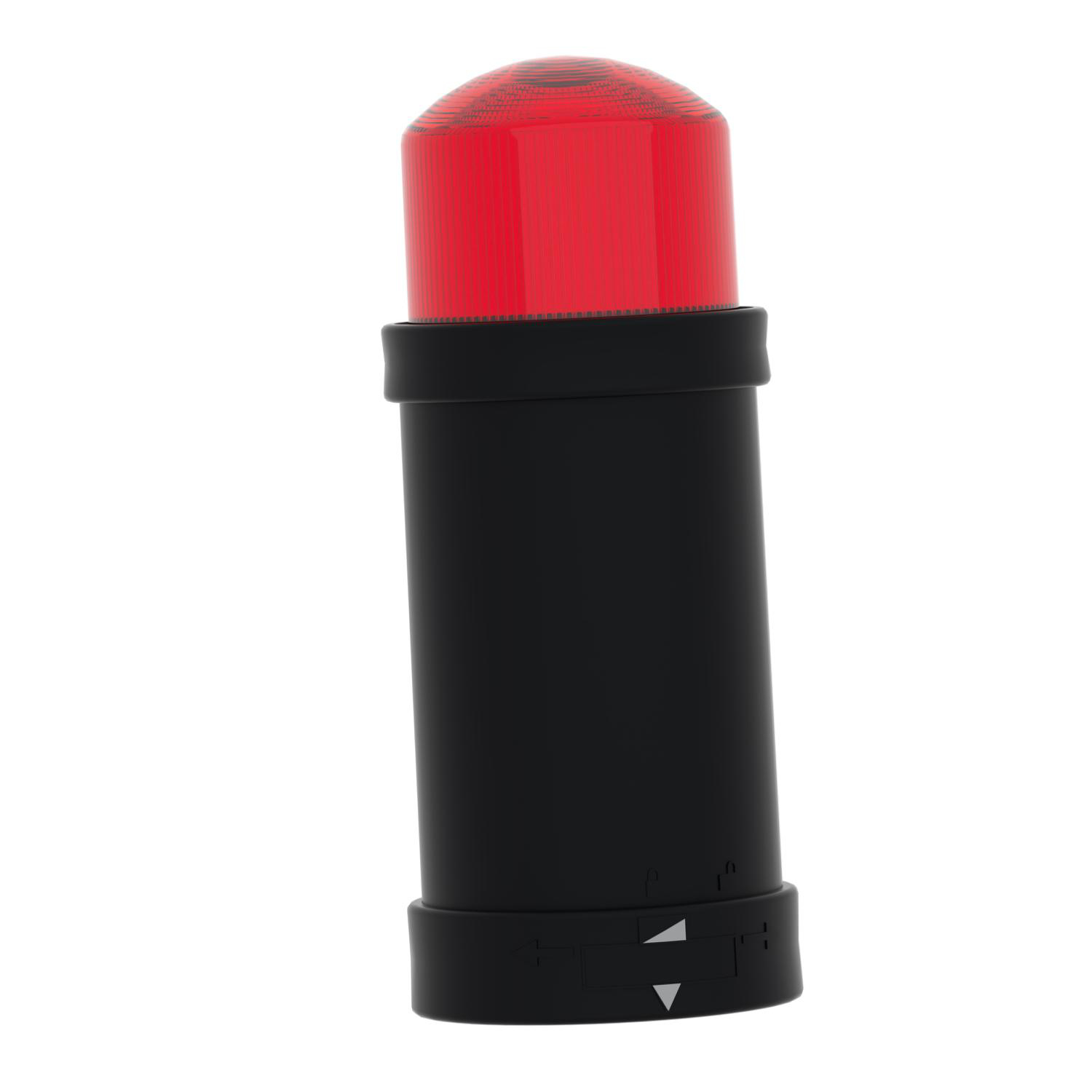

This red illuminated unit is designed to be connected with base to create complete tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Technical Information

Current
1300 mA
Enclosure
IP65 ON FIXING BASE XVBZ0. IEC 60529-IP66 ON BASE UNIT IEC 60529,NEMA 4X UL 508 INDOOR)
Lens Color
INTEGRAL FLASH DISCHARGE TUBE, RED
Light Source
Integral Flash Discharge Tube, Red
Material
Polycarbonate
Net Weight
0.305 kg
Size
70 MM,70 MM,70 MM
Standard
IEC 60947-5-1
Storage Temperature
-40-70 degrees C
Type
ILLUMINATED UNIT,INDICATOR BANK

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XVBC

General Product Info

12-Digit UPC
389110845672
GTIN
03389110845679
Weight
0.305 kg

Dimensions

Height
157 mm
Warranty Length
18 mth
Width
70 mm

Certifications & Compliance

Certifications
CCC,CSA C22-2 No 14,EAC,UL 508
Country of Origin
USA
