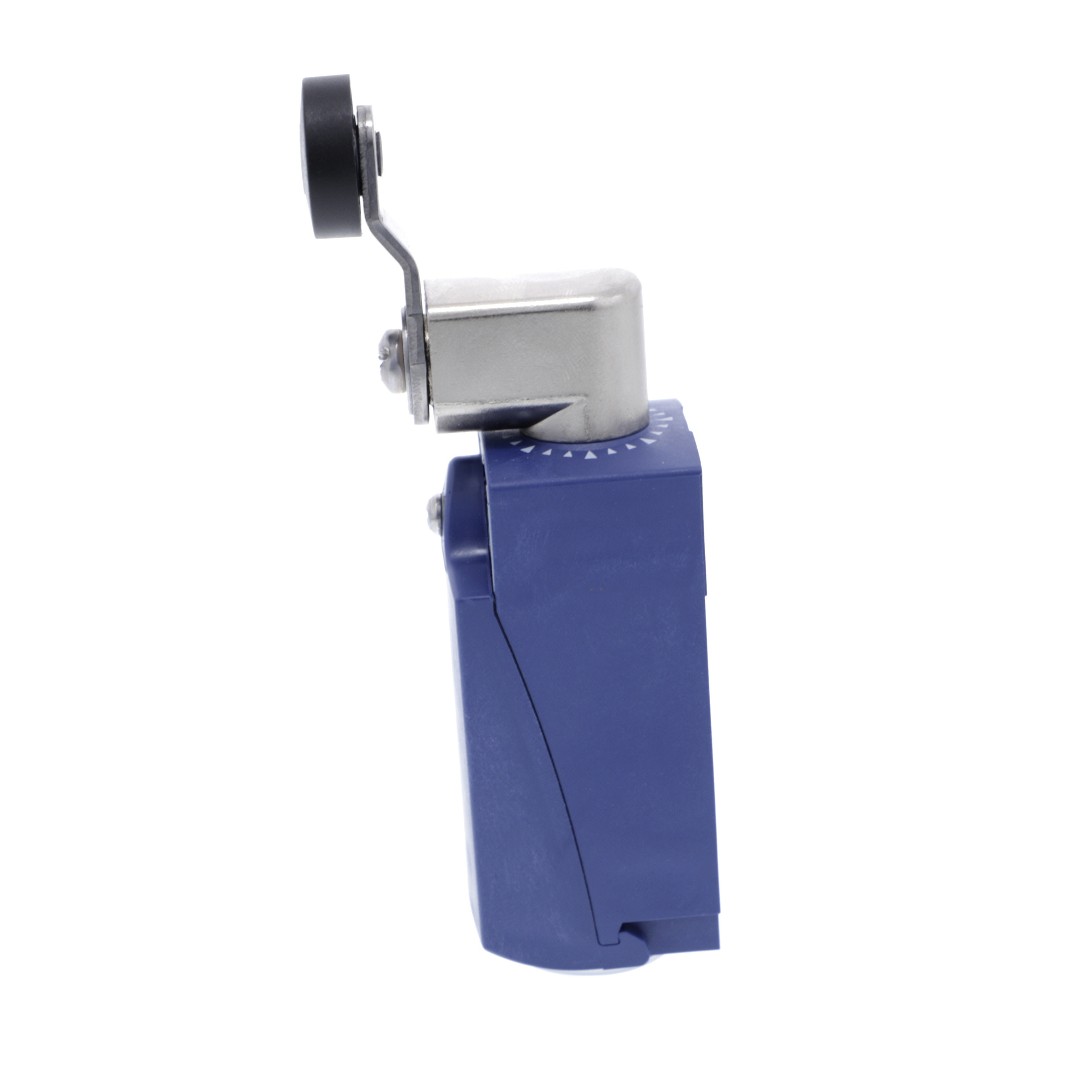

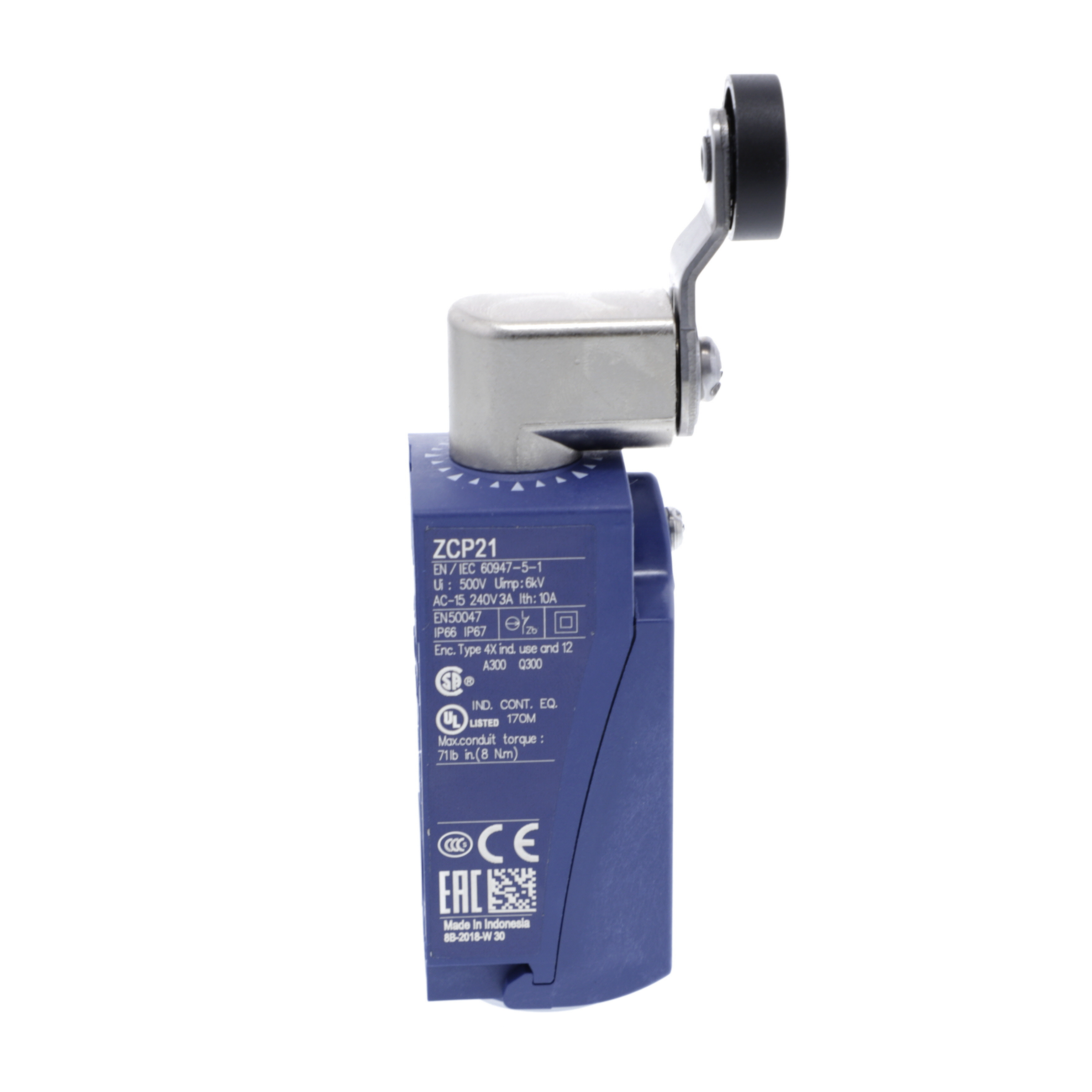

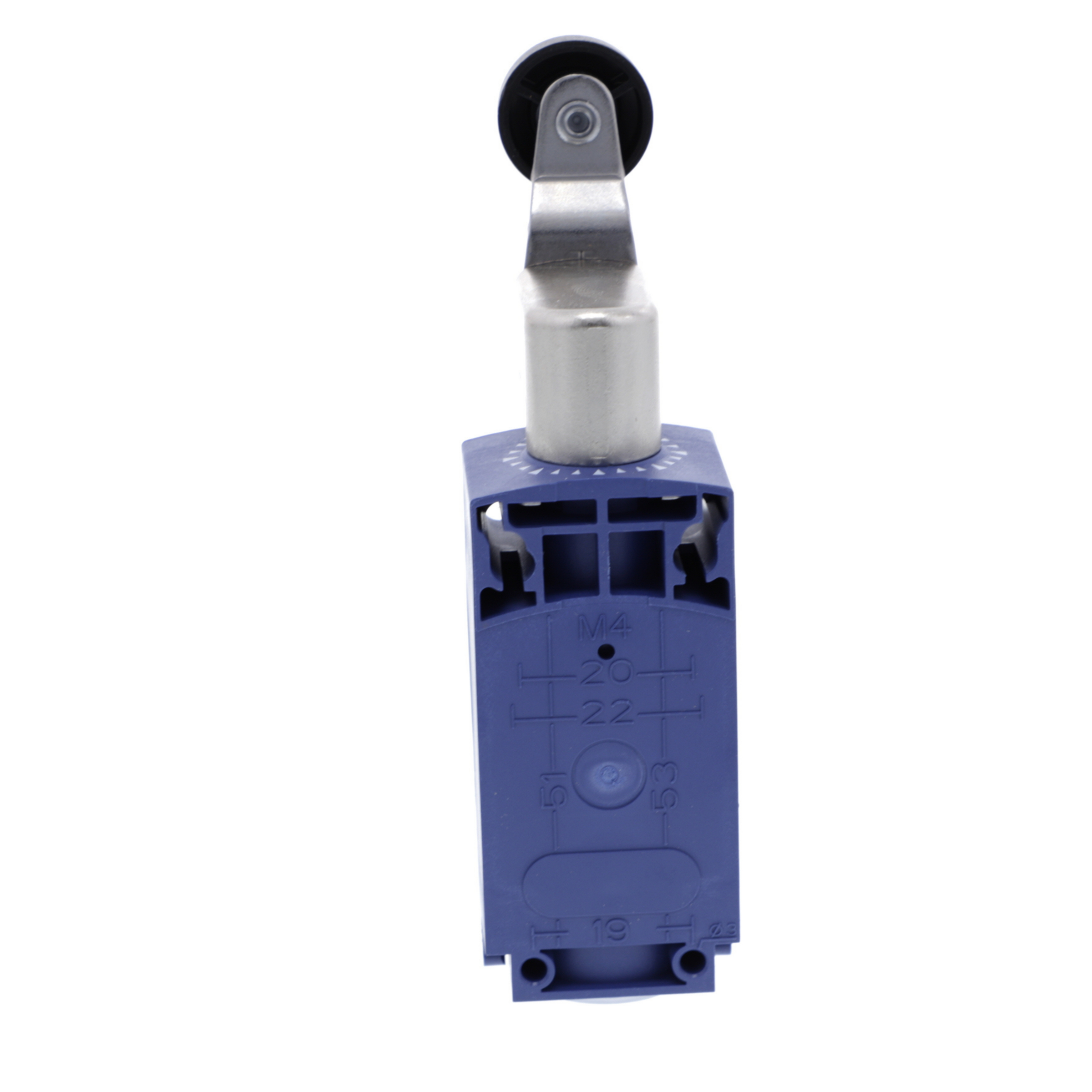

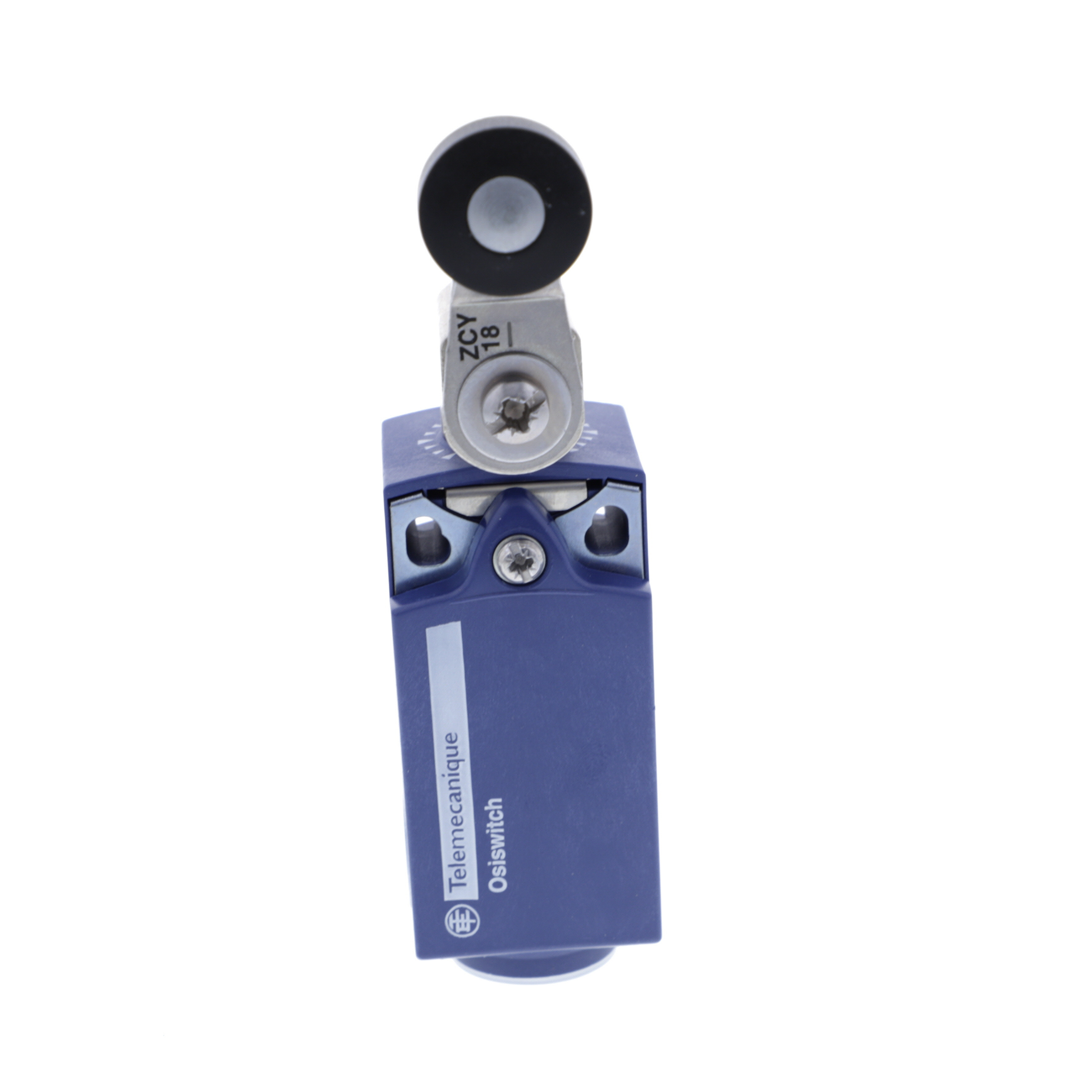

Product image for LIMIT SWITCH, LIMIT SWITCHES XC STANDARD, XCKP, THERMOPLASTIC ROLLER LEVER, 1NC+1 NO, SNAP, M16
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

LIMIT SWITCH, LIMIT SWITCHES XC STANDARD, XCKP, THERMOPLASTIC ROLLER LEVER, 1NC+1 NO, SNAP, M16

Manufacturer: Telemecanique Controls | Catalog # XCKP2118P16 | Electrozad South Part # 402505
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic roller lever with track 20/36mm and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Technical Information

Action
Snap action;By 30° cam
Actuator
SPRING RETURN ROLLER LEVER THERMOPLASTIC
Applications
COMPACT VARIABLE
Body Material
Plastic
Body Type
Fixed
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 1/2/4/6/12/13 IP66/67
Head Type
Rotary head
Material
Plastic
Net Weight
0.135 kg
Number of Poles
2
Operating Cycles
5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Operating Temperature
-25-70 Adegrees C
Size
1.18 in
Standard
CSA C22.2 No 14,EN 60204-1,EN 60947-5-1,IEC 60204-1,IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA²
Type
Limit switch

Manufacturer Information

Brand
Telemecanique Sensors
Sub Brand
XCKP

General Product Info

12-Digit UPC
389110201881
Weight
0.30 lb

Dimensions

Depth
30 mm
Height
65-65 mm
Warranty Length
18 mth
Width
31 mm

Certifications & Compliance

Certifications
CCC,CSA,UL
Country of Origin
Indonesia
