WALL SWITCH SENSOR, PASSIVE DUAL TECHNOL

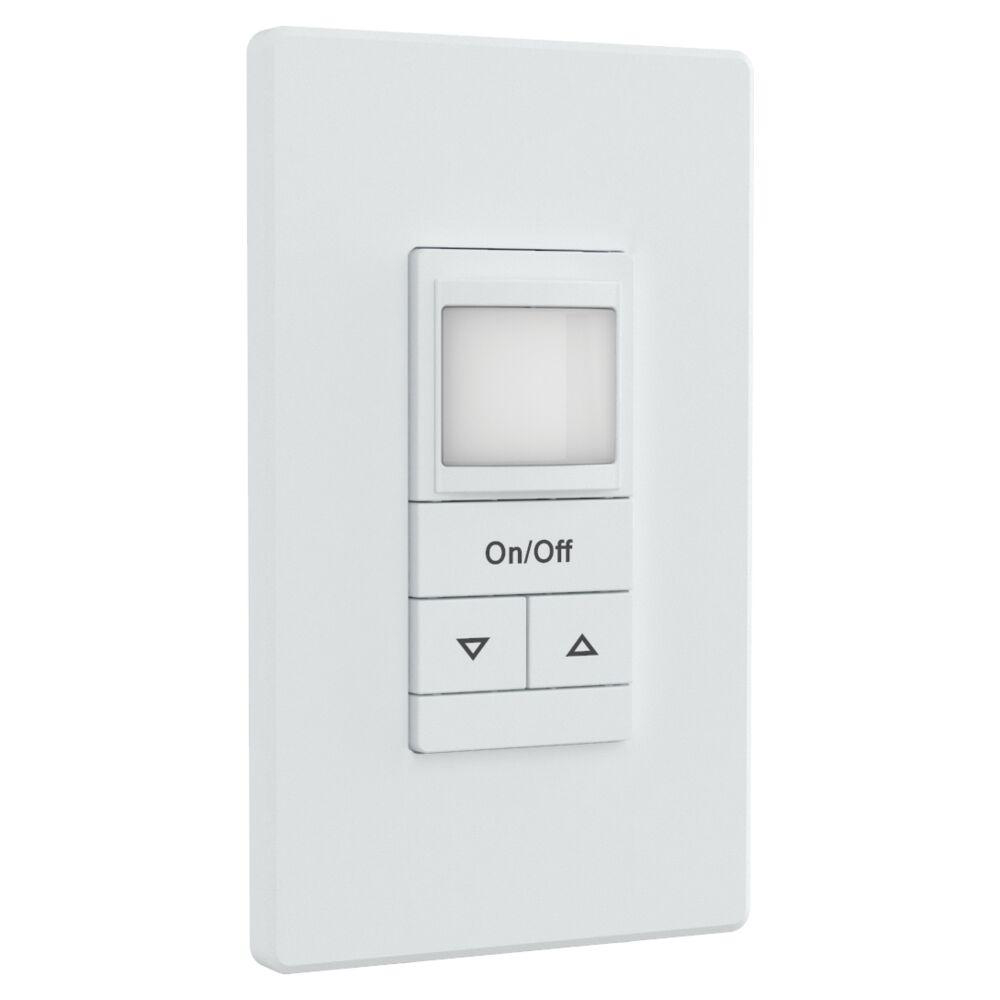

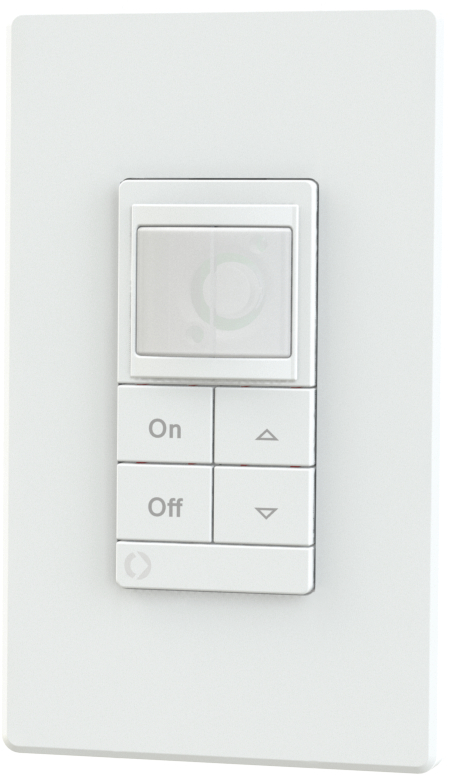

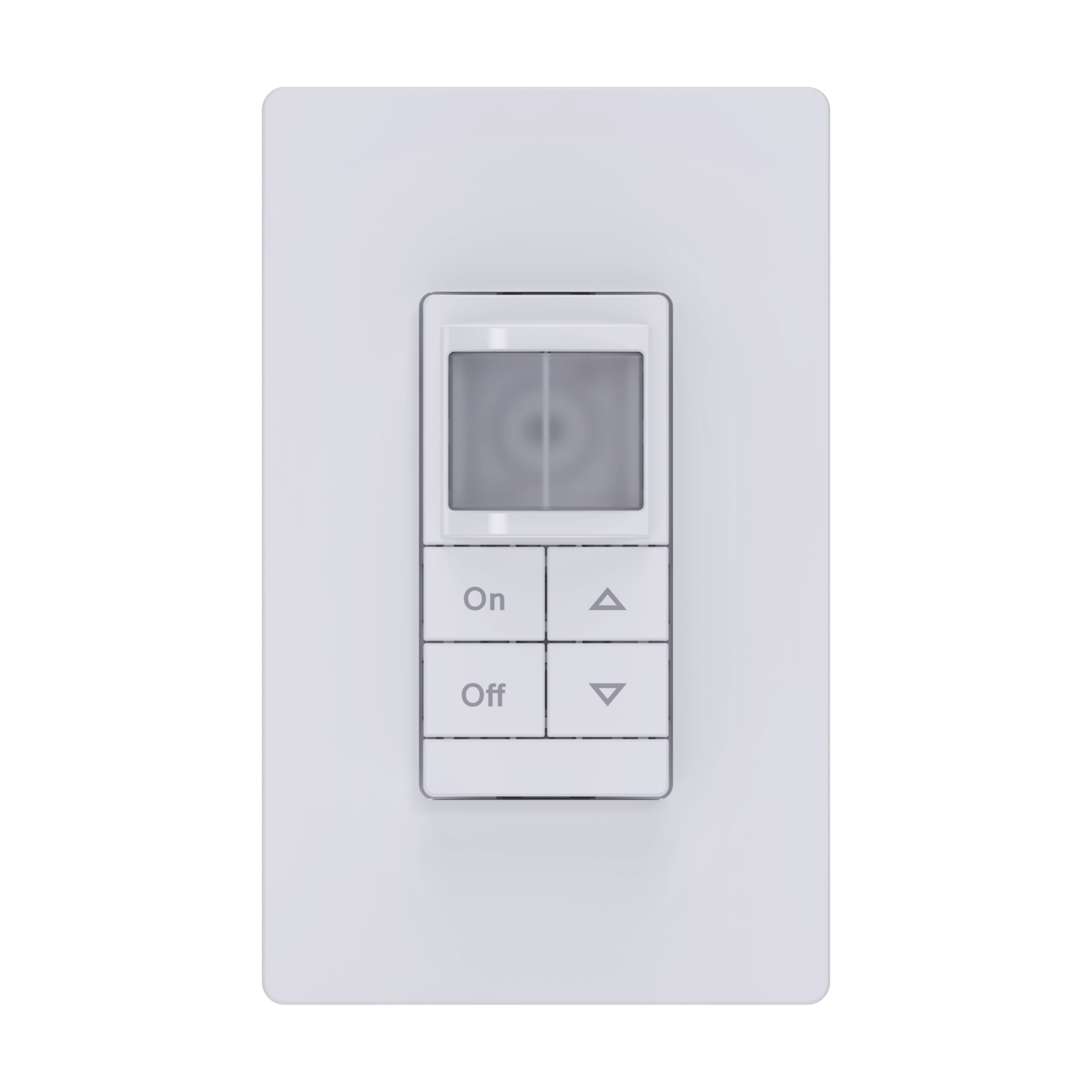

The Sensor Switch™ WSXA Series offers all the benefits of the WSX Series along with improved functionality and new aesthetics. The cost-effective multi-way (MWO) solution allows you to control fixtures from up to 9 different locations in a room. The WSXA Series is ideal for commercial indoor spaces with multiple entryways that require small motion detection up to 20 feet such as conference rooms, long hallways, restrooms and breakrooms. Compatible with the new SSW Series of sealed screwless wall plates, designed to protect the device from liquid intrusion. Connect up to 9 devices with neutral wiring or up to 2 devices without neutral wiring on a single traveller. Wall switches can be spaced up to 250 feet apart. Compatible with 0-10V dimming luminaries. Small motion detection up to 20ft (6.10m). Programmable with Sensor Switch VLP Mobile App or traditional push button. Passive Dual Technology (PDT). Mis-wire Protection - interchangeable line and load wires prevent damage to device if line voltage is mis-wired to 0-10V wires. Integrated photocell with Adaptive Daylight Harvesting (ADH). Convertible Neutral to Ground - accommodates powering over ground or neutral connection in one device. Functions with or without neutral connection. Self-grounding mounting strap. Meets NEC 2017 Section 404.2C neutral requirements (no current leakage to ground when connected to neutral). Aids in IECC and ASHRAE code compliance.
