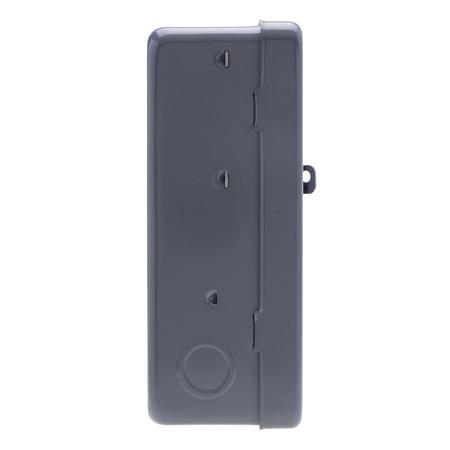

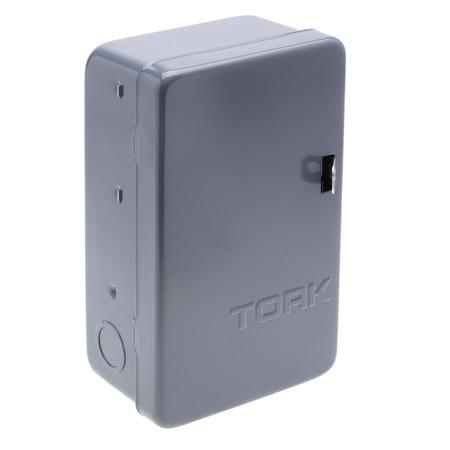

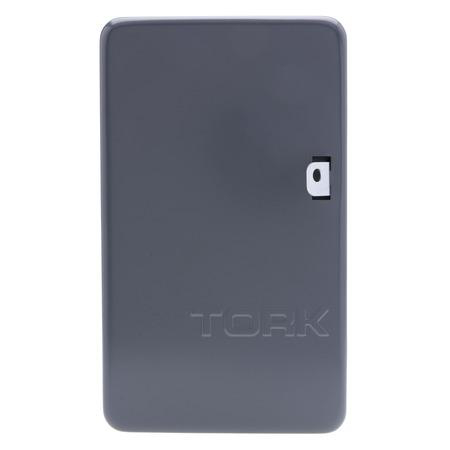

24 HOUR TIME SWITCH 40A 120V SPST INDOOR

Manufacturer: Tork Timers | Catalog # 1101B | Electrozad South Part # 401242
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
24 Hour Time Switch 40A 120V SPST Indoor Metal Enclosure

Technical Information

Action
SPST
Applications
Lighting-Pumps-Signs-Air Conditioning-Watr Heaters-Fan Control
Base
Screw
Contact Rating
120 V
Enclosure
NEMA 1 Metal Indoor
Frequency
60 Hz
Mounting Type
Screw Mount
Number of Phases
1
Number of Pins
12 Pair
Number of Poles
1
Operating Temperature
-40 To 165 degrees F
Size
L=4.687 - H=7.937 - W=2.937 IN
Standard
UL-CSA
Type
24 Hour Time Switch

Manufacturer Information

Brand
NSi
Sub Brand
Mechanical Time Controls

General Product Info

12-Digit UPC
786261100641
Environmental Conditions
-40 to 165 F
GTIN
00786261100641
