Receptacle duplex smooth face 20A 125V red

Manufacturer: Leviton Manufacturing | Catalog # M5362-R | Electrozad South Part # 400960
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet

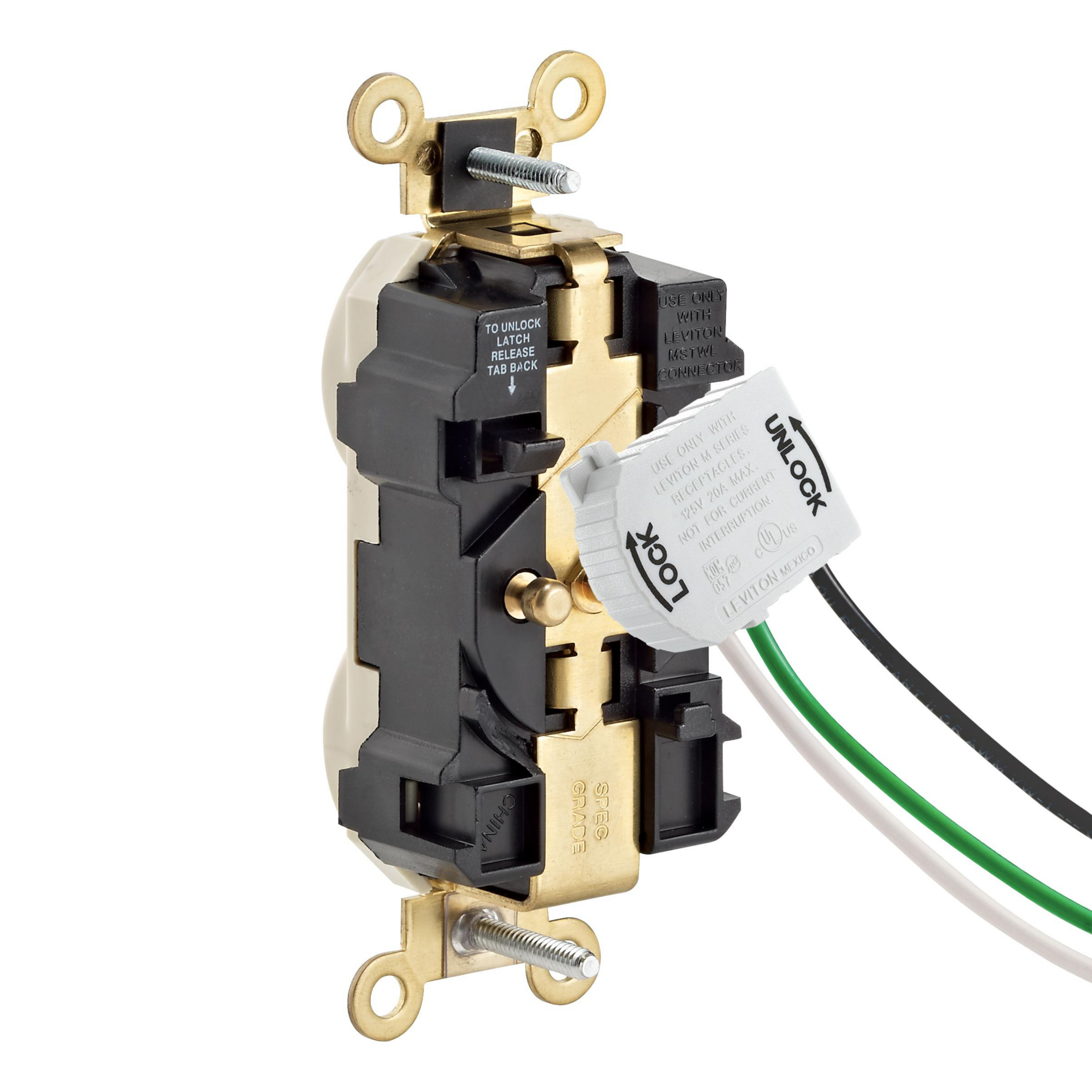

Extra heavy duty specification grade duplex receptacle. Smooth face, standard. NEMA type-5-20R. The Lev-Lok® modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation.

Technical Information

Amperage
20 A
Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Base Material
Nylon
Conductor Size
12 AWG
Connection Type
Modular Terminal
Cover Material
Nylon
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.53 W x 1.22 D IN
Standard
ANSI C-73
TC Connection
Modular Terminal
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Modular
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Lev-Lok®

General Product Info

12-Digit UPC
078477362983
Color
Red
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477362983

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
