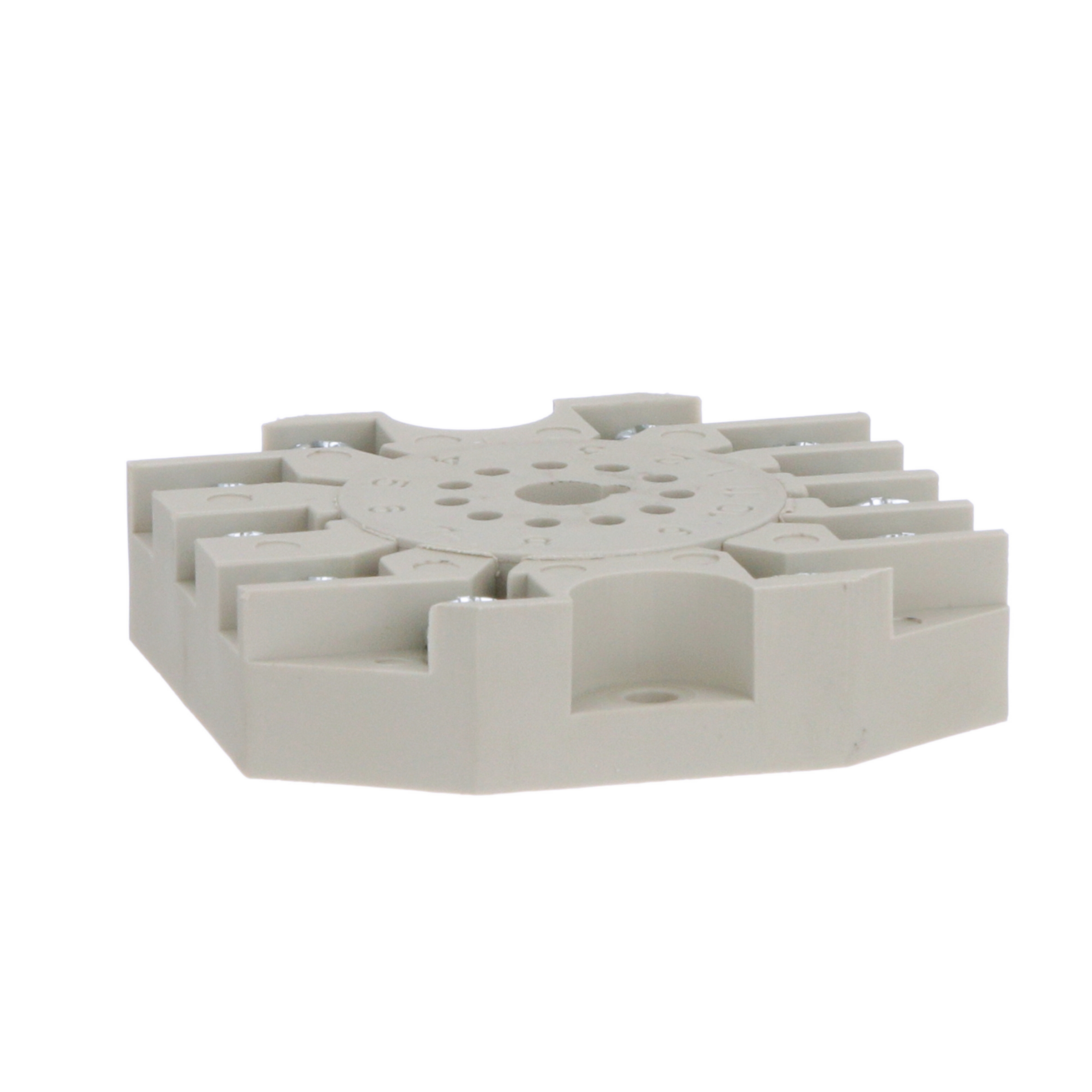

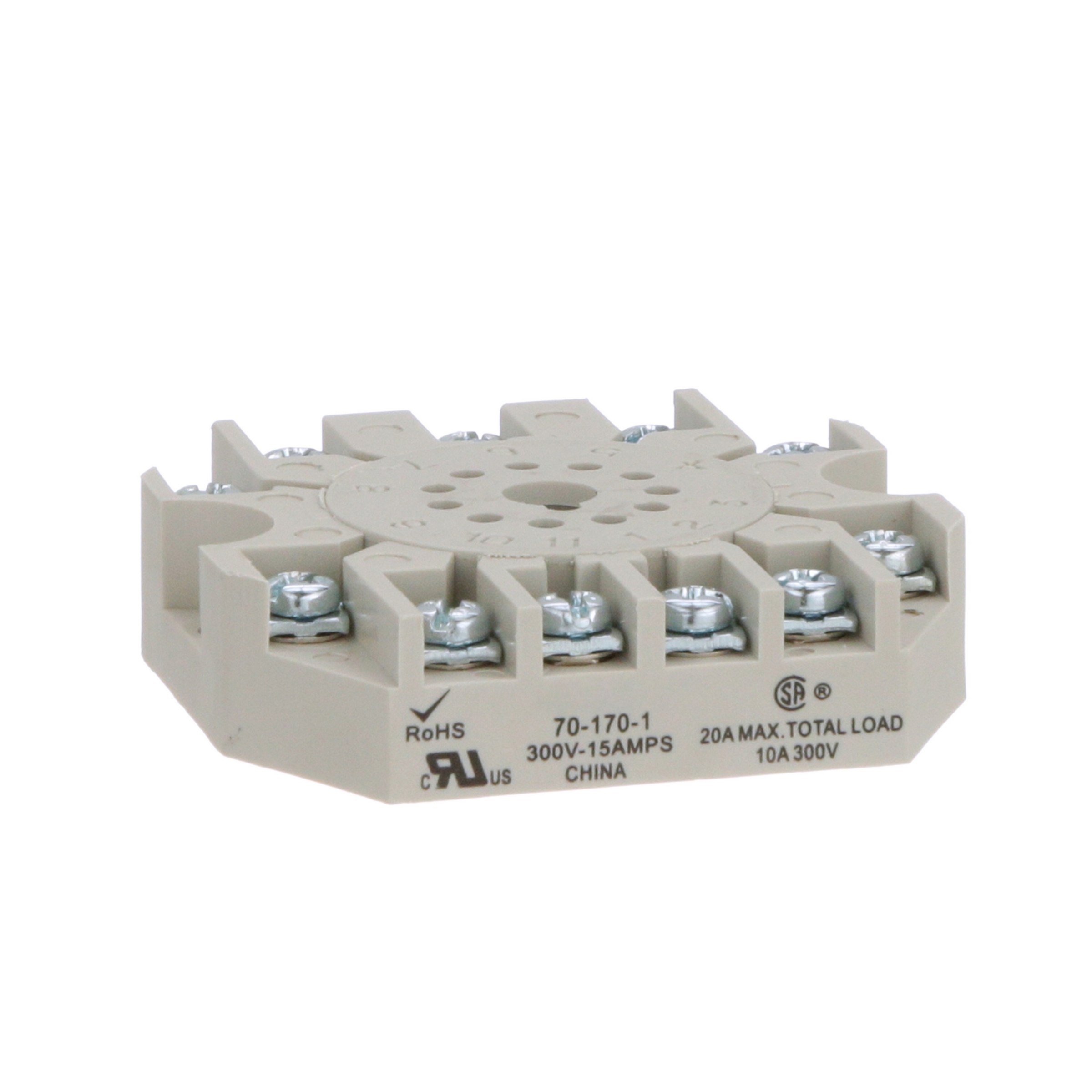

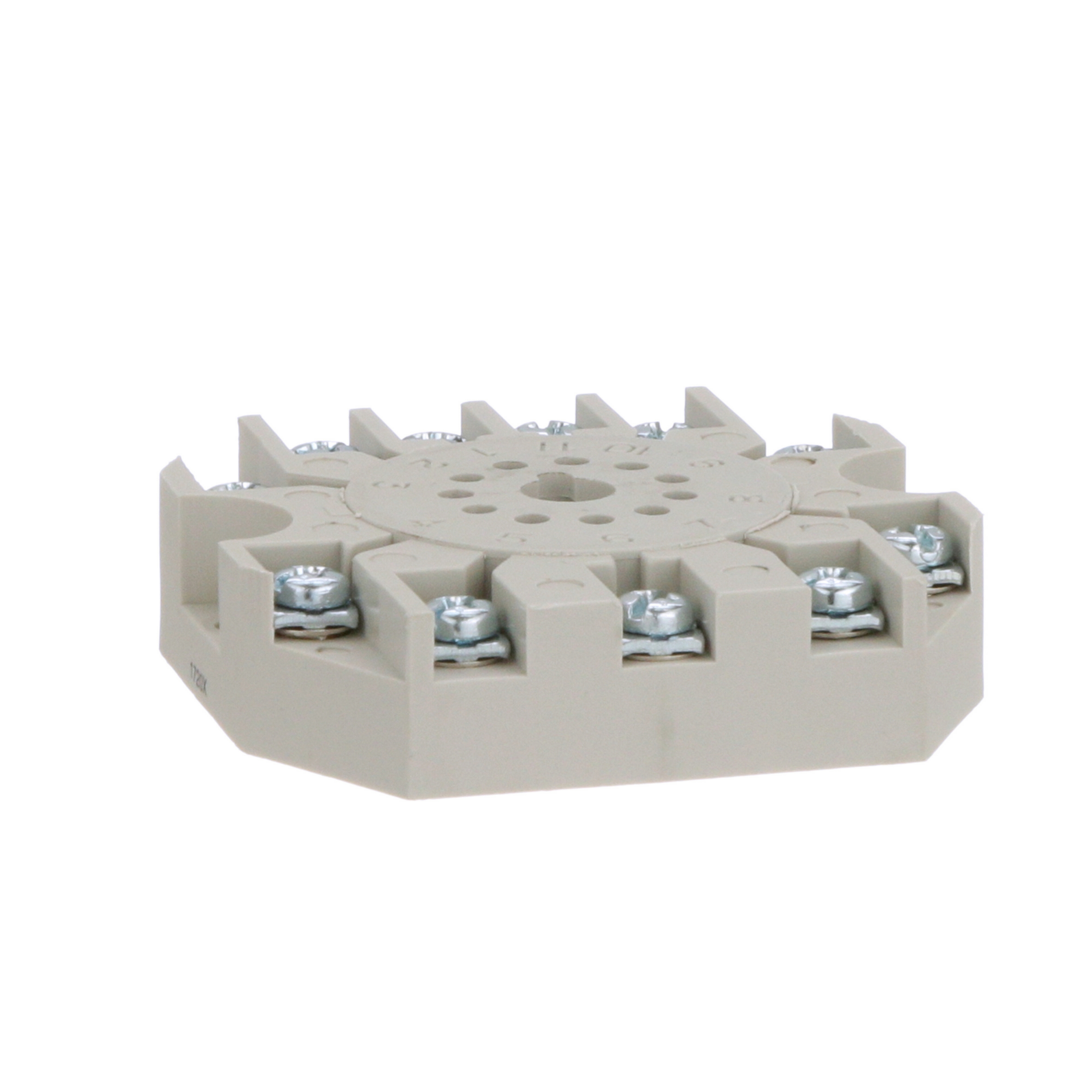

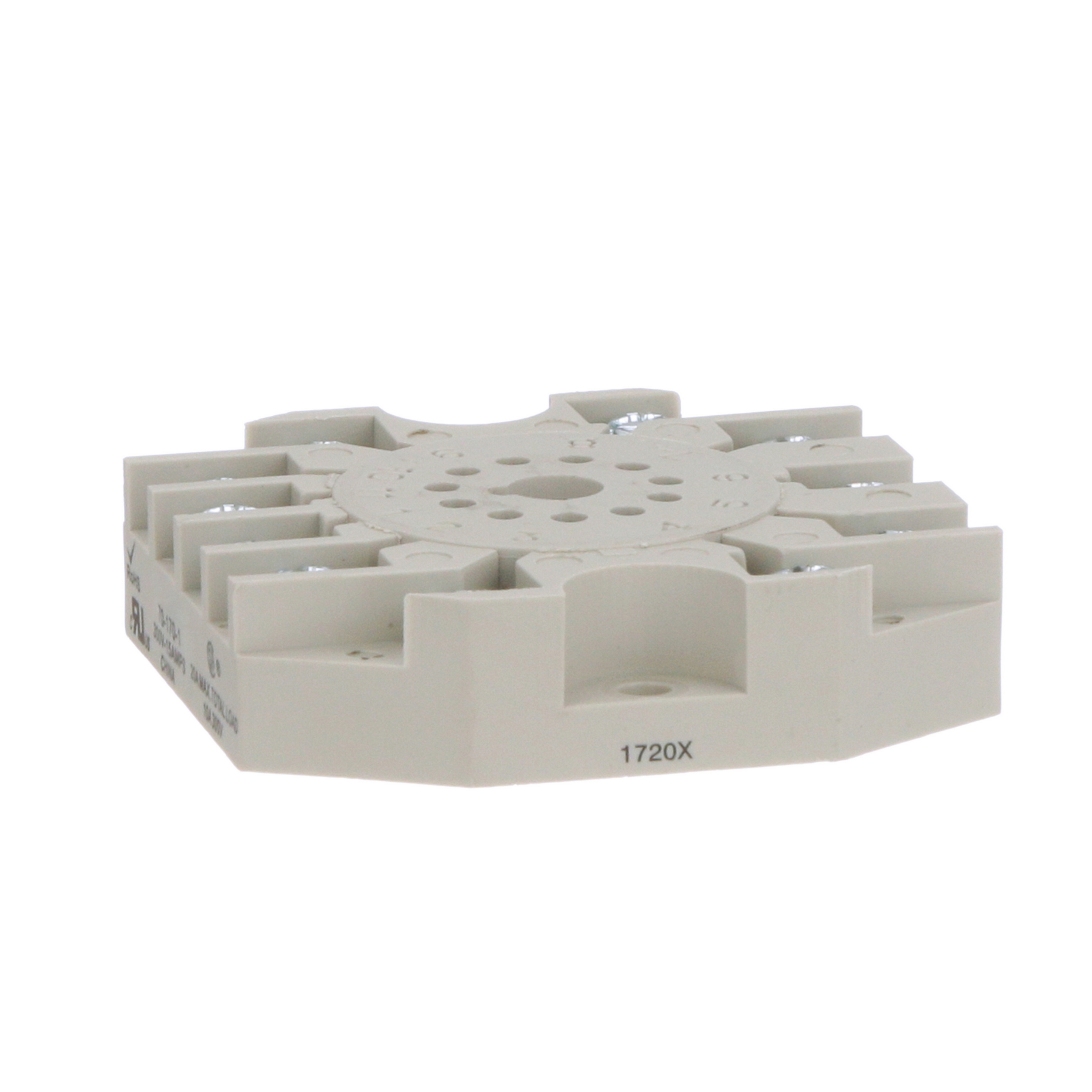

SOCKET, SE RELAYS GENERAL PURPOSE RELAY ACCESSORY, 3PDT, 15A, 300 V, 11 PINS, SCREW CLAMP TERMINAL, 750R/750H SERIES

Manufacturer: Schneider Electric | Catalog # 70-170-1 | Electrozad South Part # 400399
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Legacy general purpose relay series accessory , optional socket for 750/750H series relays with 3PDT configuration contacts rated 15A at 300V. Screw clamping connect terminals 11 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Technical Information

Line Rated Current
15 A
Net Weight
57 g
Number of Terminations
11
Operating Temperature
-40-55 degrees C
Storage Temperature
-40-105 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901154945
GTIN
03606480277788

Dimensions

Depth
65.39 mm
Width
64 mm

Certifications & Compliance

Certifications
CE,CSA,UL
