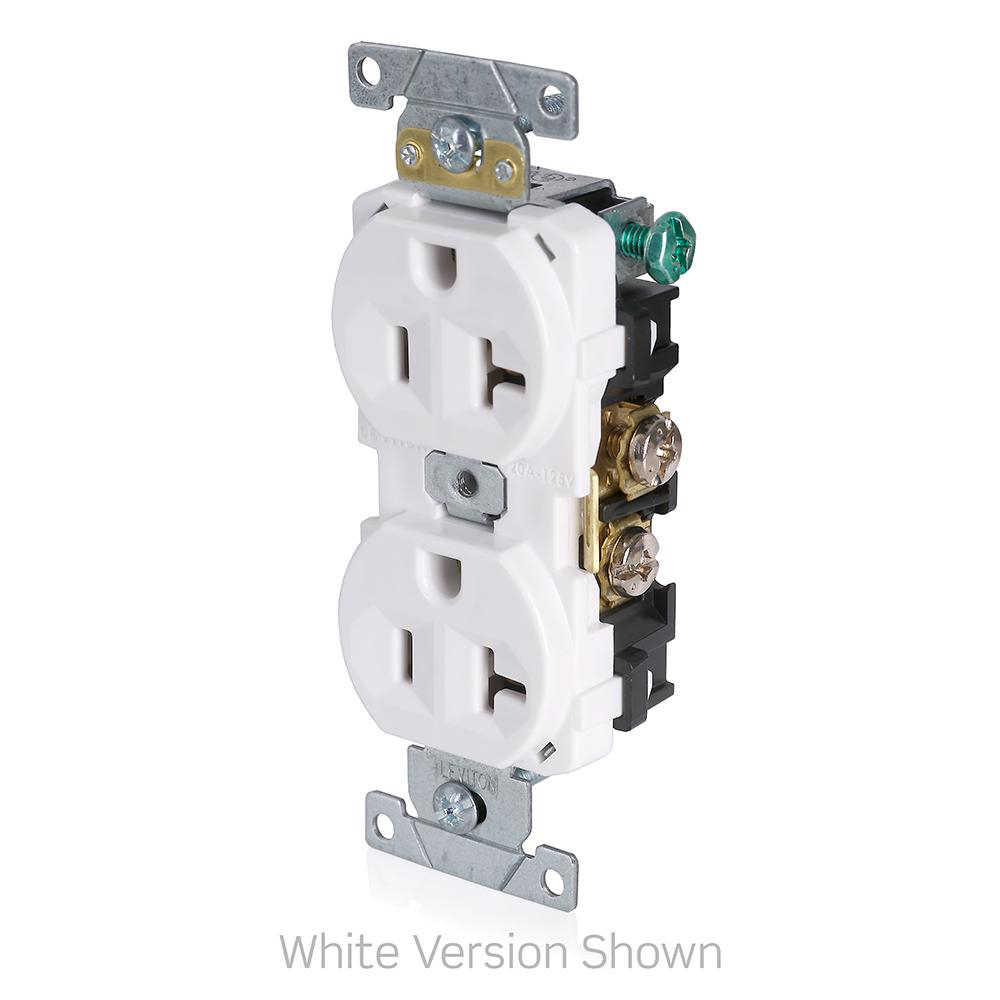

Image thumbnail 1
Image thumbnail 2

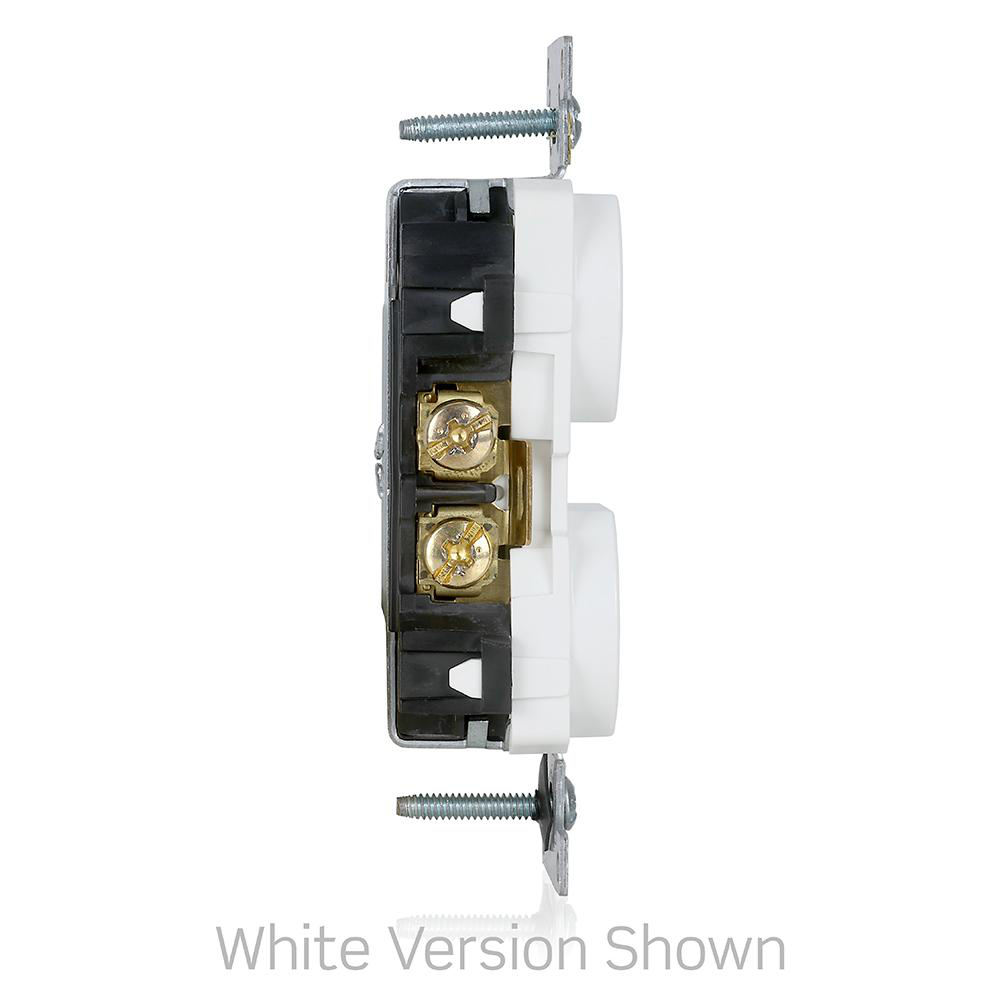

Image thumbnail 3
To:
CC:

Receptacle straight duplex narrow body 2P 3W 125V 20AMP black

Manufacturer: Leviton Manufacturing | Catalog # BR20-E | Electrozad South Part # 399930
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
Leviton...s line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Polypropylene
Connection Type
Back And Side Wired
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.56 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Duplex Outlet,Straight Blade
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Commercial Receptacles

General Product Info

12-Digit UPC
078477819821
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477819821

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
