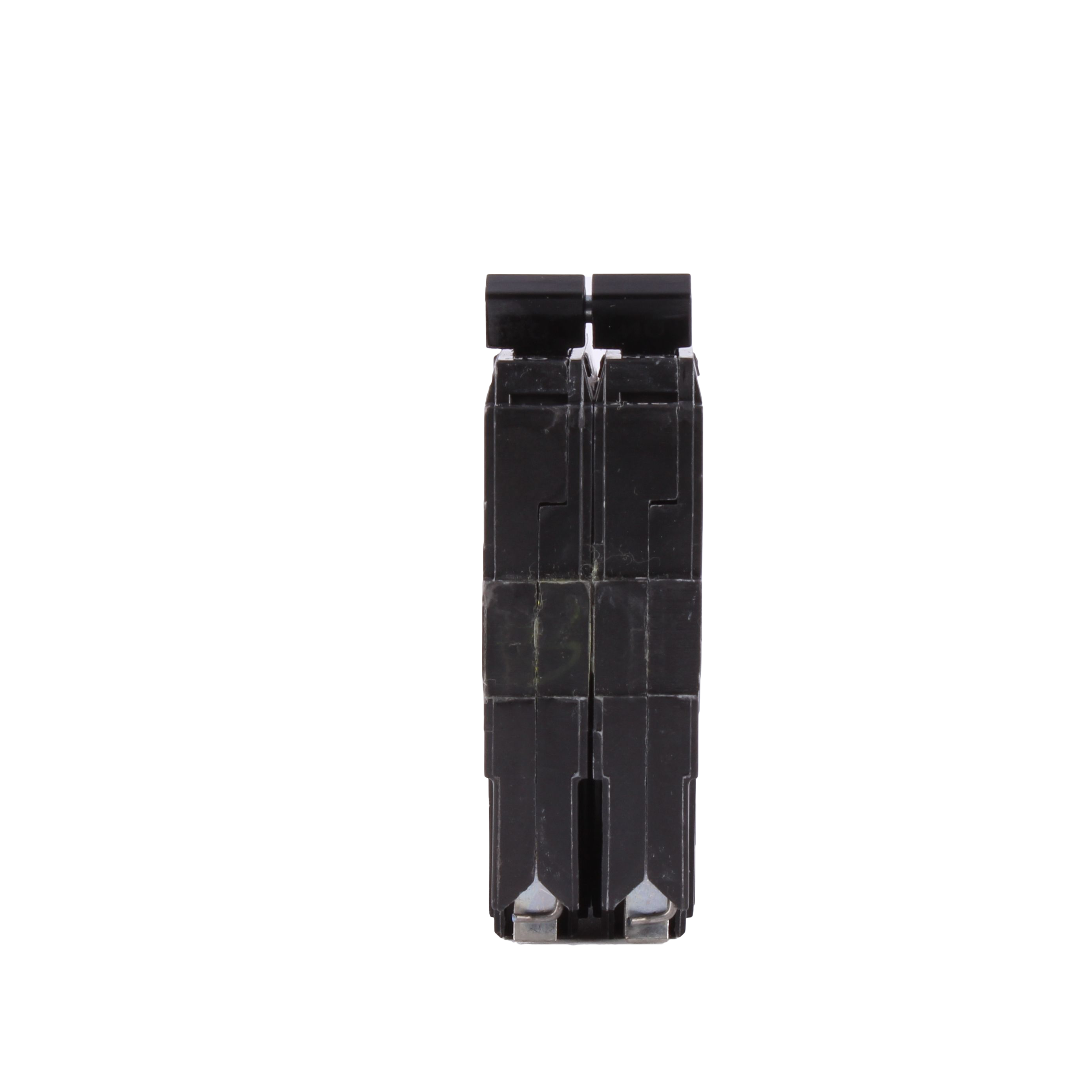

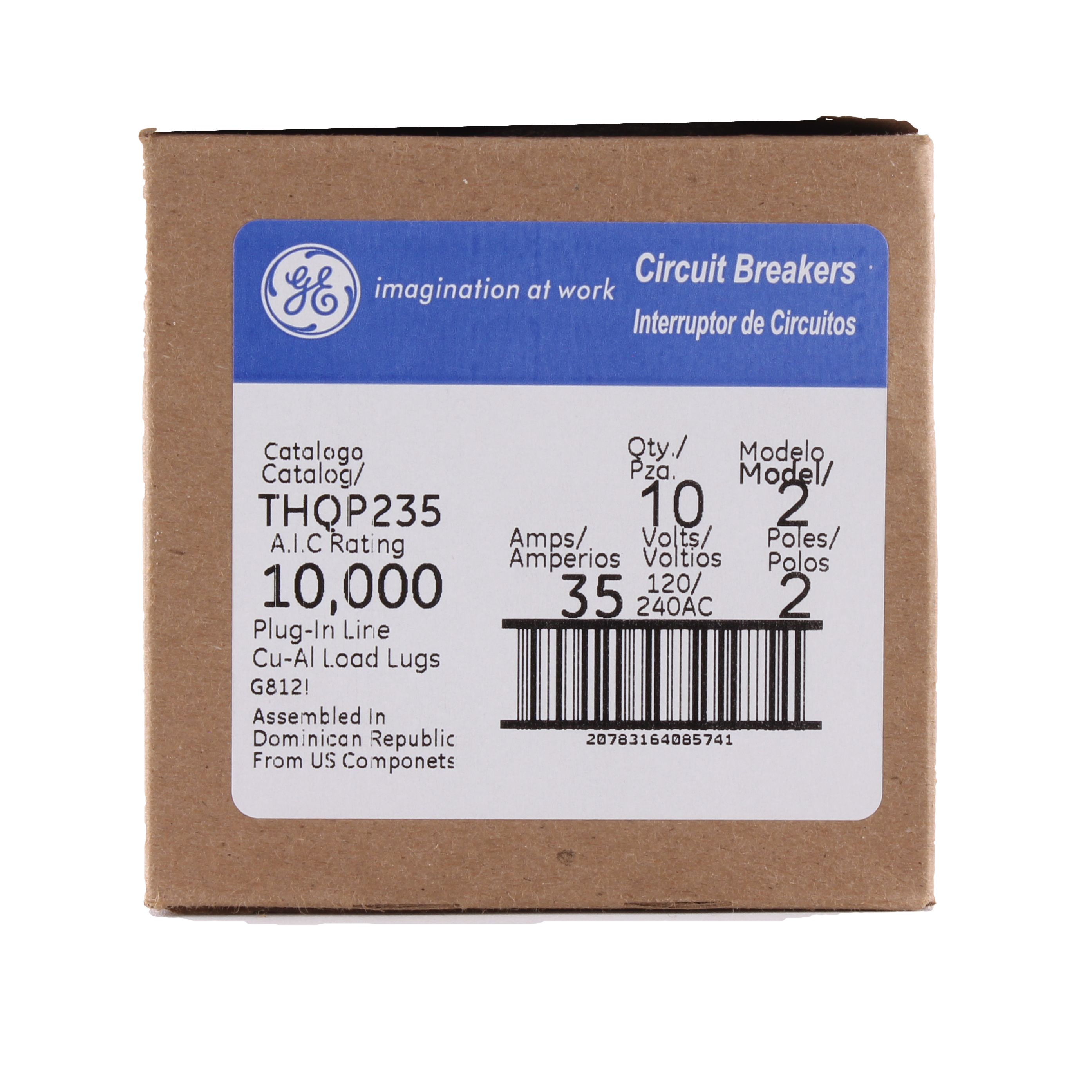

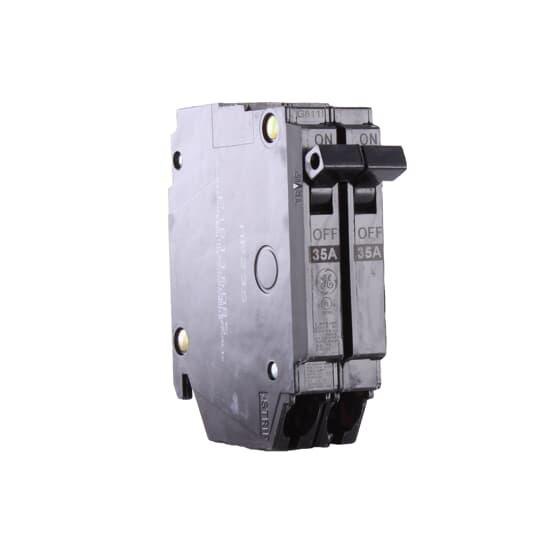

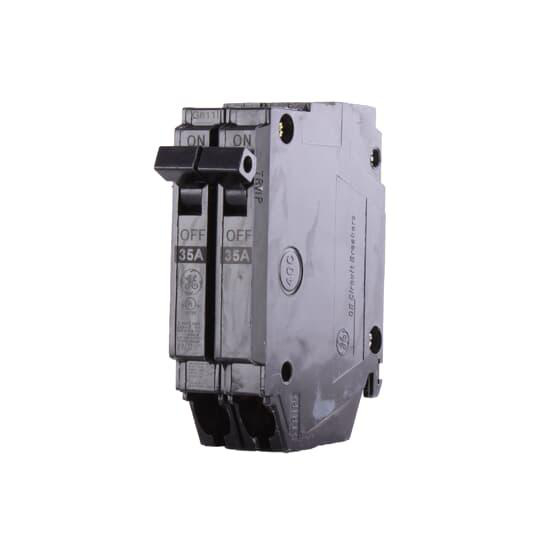

THQP 2 POLE 120/240V 10K IC 35 AMP

Manufacturer: General Electric | Catalog # THQP235 | Electrozad South Part # 399310

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
THQP breakers are a smaller, smarter solution for today's cost- and quality-conscious contractors and homeowners. Half the width and identical in design in comparison to standard breakers, they allow use of smaller load centers and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. The THQP235 breaker features a 1/2" width, 2 pole, an ampere rating of 35 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.

Technical Information

Amperage
35 A
Applications
Thermal Magnetic
Frame
Q-Line
Load Rating
HACR
Number of Poles
2
Standard
E11592
Trip Range
Non-Interchangeable
Trip Type
LI
Voltage
120 V

Manufacturer Information

Brand
Q-Line
Sub Brand
Q Line

General Product Info

12-Digit UPC
783164085747
