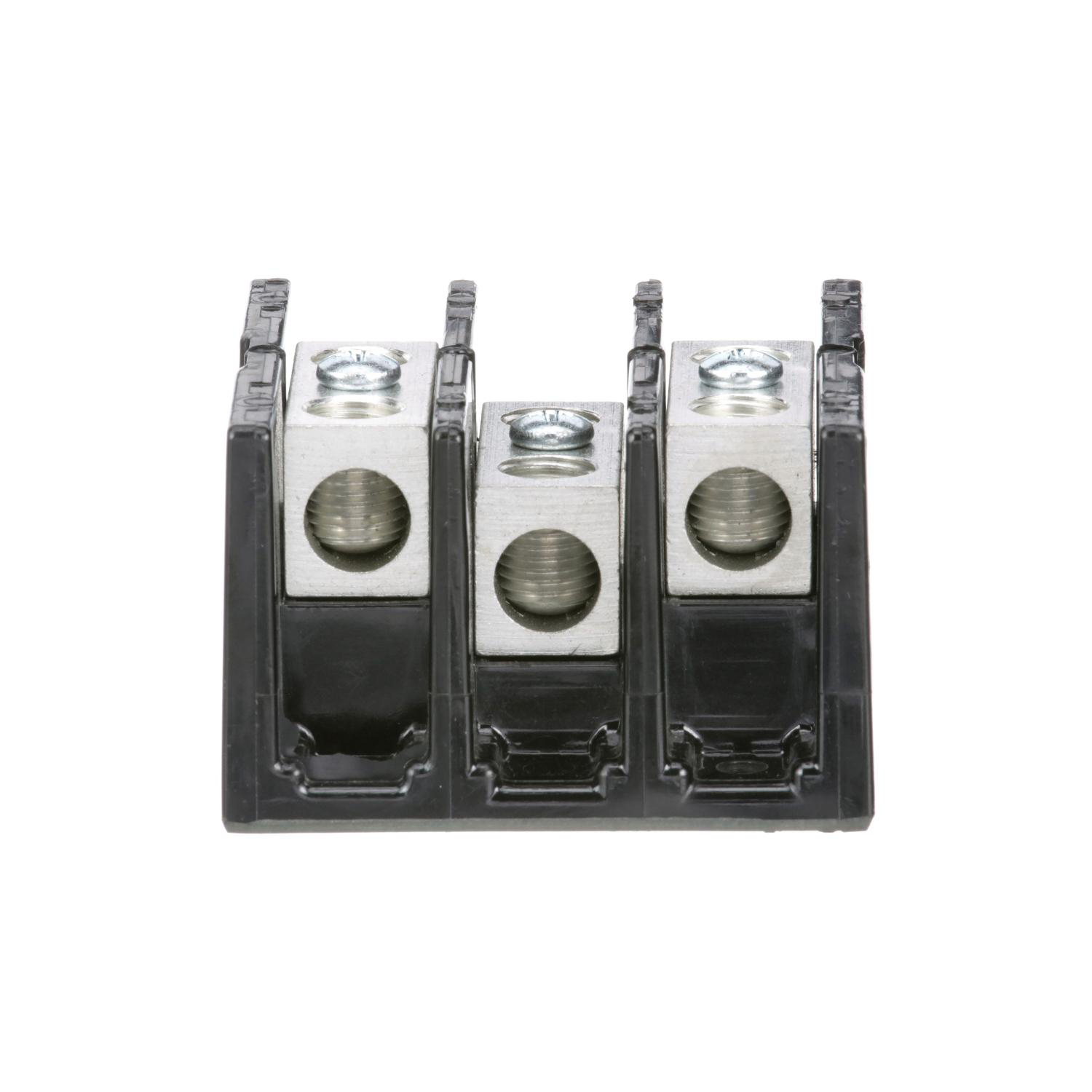

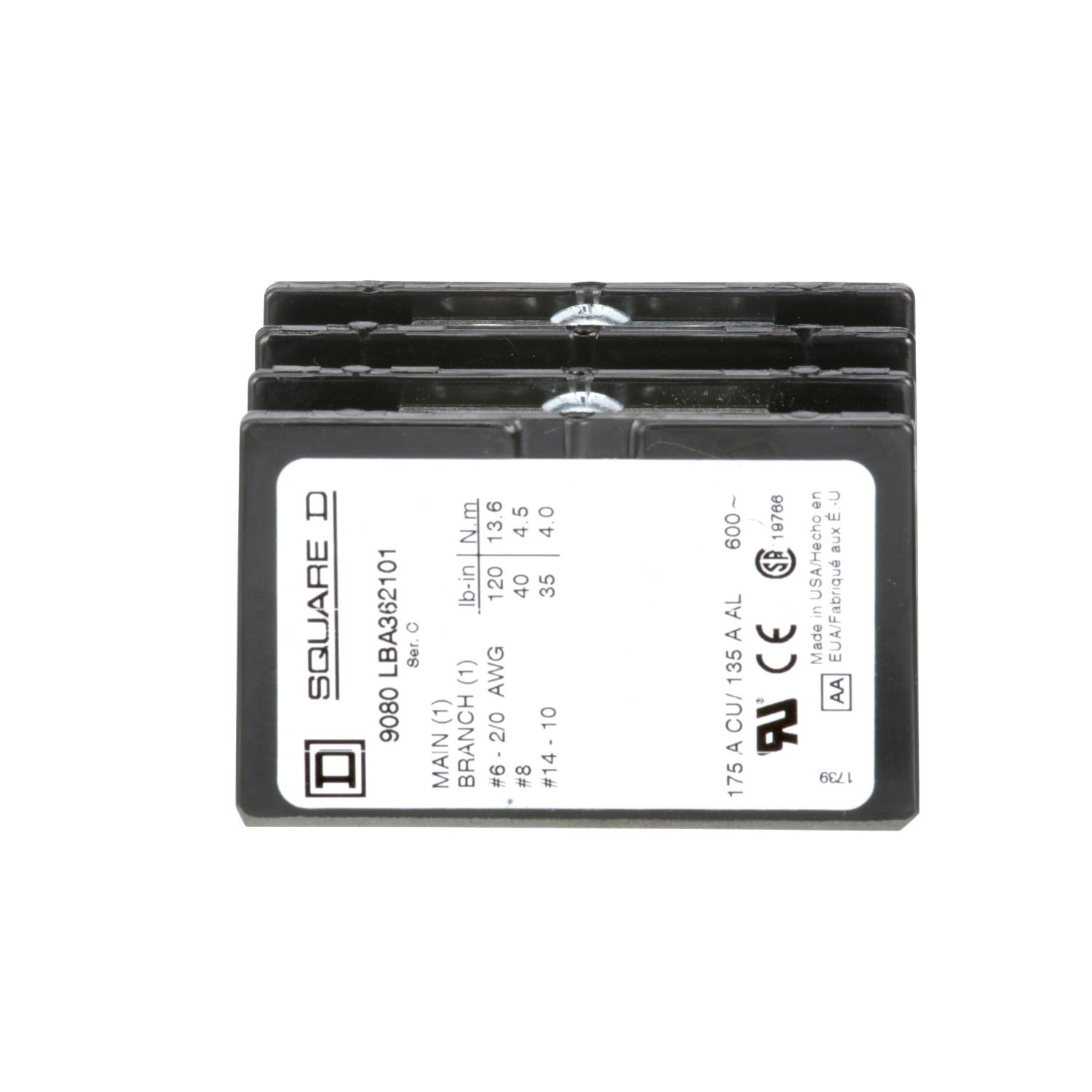

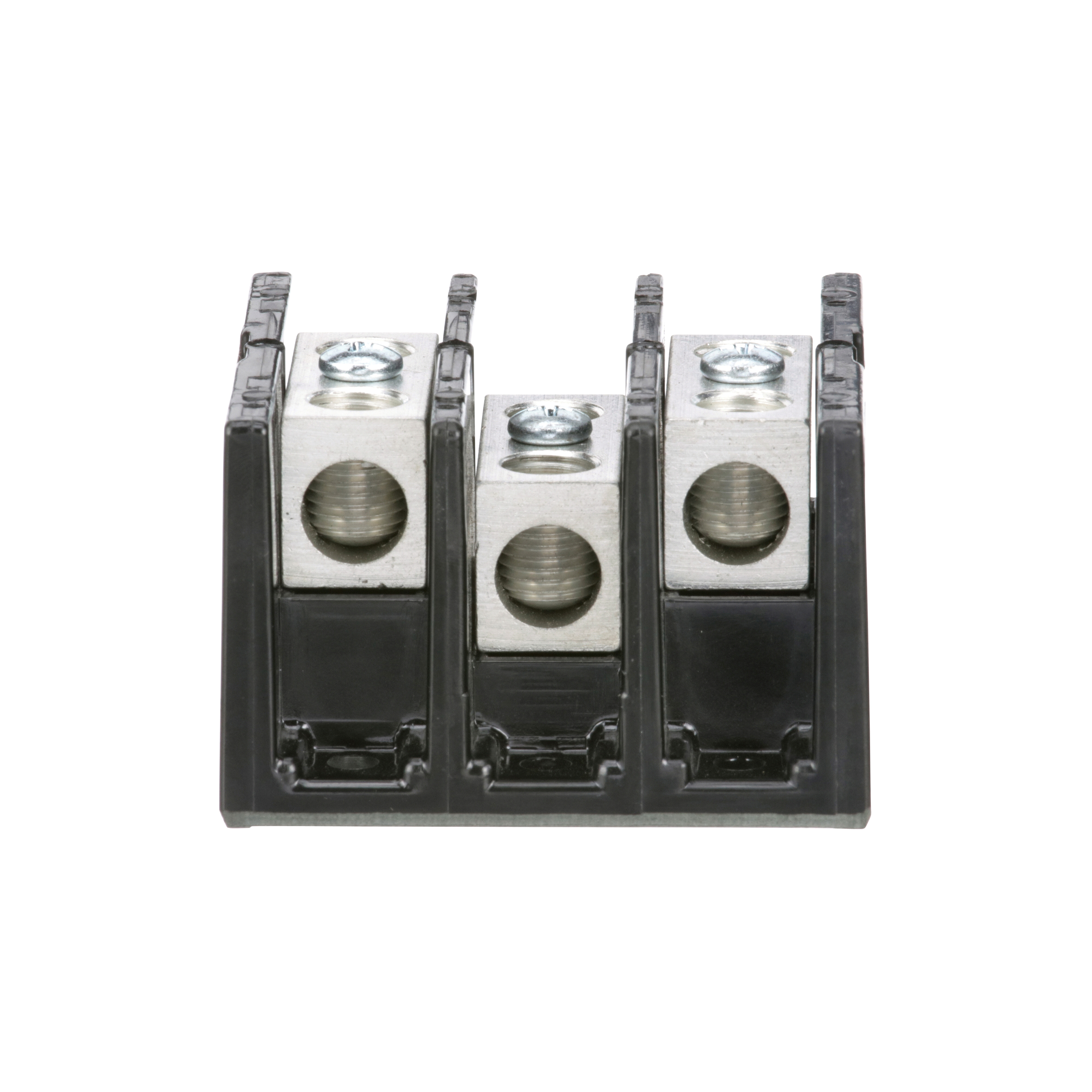

POWER DISTRIBUTION BLOCK, LINERGY, 3 POLE, 1 LINE, 1 LOAD, 175A CU, 135A AL, 600V

Manufacturer: Schneider | Square D | Catalog # 9080LBA362101 | Electrozad South Part # 398546
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one or two 14 to 2/0 copper or aluminum wire. The load side lug is rated to accept one 14 to 2/0 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Applications
9080LB,9080LB23
Current
135 A
Line Rated Current
135-135 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Net Weight
.21 kg
Number of Poles
3
Number of Terminations
1
Operating Temperature
-40-302 degrees F
Size
1.78 in
Strip Length
0.5 in
TC Connection
LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
Power Distribution Block
Voltage
600 V
Wire Size
Line 2, AWG 14...AWG 2/0, copper or aluminium;Load 1, AWG 14...AWG 2/0, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097440
GTIN
00785901097440
Weight
.21 kg

Dimensions

Depth
1.78 in
Height
2.88 in
Warranty Length
18 mth
Width
1.94 in

Certifications & Compliance

Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
