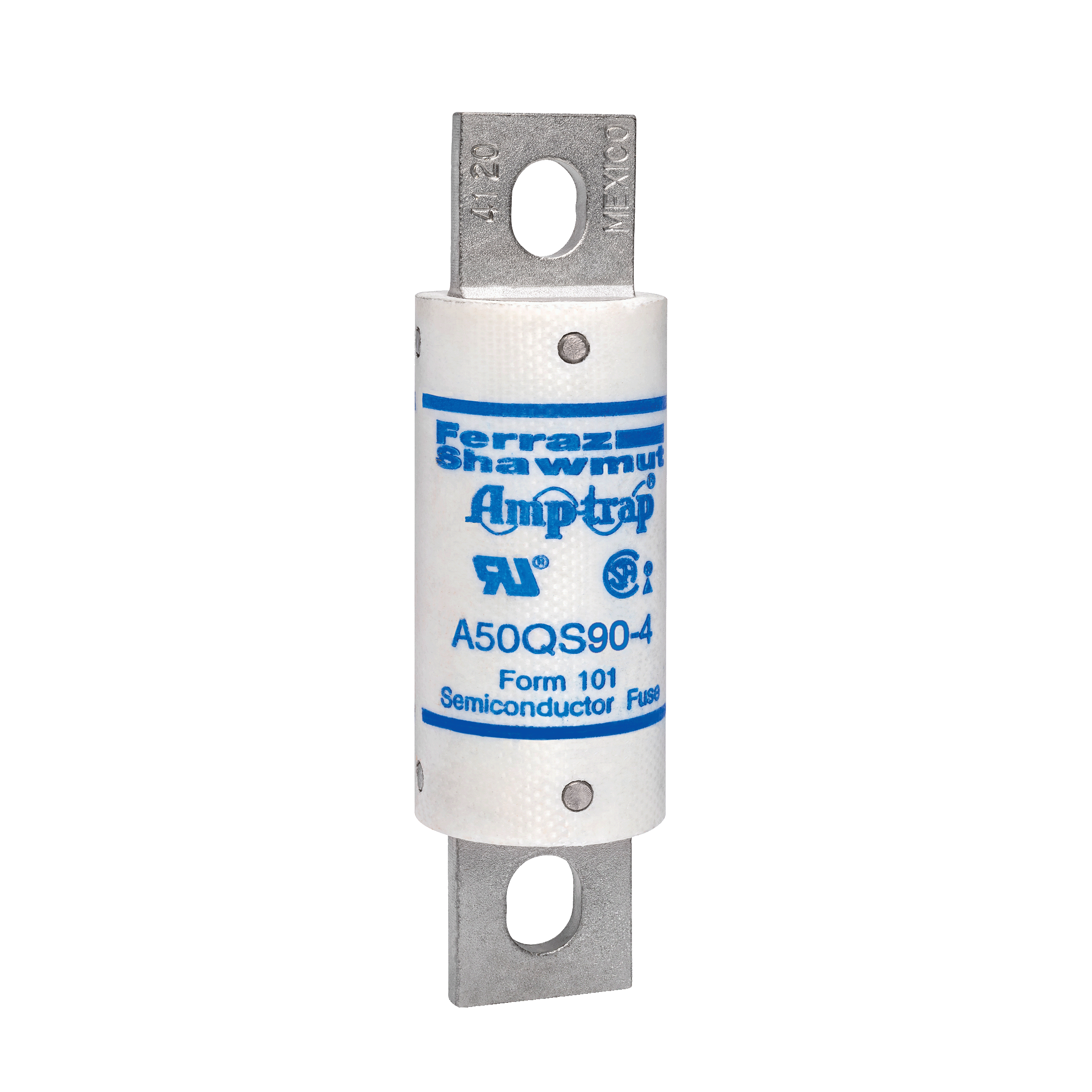

High Speed Fuse Amp-Trap® A50QS 500VAC 500VDC 90A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50QS90-4 | Electrozad South Part # 398311
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features ... lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today...s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Technical Information

Amperage
90 A
Applications
Protection of 500 V or Less Motor Drives, UPS, Inverters etc
Connection Type
Blade
Contact Material
Tin Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
200 kA at 500 VAC, 87 kA at 500 VDC
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
500 V
Rated Voltage DC
500 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
North American, Current-Limiting, Fast-Acting, High Speed
Voltage
500 V

Packaging

Package Qty
20

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001947637
Construction
GMG
GTIN
30782001947638
Weight
0.25 lb

Dimensions

Diameter
1 in
Length
3.63 in

Certifications & Compliance

Country of Origin
Mexico
