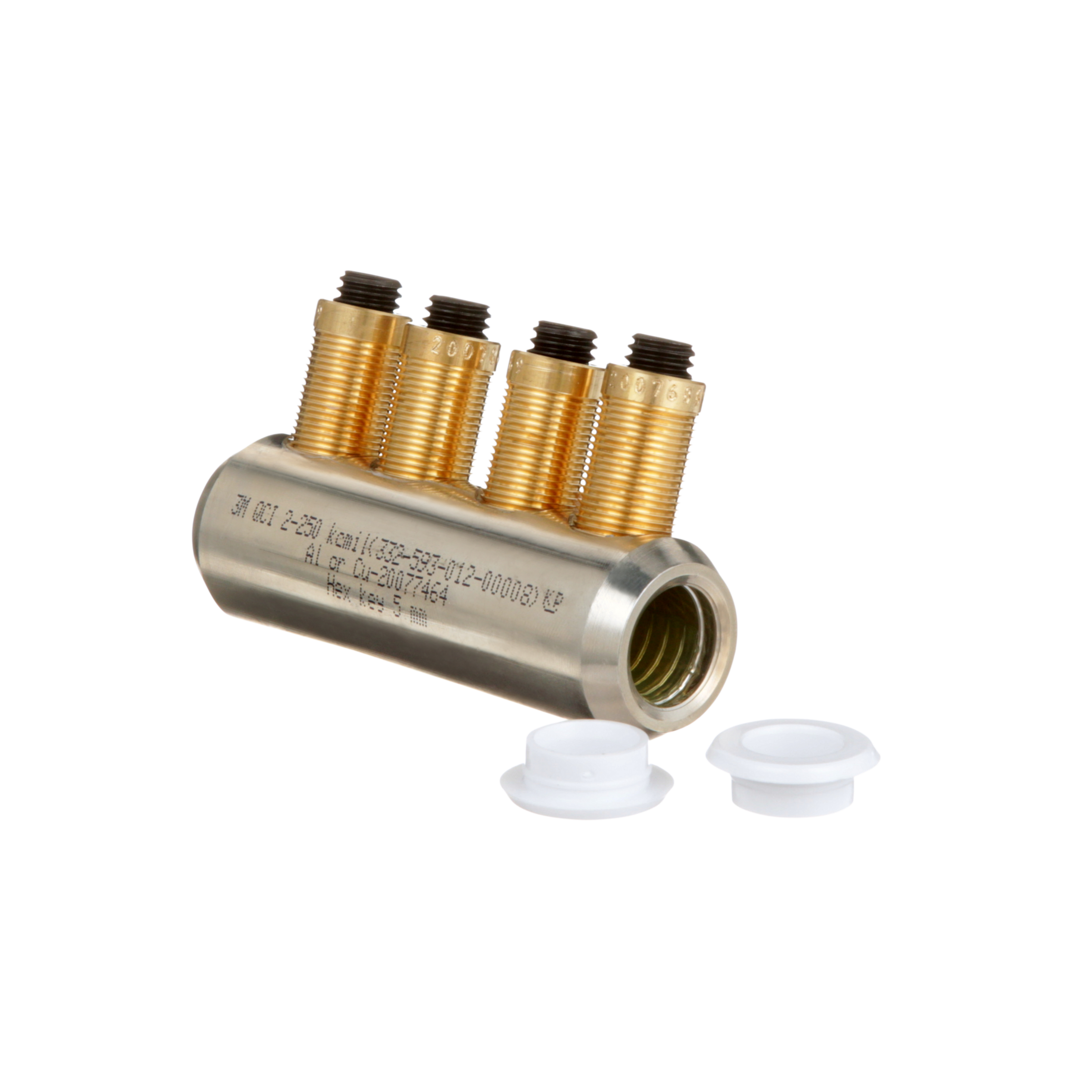

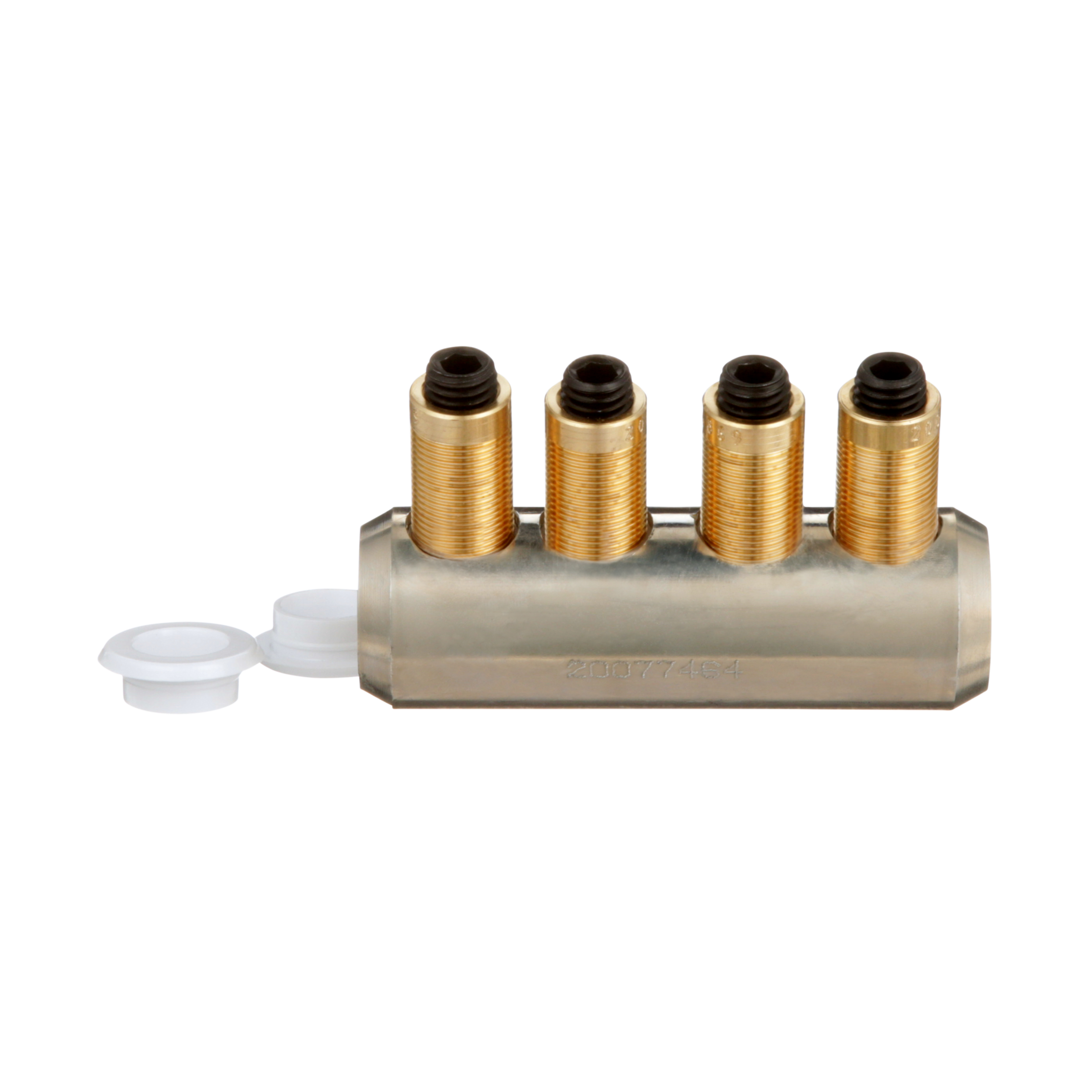

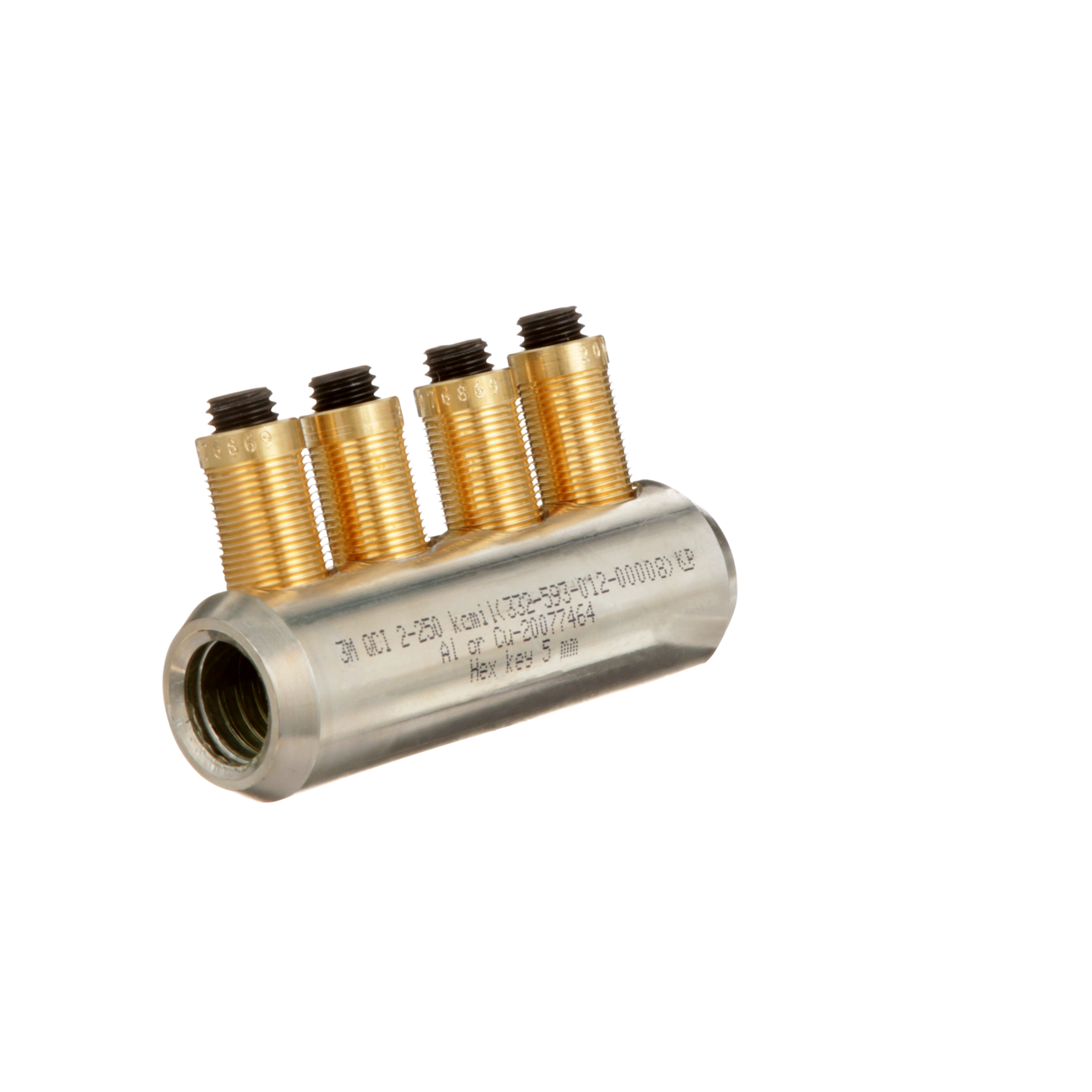

3M™ Mechanical Shearbolt Connector QCI, QCI 2-250, 2 AWG to 250 kcmil

Manufacturer: 3M | Catalog # QCI-2-250 | Electrozad South Part # 398149
$201.14 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
3M™ Mechanical Shearbolt Connectors offer easy installation without crimp tools or dies. This connector covers a large range of sizes, from 1000 to 1250 kcmil. It can be used with copper or aluminum conductors. Centering rings are provided for smaller conductors. 3M™ Mechanical Shearbolt Connectors are designed to shear off just below the outer surface of the connector body to eliminate the need to file. These connectors can be used for applications up to 46 kV and can be packed in a kit with 3M™ Splices QS-III or purchased separately.

Technical Information

Conductor Size
2 AWG - 250 kcmil
Conductor Type
Copper or Aluminum
Material
Aluminum
Max Voltage
35 kV
Temperature Rating
105 degrees C
Type
In-Line, Mechanical

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128585375
GTIN
00051128585375
Product Type
Connector

Dimensions

Outside Diameter
1.1 in
