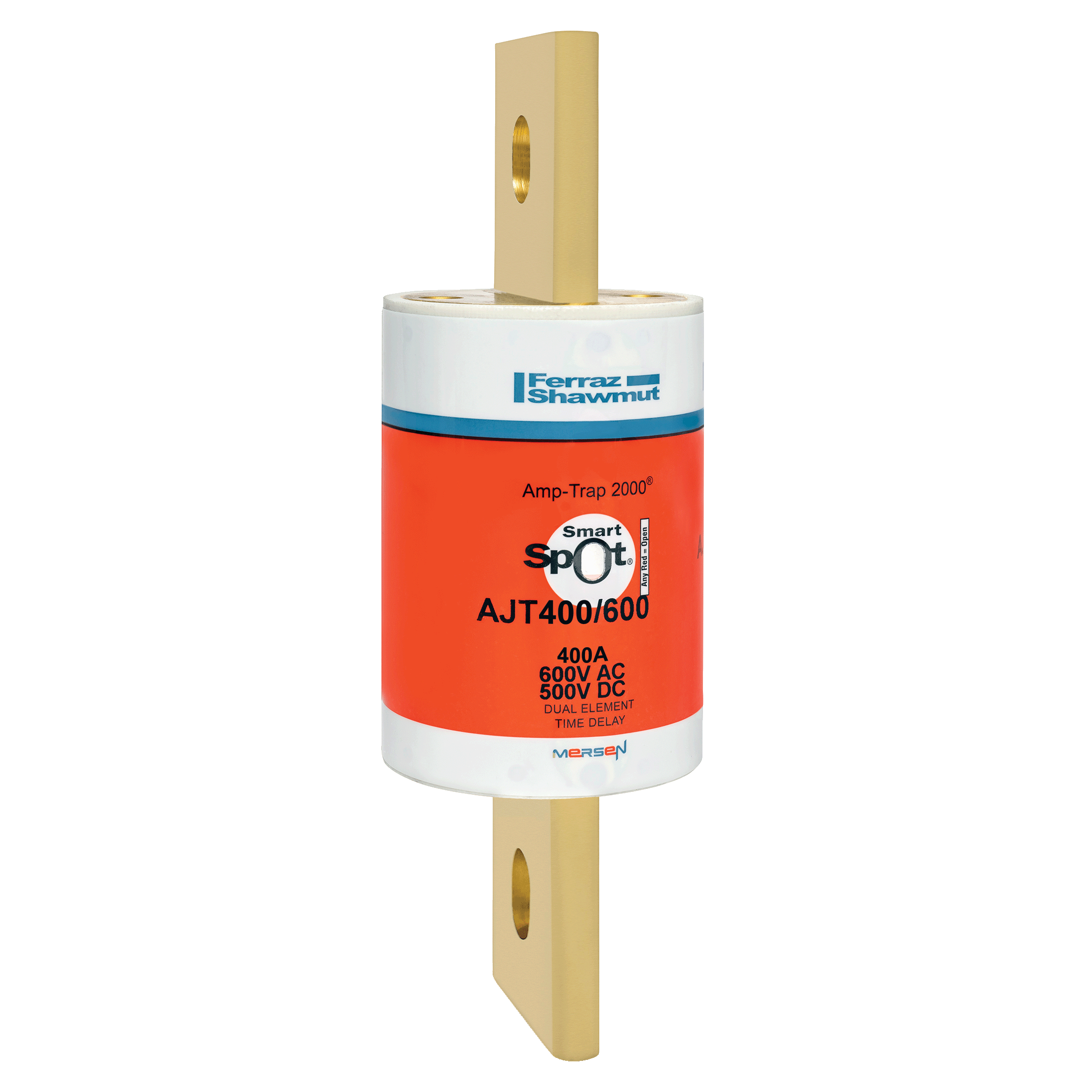

Reducer Fuse AJT - Class J - Time-delay 600VAC 500VDC 400A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # AJT400/600 | Electrozad South Part # 395491
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
AJT Reducer Fuses are a safe permanent solution for decreasing your current rating without using a fuse reducer which are designed and list for temporary use only. These reducer fuses provide the same trusted protection levels as a traditional AJT fuses but in a larger body.

Technical Information

Amperage
400 A
Connection Type
Blade
Frequency
50/60 Hz
Fuse Class
Class J
Insulation Material
GMG
Mounting Type
Bolted,Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
Terminal Material
Brass
Terminal Type
Blade

Packaging

Package Qty
1

General Product Info

12-Digit UPC
0782001463915
GTIN
10782001463912
Weight
3.25 lb

Dimensions

Diameter
2.5 in
Length
8 in
