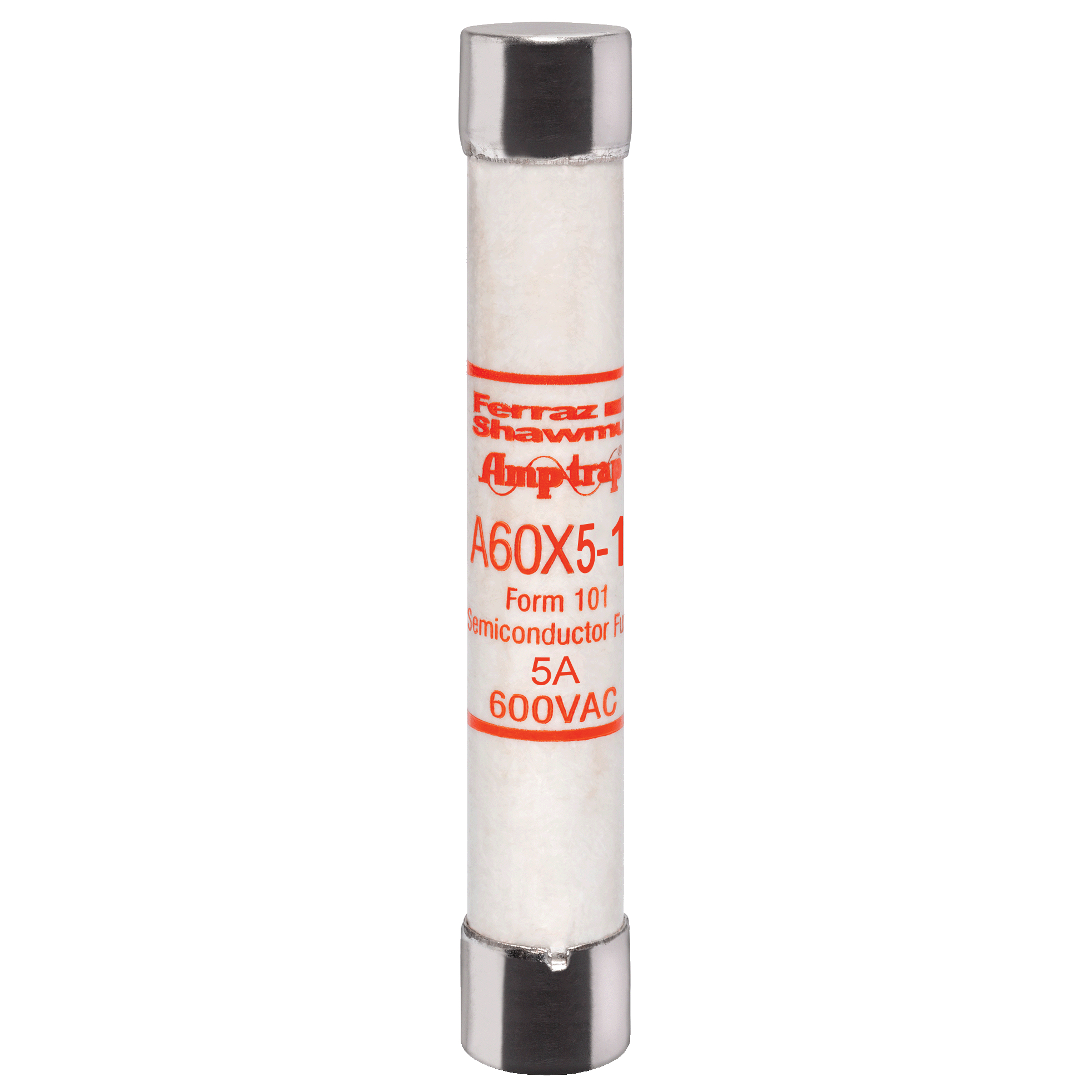

High Speed Fuse Amp-Trap® A60X 600VAC 5A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # A60X5-1 | Electrozad South Part # 39545
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
A60X Amp-Trap® Form 101 high speed fuses are popular for the protection of higher voltage heavy rectifiers such as traction rectifiers. They can carry long sustained overloads common with heavy duty apparatus. 700A through 2000A sizes are of compact, hockey-puck design, able to provide high power protection in a small space.

Technical Information

Amperage
5 A
Applications
Protection of heavy traction and electro-chemical as well as rectifiers and other heavy-duty equipment
Connection Type
Ferrule
Frequency
50/60 Hz
Insulation Material
PolyTube
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
600 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Round Style
Voltage
600 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001943394
GTIN
30782001943395
Weight
0.15 lb

Dimensions

Diameter
0.81 in
Length
5 in

Certifications & Compliance

Country of Origin
Mexico
