SPD - Type 1 ST-XR Series 120V Single Phase LED Ind

Manufacturer: Ferraz Shawmut Mersen | Catalog # STXR120P05 | Electrozad South Part # 394896
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

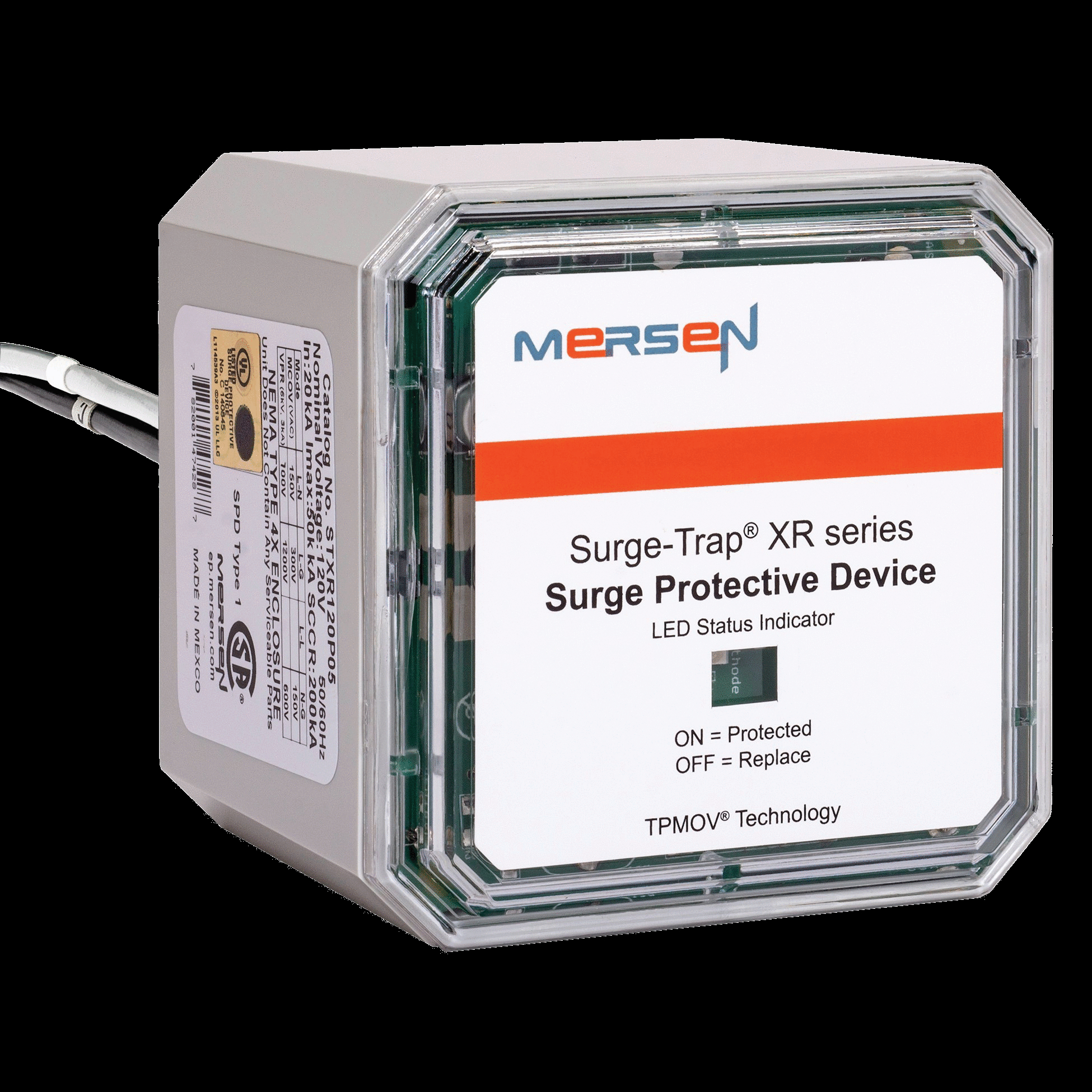

The most popular range in the STX series offering, the Surge-Trap® Type 1 STXR meets requirements for UL1449 4th Edition and is ideal for the replacement of obsolete surge arrestors. The STXR Series SPDs feature TPMOV® technology inside, making them the safest product available. With a small, compact design and line or load installation flexibility, the STXR series is the perfect fit for branch panel and/or individual equipment protection.

Technical Information

Applications
Suitable for any Type 1 or 2 SPD application
Current Type
AC
Frequency
50/60 Hz
Indicator
LED
Max Discharge Current
50 kA
Max Operating Temperature
85 degrees C
Minimum Operating Temperature
-40 degrees C
Mounting Type
Panel Mount
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200000 A
TC Connection
Pre-wired with 3 ft 12 AWG conductors

Packaging

Package Qty
1

Manufacturer Information

Brand
Mersen

General Product Info

12-Digit UPC
782001474270
GTIN
00782001474270
Housing Material
Polycarbonate
Weight
1.5 lb

Dimensions

Height
3.35 in
Length
3.25 in
Width
3.35 in

Certifications & Compliance

Country of Origin
Mexico
