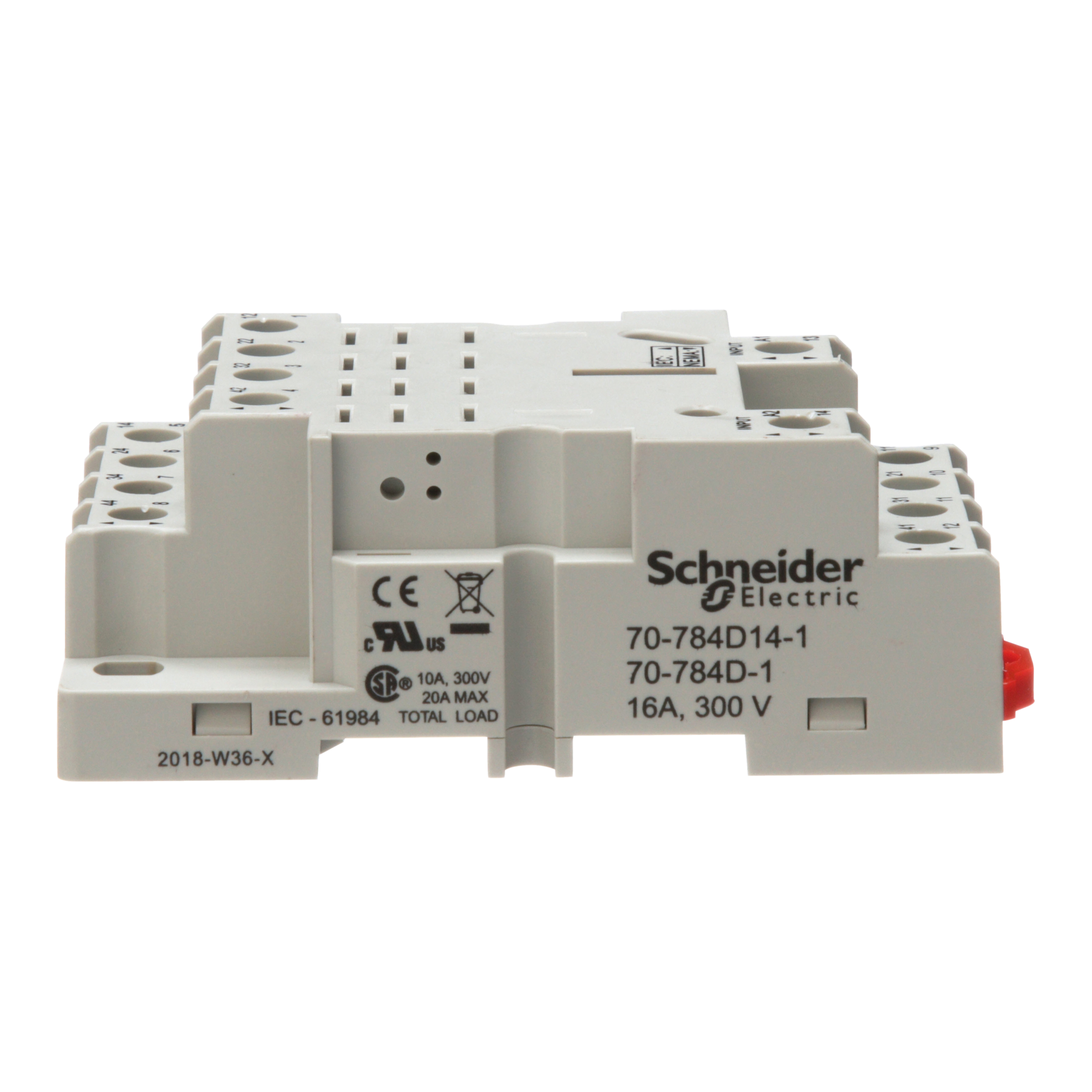

Image thumbnail 1

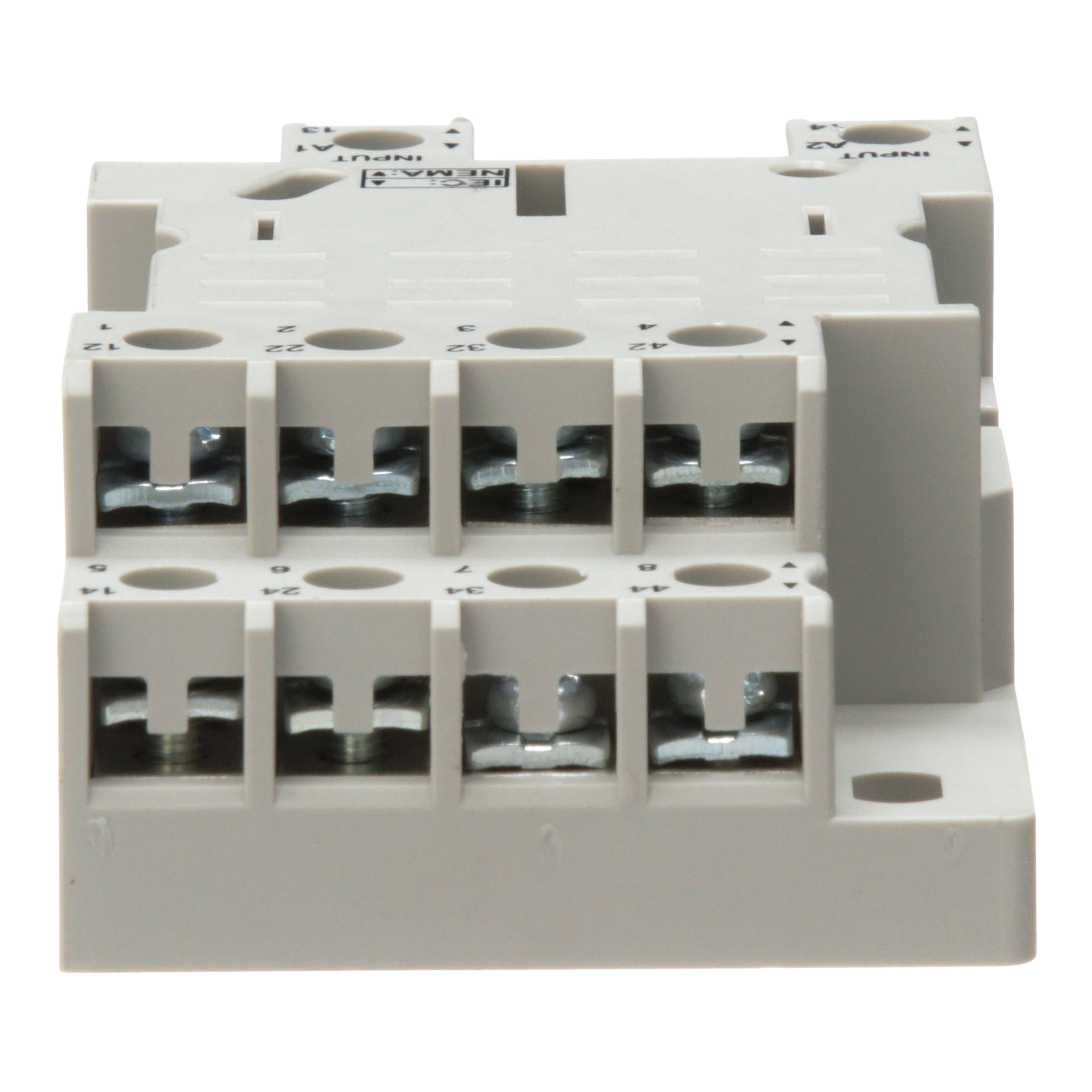

Image thumbnail 2

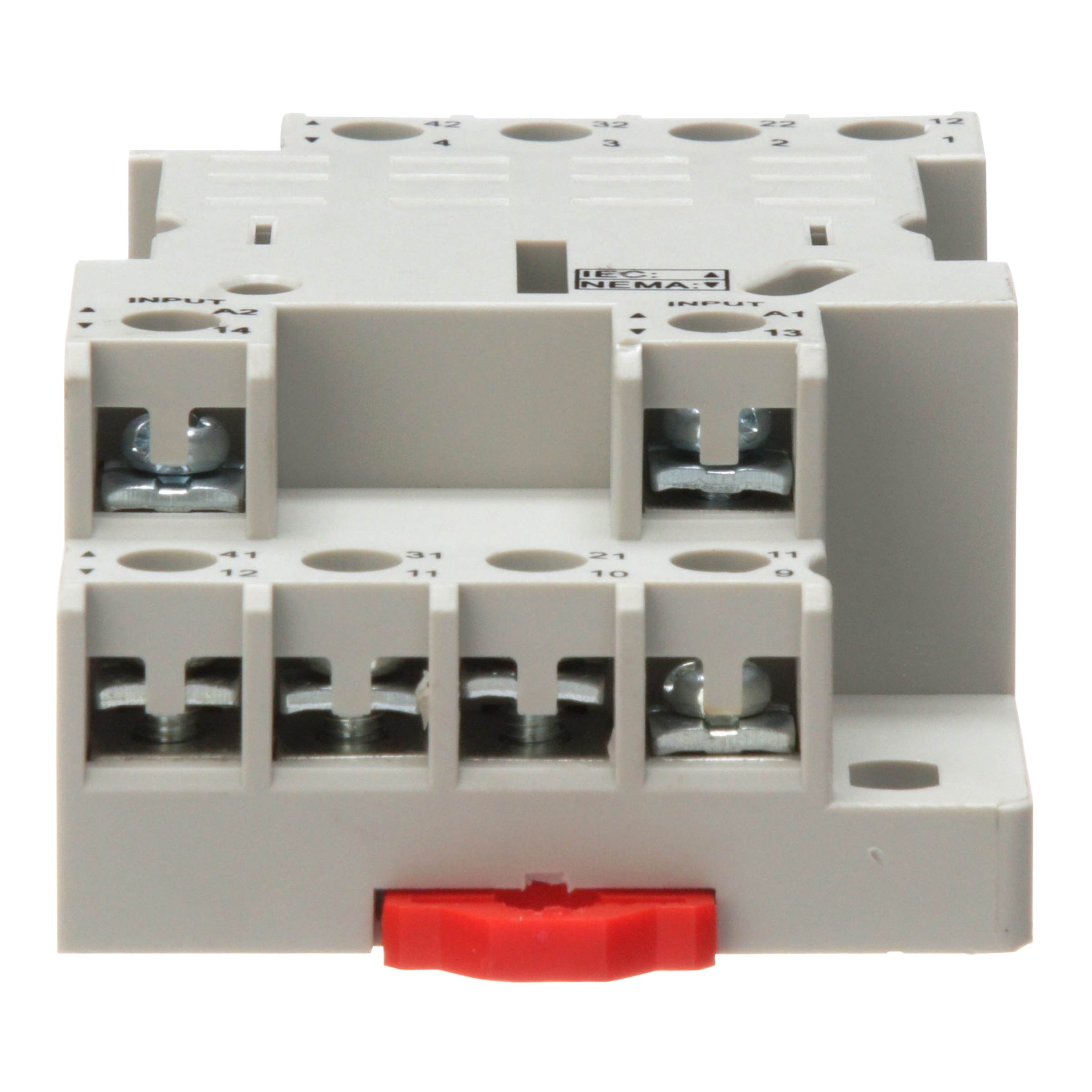

Image thumbnail 3

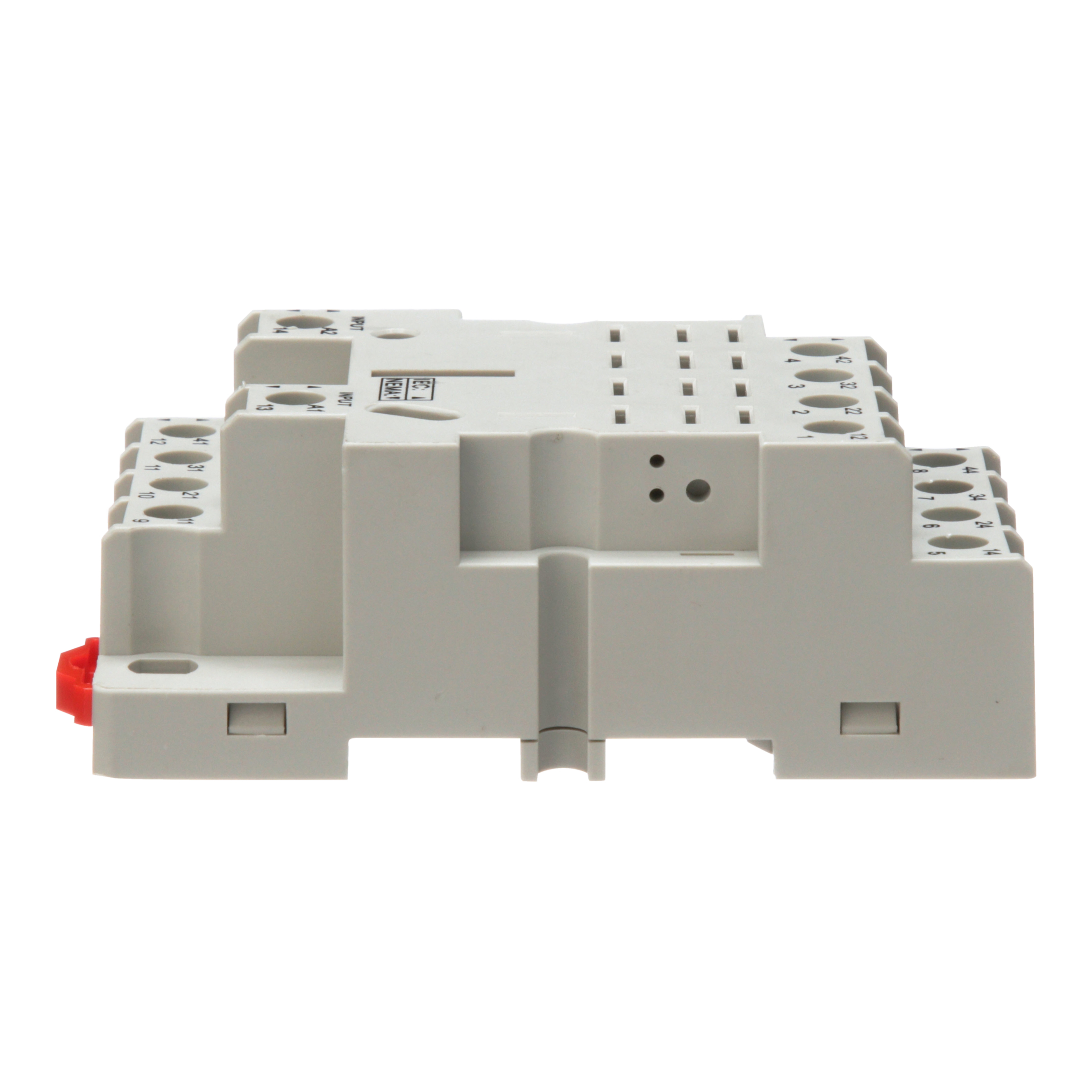

Image thumbnail 4
To:
CC:

SOCKET, SE RELAYS GENERAL PURPOSE RELAY ACCESSORY, 4PDT, 16A, 300 V, 14 PINS, SCREW CLAMPING TERMINAL, 784 SERIES

Manufacturer: Schneider Electric | Catalog # 70-784D14-1 | Electrozad South Part # 394719
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Legacy general purpose relay series accessory , optional socket for 784 series relays with 4PDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Technical Information

Current
16 A
Line Rated Current
16 A
Net Weight
62 g
Number of Terminations
14
Operating Temperature
-40-55 degrees C
Storage Temperature
-40-105 degrees C
Voltage
300 V

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480278184
GTIN
03606480278181
Weight
62 g

Dimensions

Depth
79.6 mm
Width
50 mm

Certifications & Compliance

Certifications
CE,CSA,UL
Country of Origin
USA
