15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch,

Manufacturer: Leviton Manufacturing | Catalog # 5226 | Electrozad South Part # 394308
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

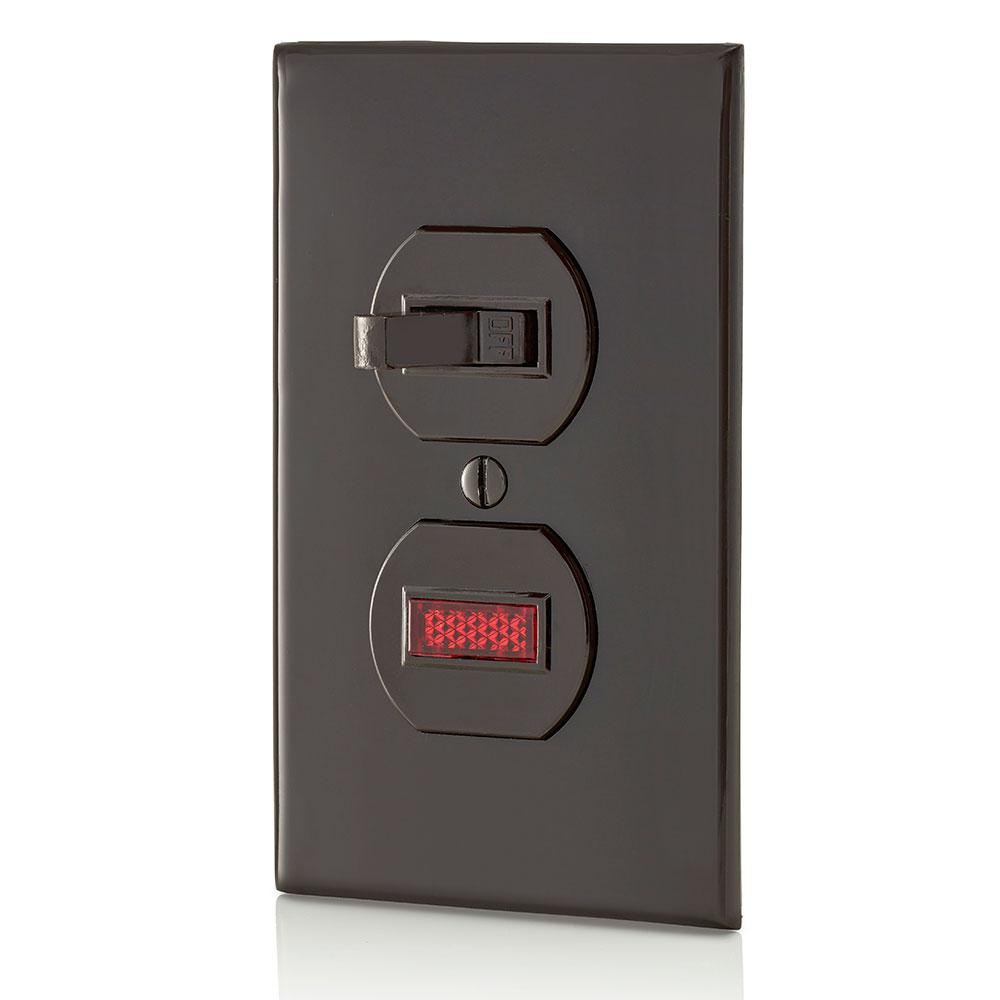

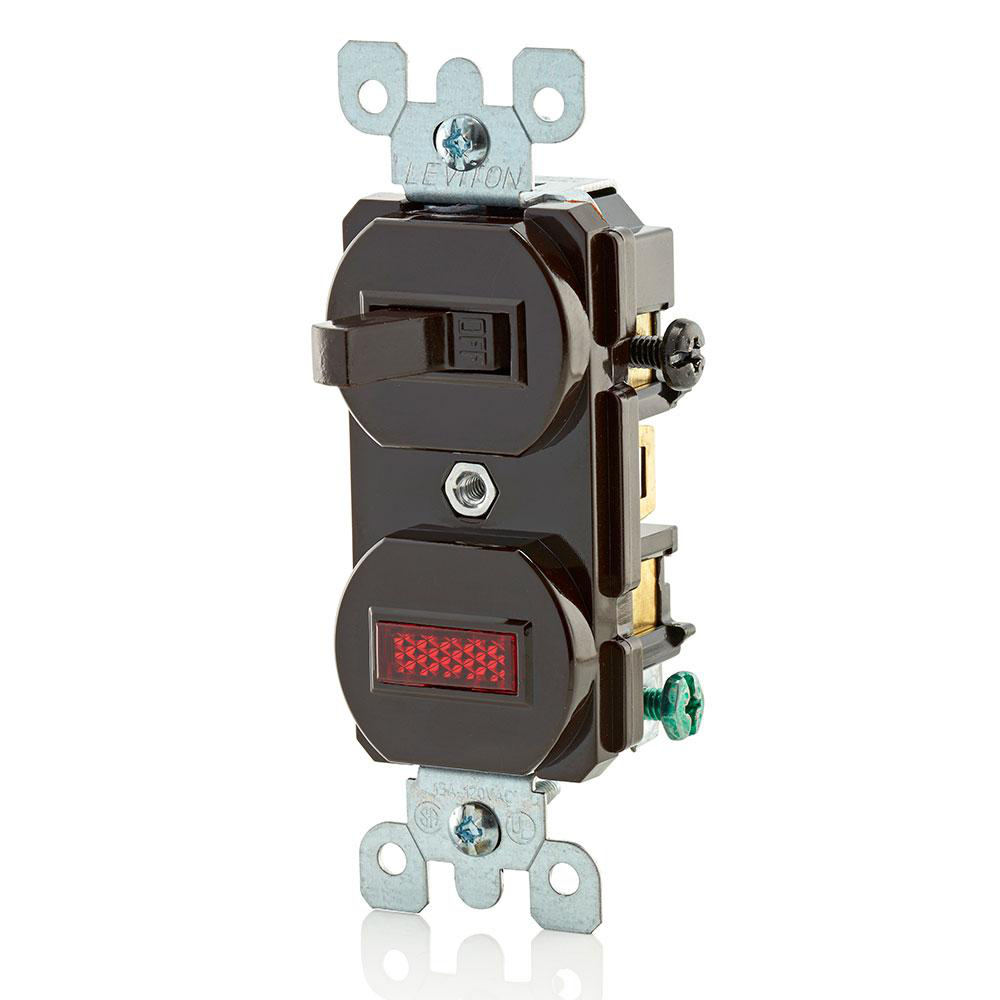

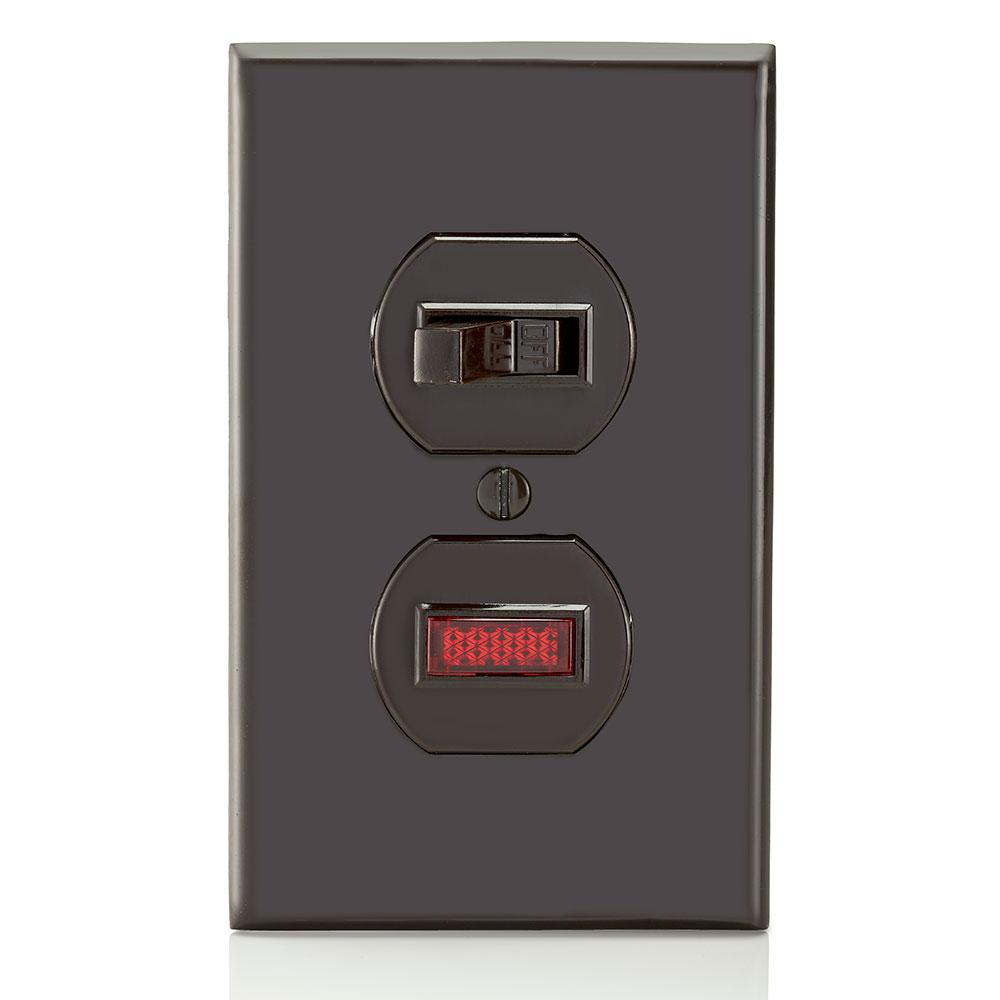

15 Amp, 120 Volt, Duplex Style Single-Pole / Neon Pilot AC Combination Switch, Commercial Grade, Non-Grounding, Side Wired - Brown

Technical Information

Actuator
Toggle
Amperage
15 A
Applications
Commercial
Connection Type
Side Wired
Contact Rating
120 V
Grounding
Non-Grounding
Material
Thermoplastic,Thermoplastic
Mounting Type
Wallplate
NEMA
5-15R,5-15R
Number of Poles
1
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.62 W x 16 D IN
Standard
ANSI (C-73),CSA Certified (C222.2 No.111 152105),CSA Certified (LR-3413),NEMA (WD-1, WD-6),NOM Certified (057),UL 20,UL Listed (E-7458)
TC Connection
Side Wired
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex Style Combination Switch,Duplex Style Combination Switch
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL COMBINATION DEVICES

General Product Info

12-Digit UPC
078477226803
Color
Brown
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477226803
Product Type
Switch/Pilot Combo

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
