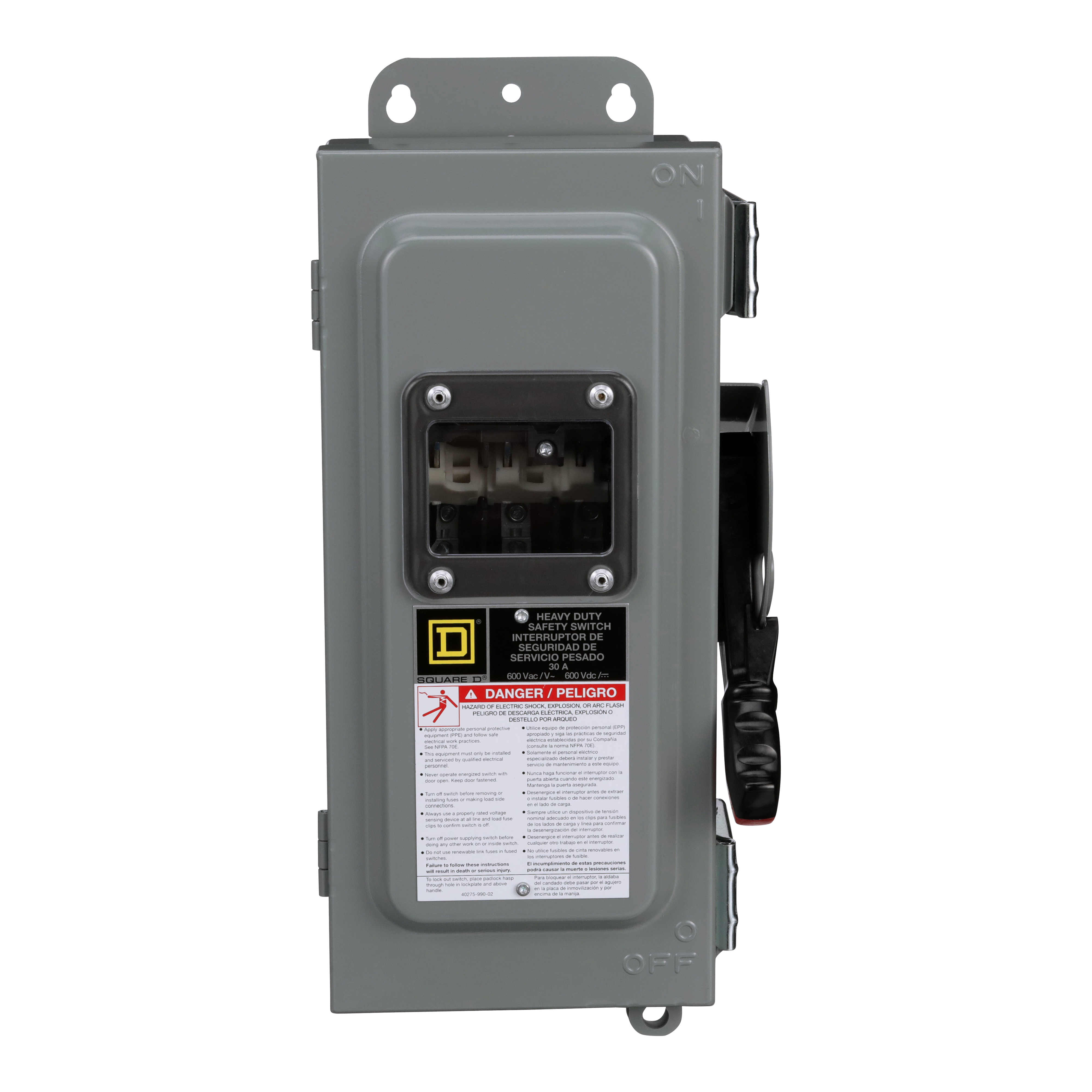

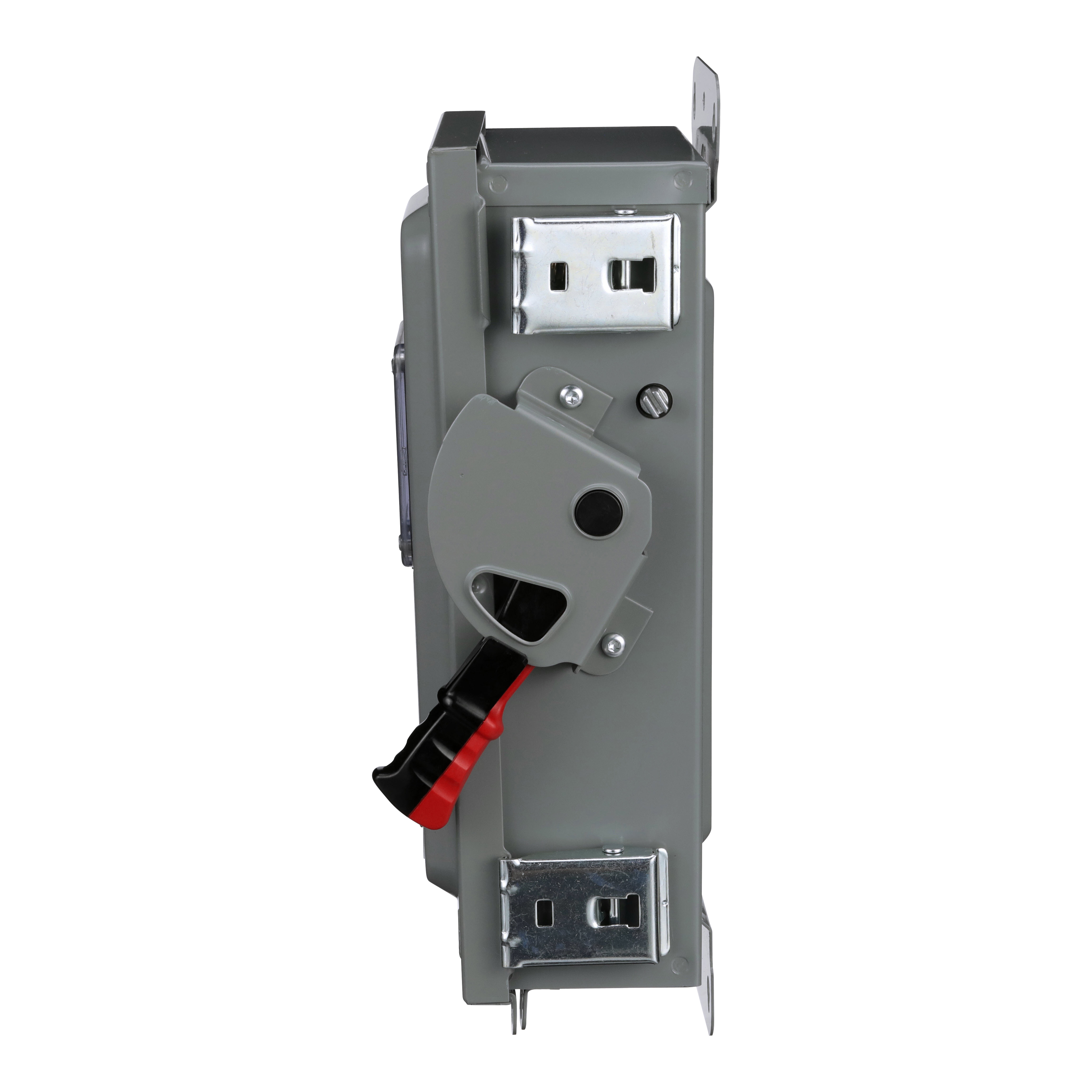

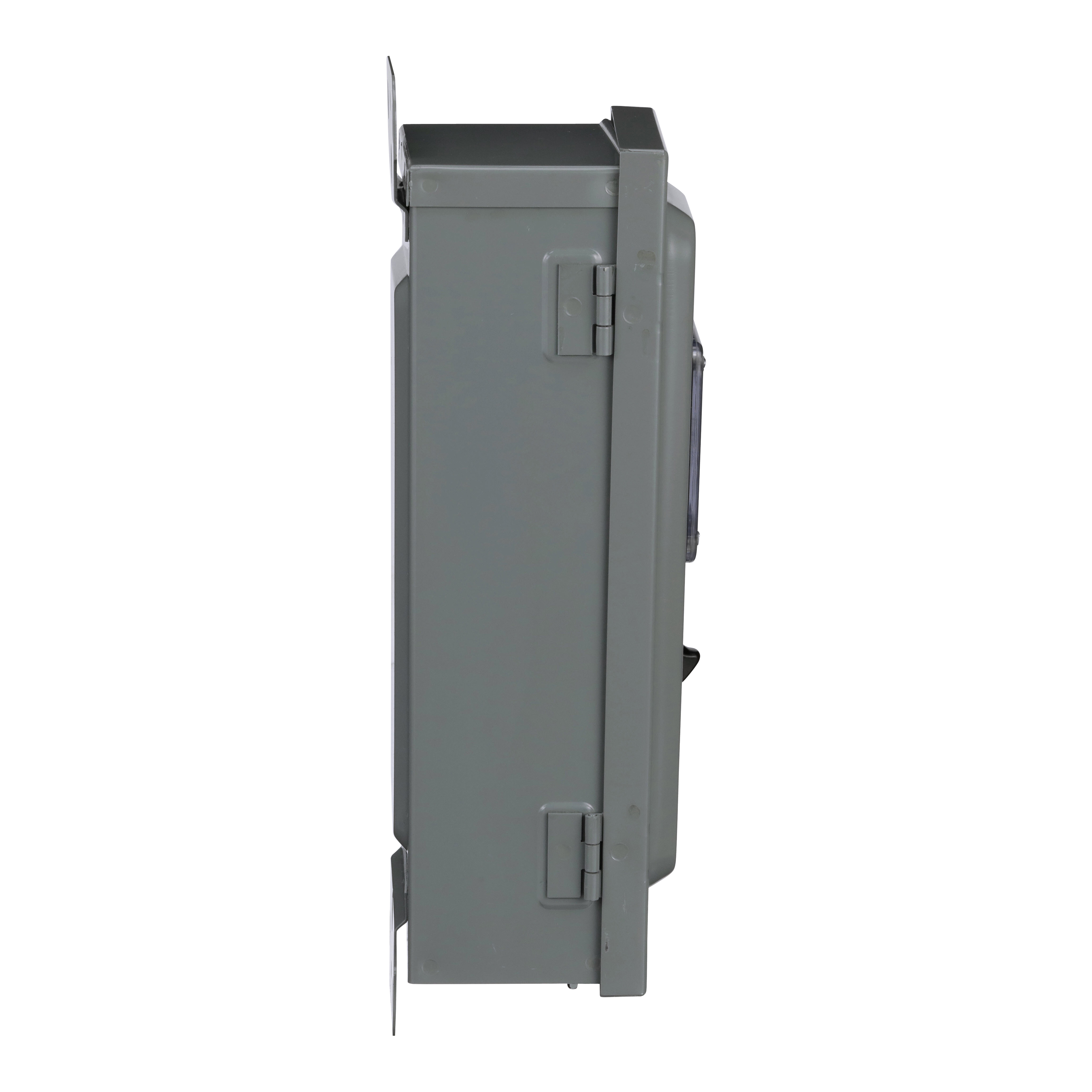

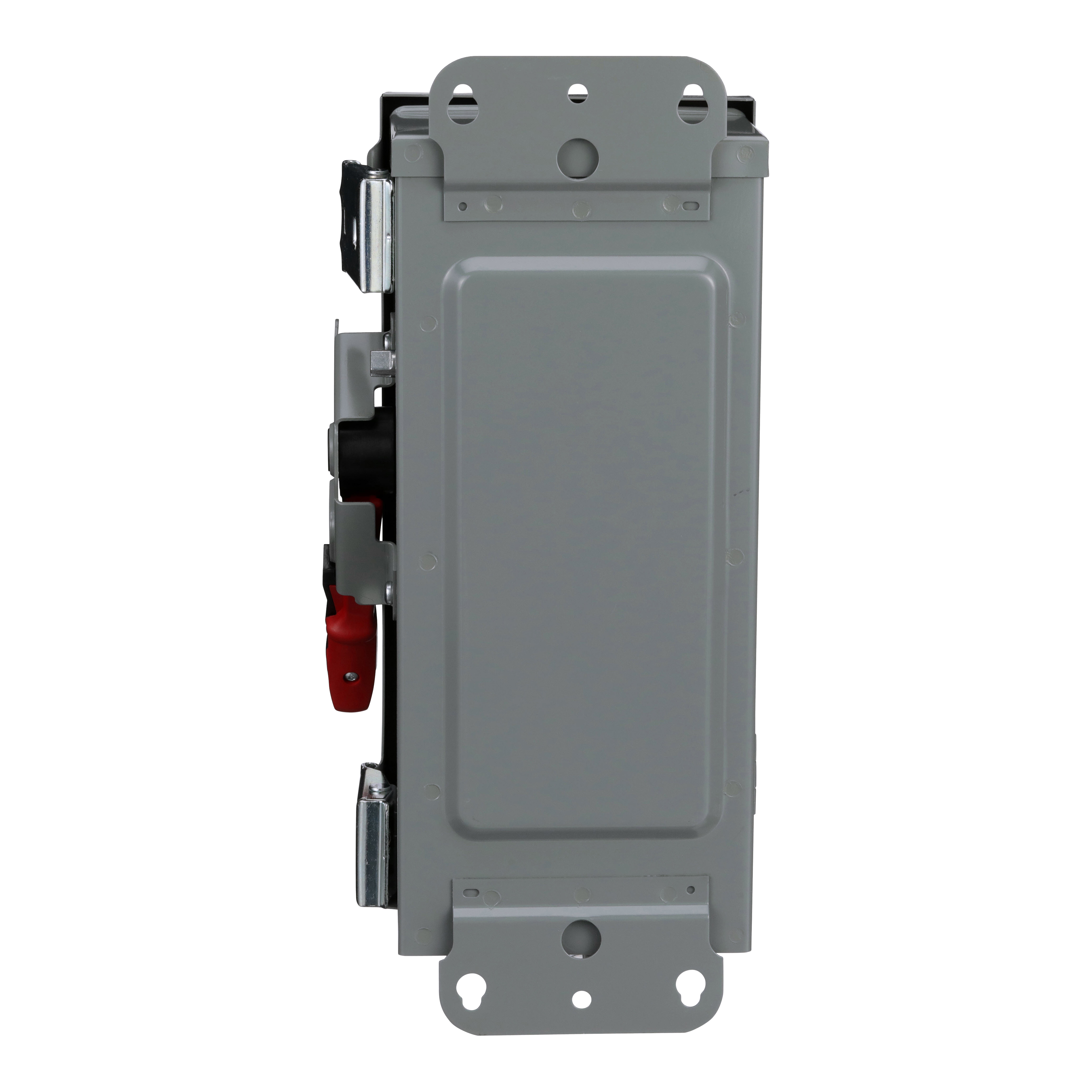

Product image for SAFETY SWITCH, HEAVY DUTY, NON FUSIBLE, 30A, 3 WIRE, 3 POLE, 30HP, 600V AC/DC, NEMA 12, INTERLOCK KIT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

SAFETY SWITCH, HEAVY DUTY, NON FUSIBLE, 30A, 3 WIRE, 3 POLE, 30HP, 600V AC/DC, NEMA 12, INTERLOCK KIT

Manufacturer: Schneider | Square D | Catalog # HU361AWKEI | Electrozad South Part # 394145
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 G USERS MANUAL URL Technical Drawing
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industria

Technical Information

Applications
HEAVY DUTY
Current
30 A
Duty Rating
Heavy duty
Enclosure
12,3R
Enclosure Material
Stainless Steel
Enclosure Rating
NEMA 3R/12
Line Rated Current
30 A
Material
Galvannealed Steel
Mounting Type
Surface
Net Weight
5 kg
Number of Phases
3
Number of Poles
3
Size
4.96 in
TC Connection
LUGS
Type
Non-fusible disconnect;Single Throw Safety Switch
Voltage
600 V
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
Wire Type
AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901156536
Environmental Conditions
RAINPROOF, SLEET/ICE PROOF AND DUST TIGHT (INDOOR/OUTDOOR)
GTIN
00785901156536
Weight
11.02 lb

Dimensions

Depth
4.96 in
Height
14.6 in
Warranty Length
18 mth
Width
7.55 in

Certifications & Compliance

Certifications
UL Listed File E2875
Country of Origin
USA
