EMPTY PENDANT CONTROL STATION, HARMONY XAC, PLASTIC, YELLOW, 12 CUT OUTS, UL CSA CERTIFIED

Manufacturer: Telemecanique Controls | Catalog # XACA12H7 | Electrozad South Part # 393999
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1

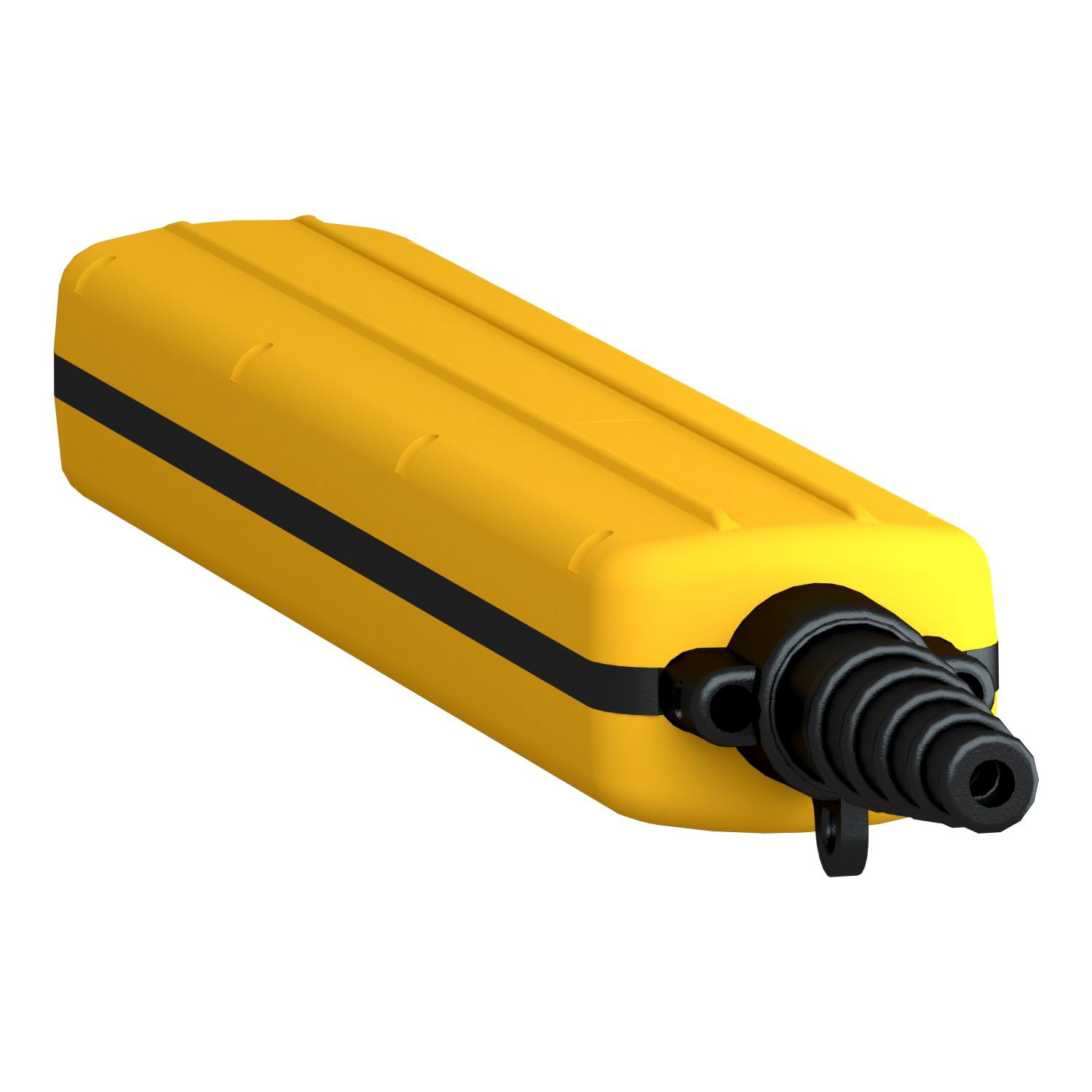

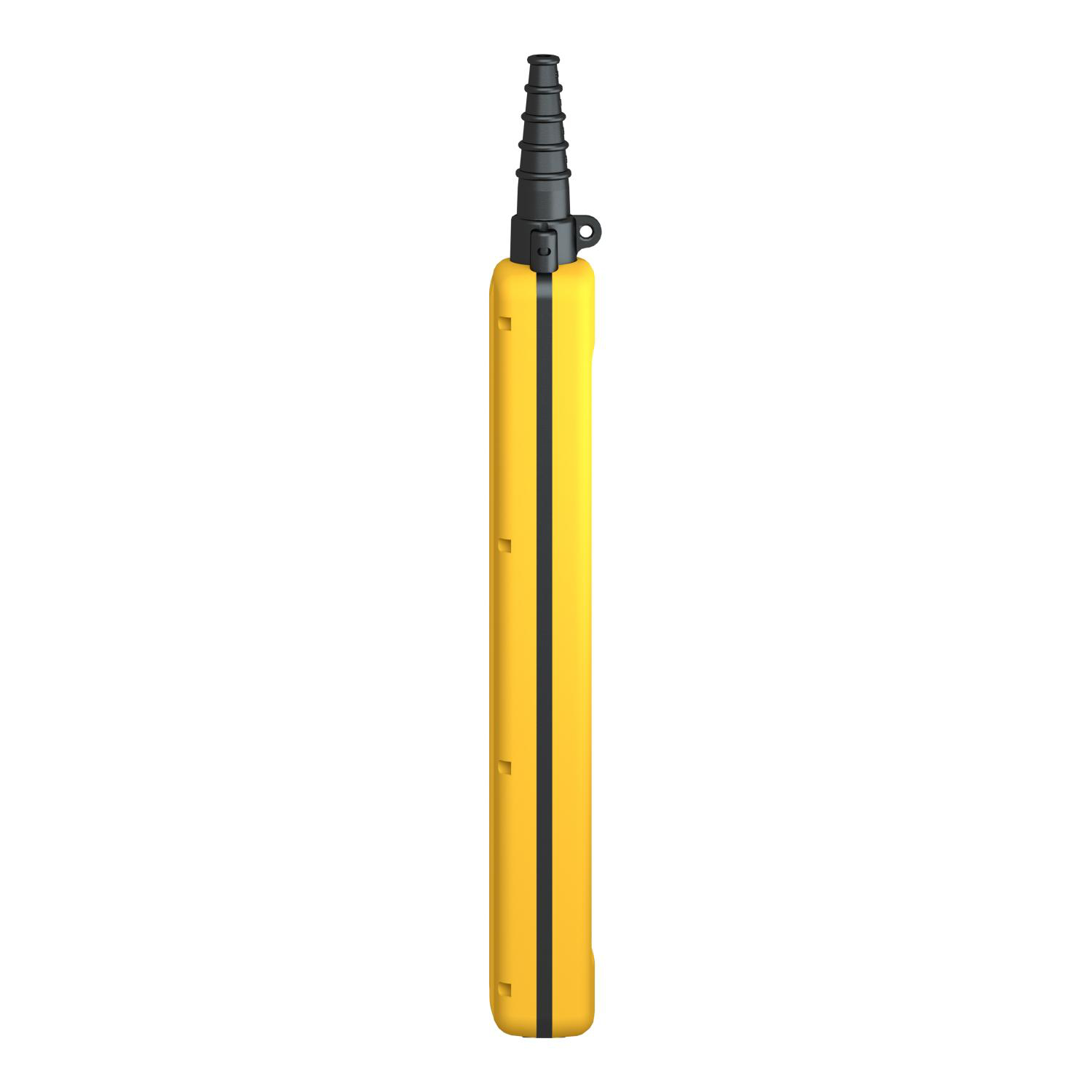

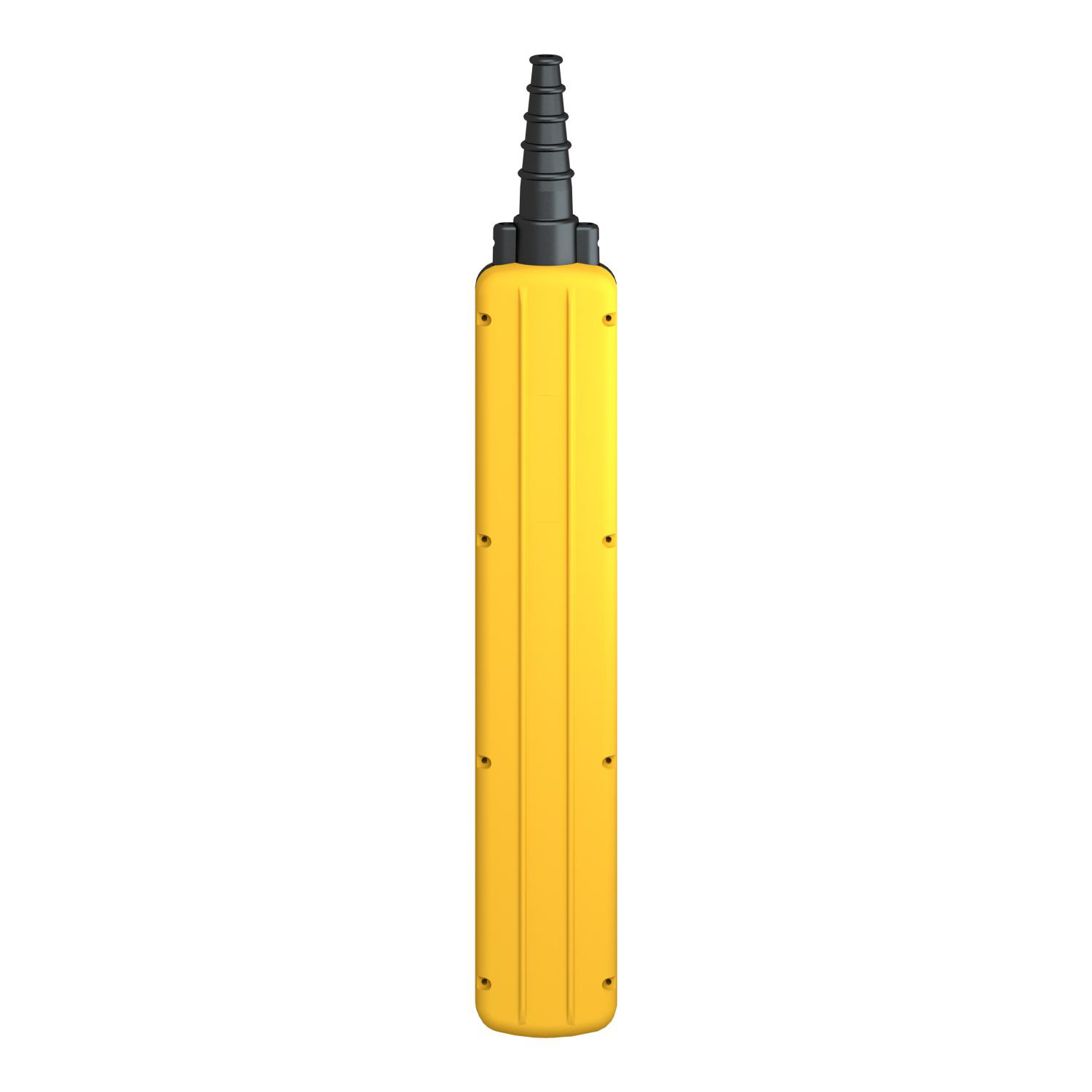

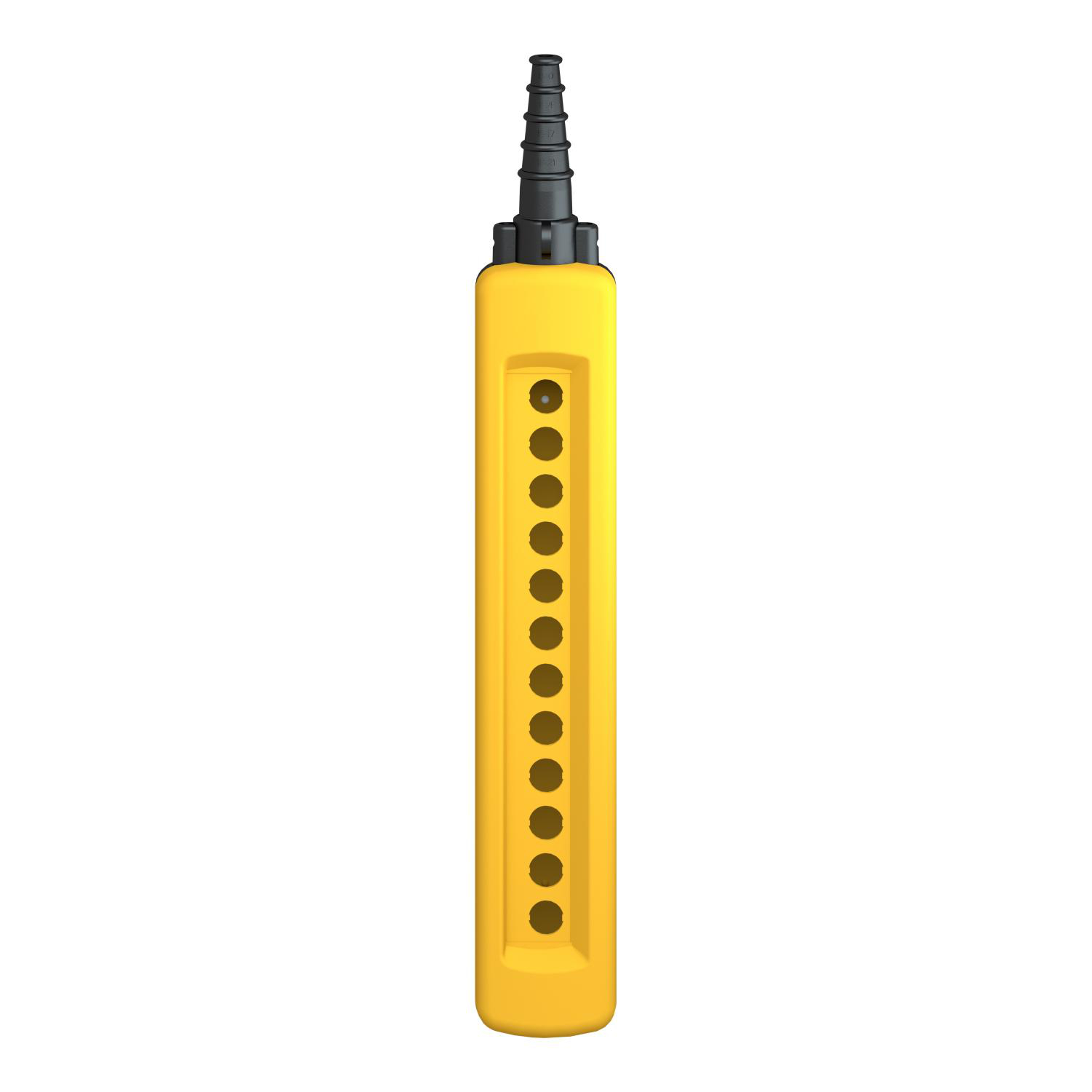

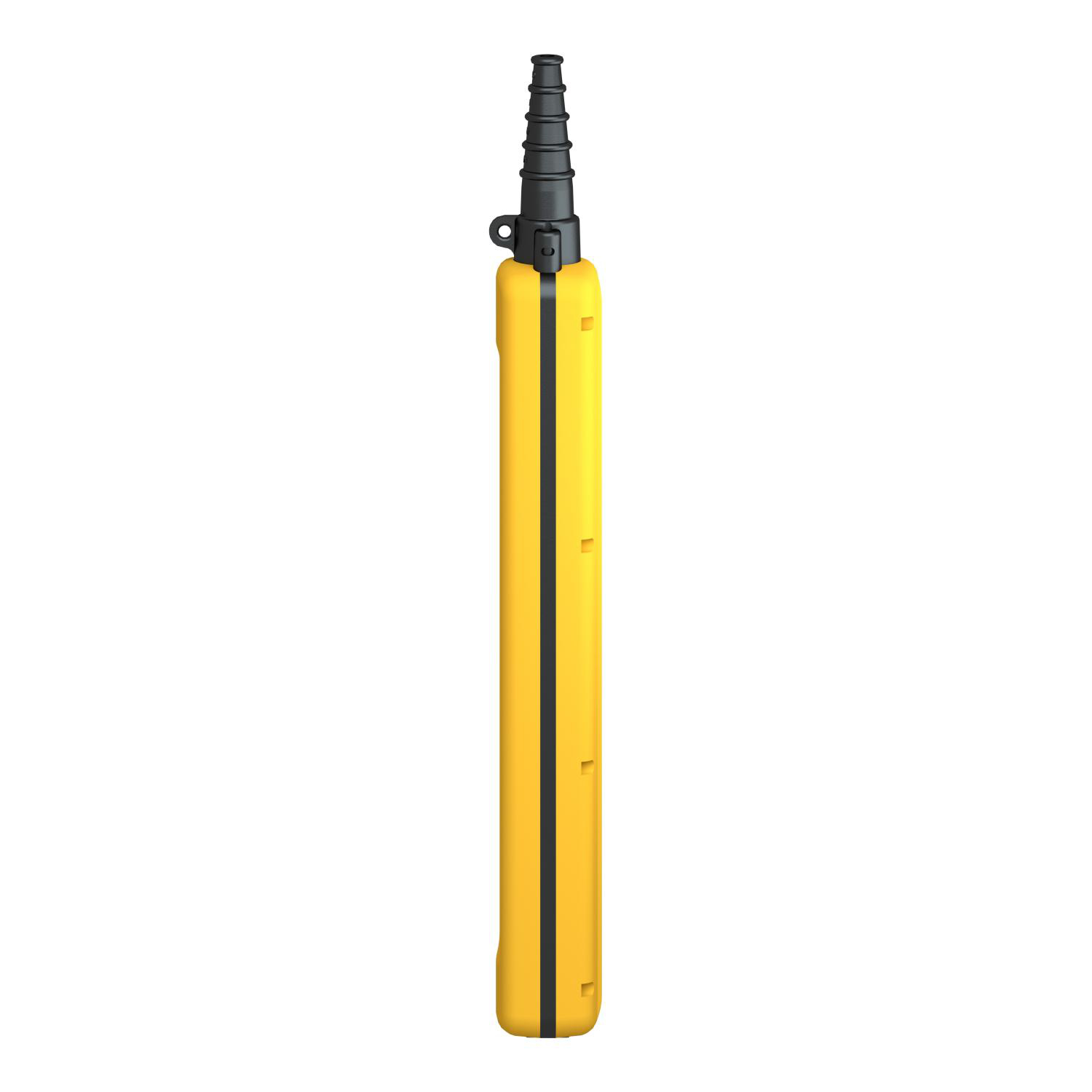

This Harmony XACA12H7 is an empty pendant control station with 12 openings in 1 column for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Technical Information

Applications
XAC PENDANT CONTROL STATION
Cable Entry
8-26 mm
Enclosure
POLYPROPYLENE
Enclosure Material
Polypropylene
Enclosure Type
Empty Enclosure
Material
Polypropylene
Net Weight
1 kg
Operating Temperature
-25-70 Adegrees C
Size
12 HOLE
Standard
CSA C22.2 No 14,EN/IEC 60204-32,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
DOUBLE INSULATED,PENDANT CONTROL STATION

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
389118117672
Color
Yellow
GTIN
03389118117679
Weight
1 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

Certifications
CCC,CSA,GOST,UL
Country of Origin
Czechia
